Heated Seat Control Unit





HEATED SEAT CONTROL UNIT

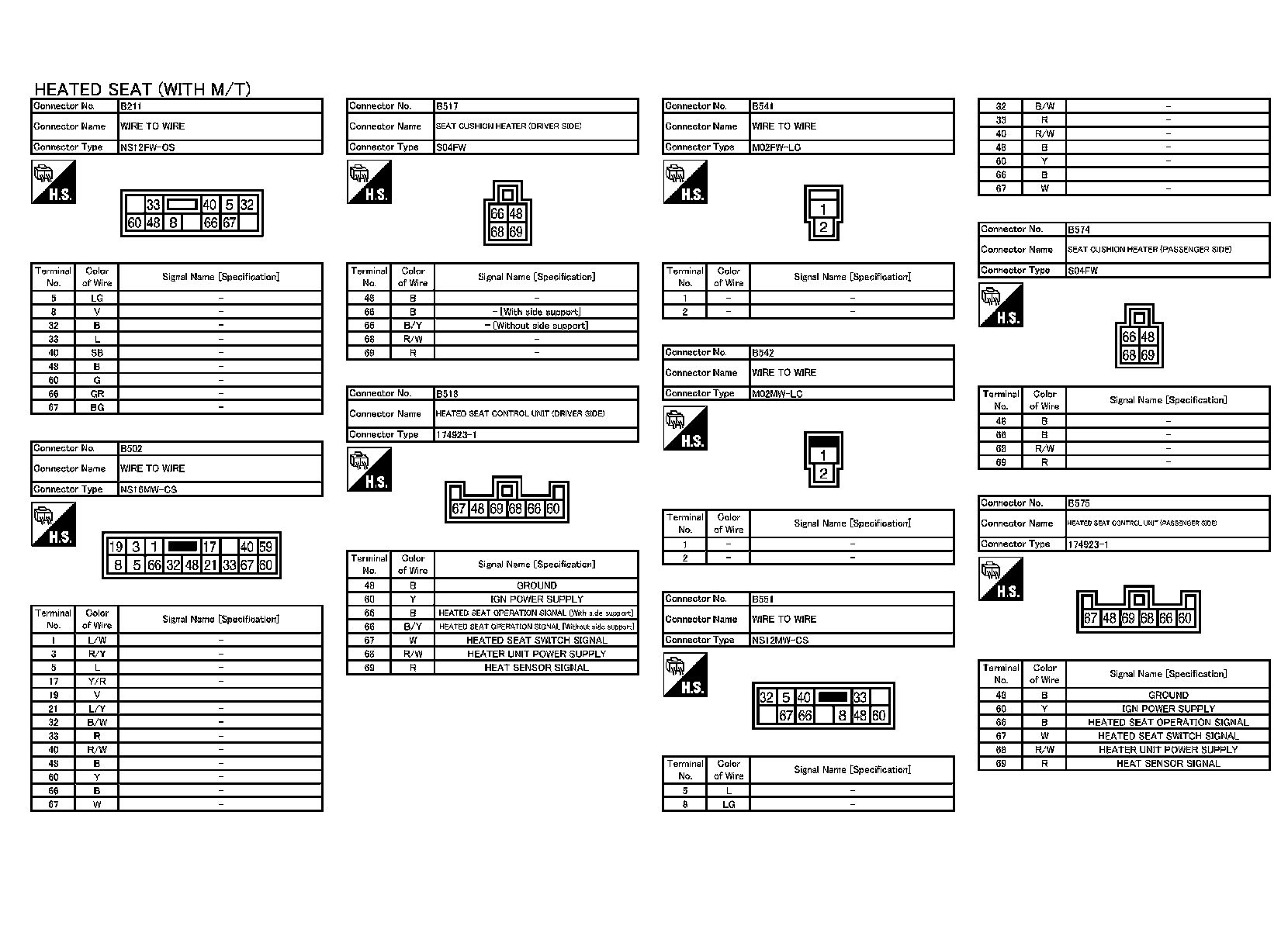

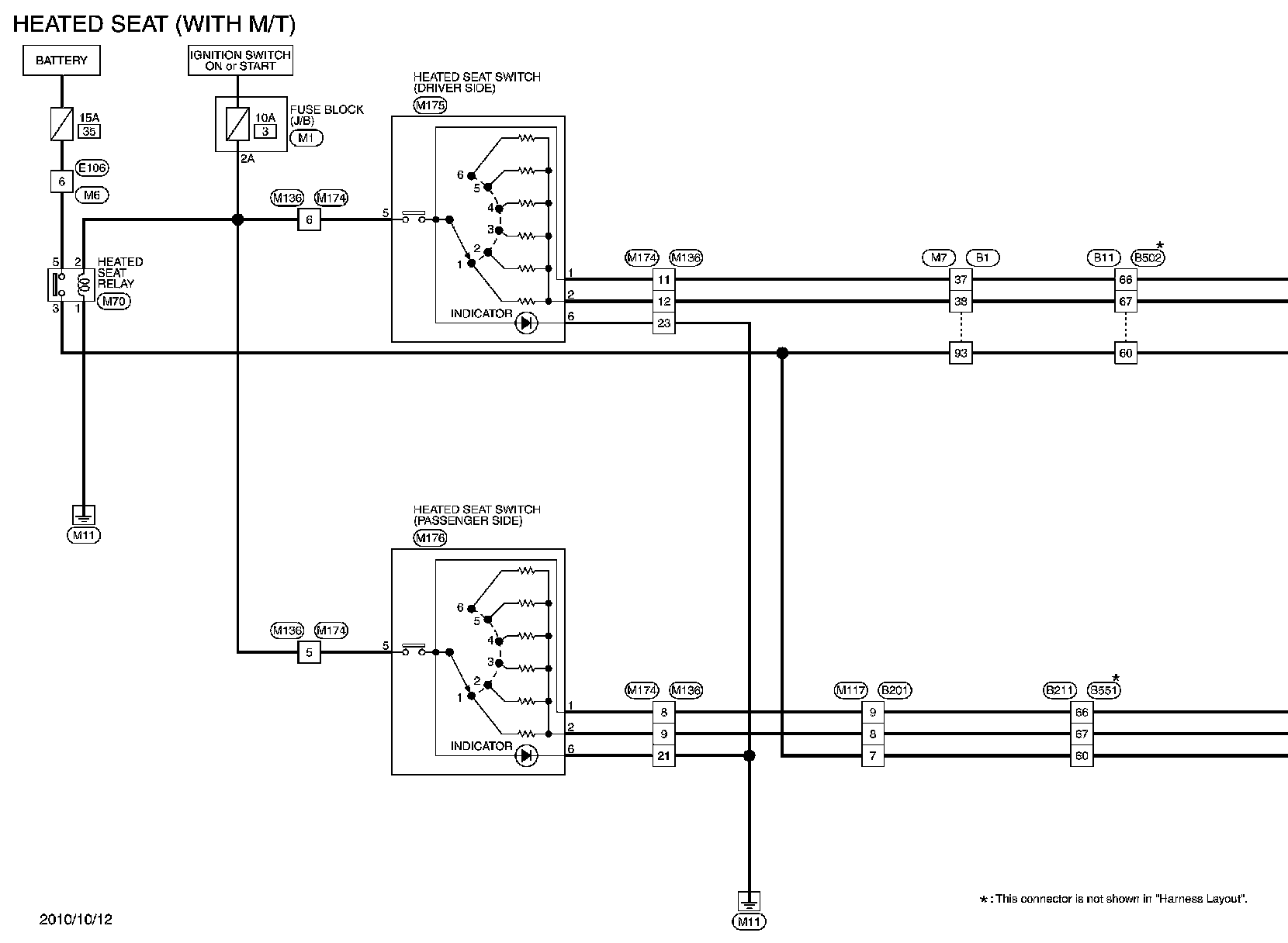

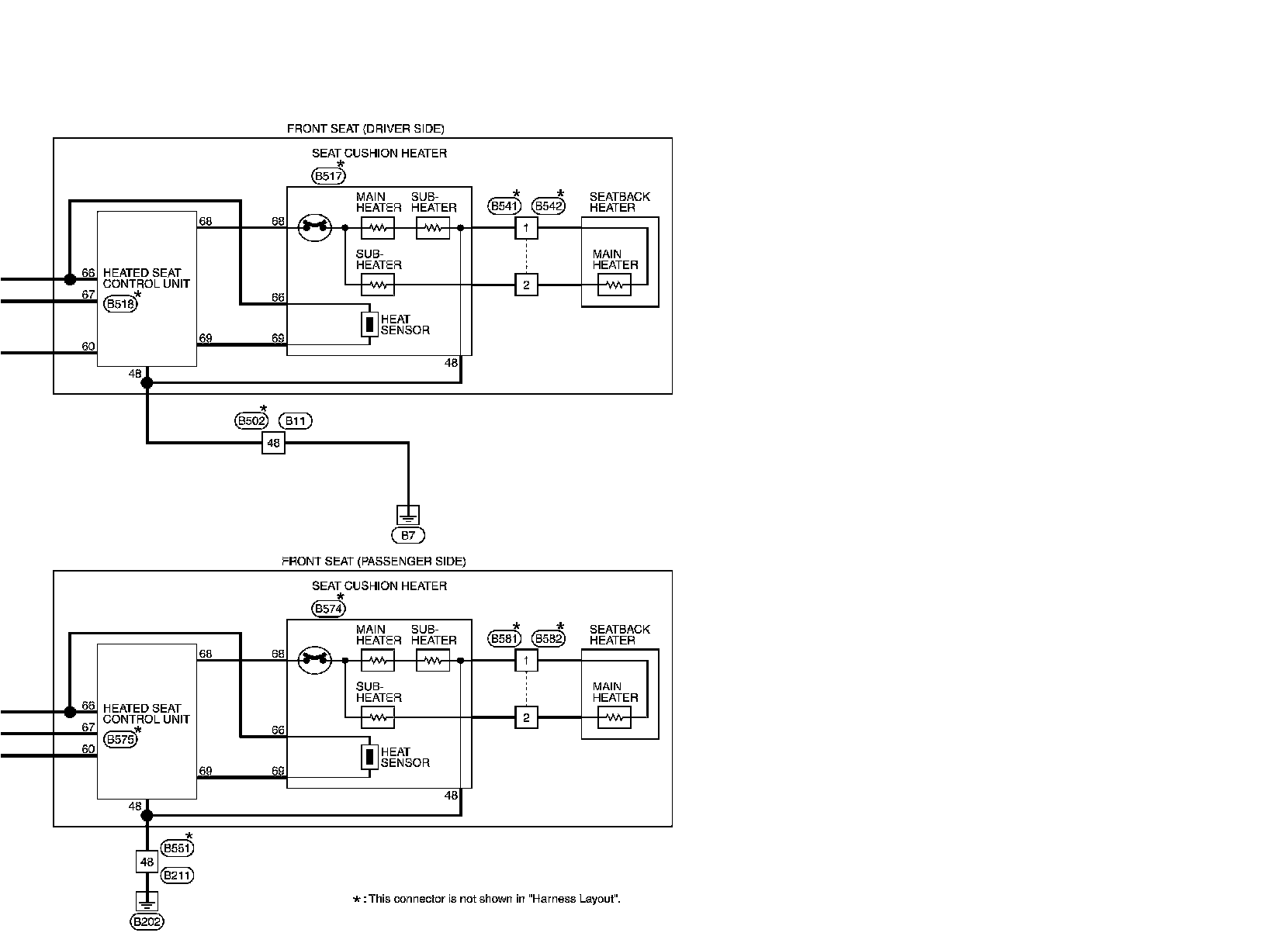

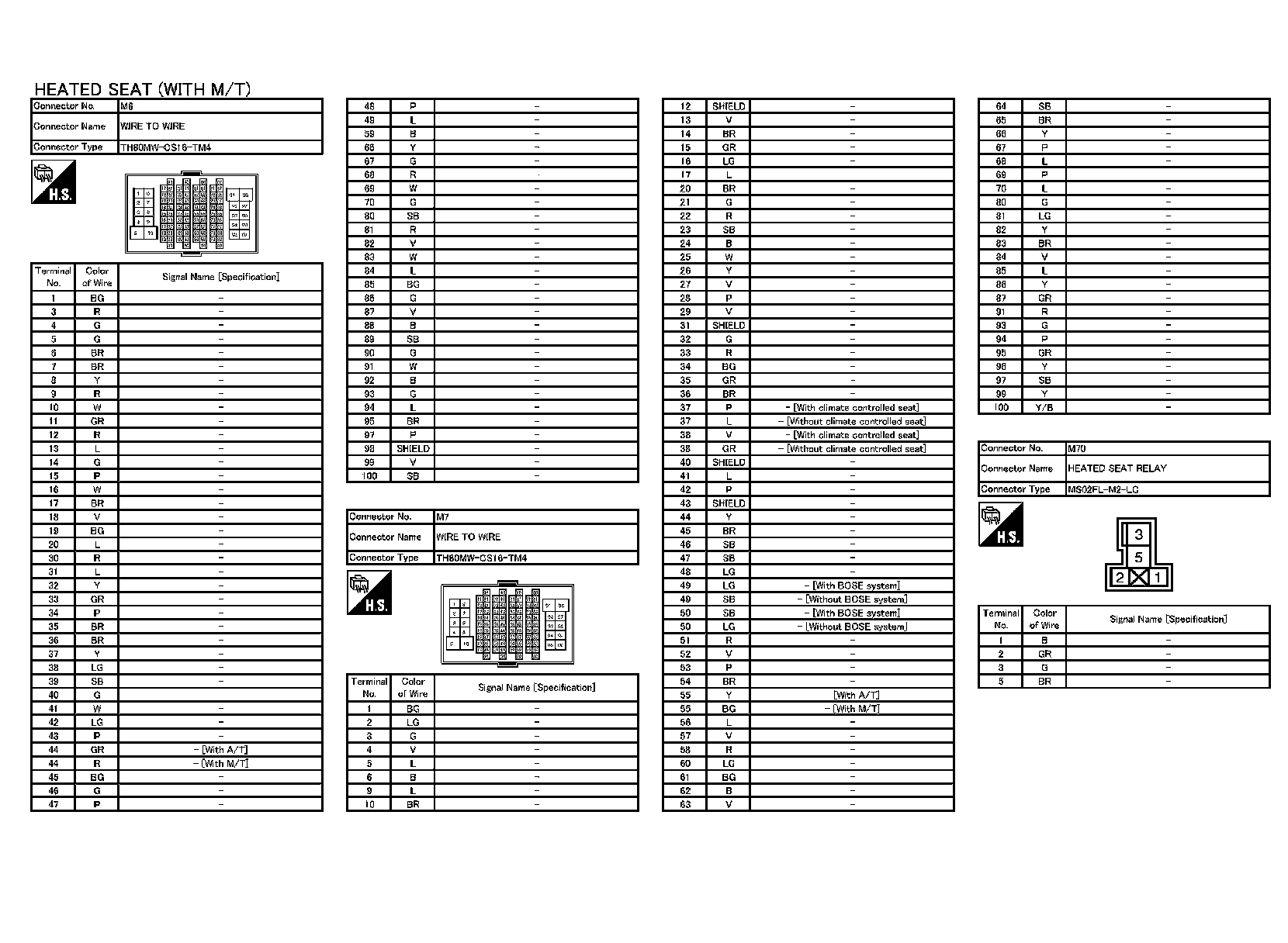

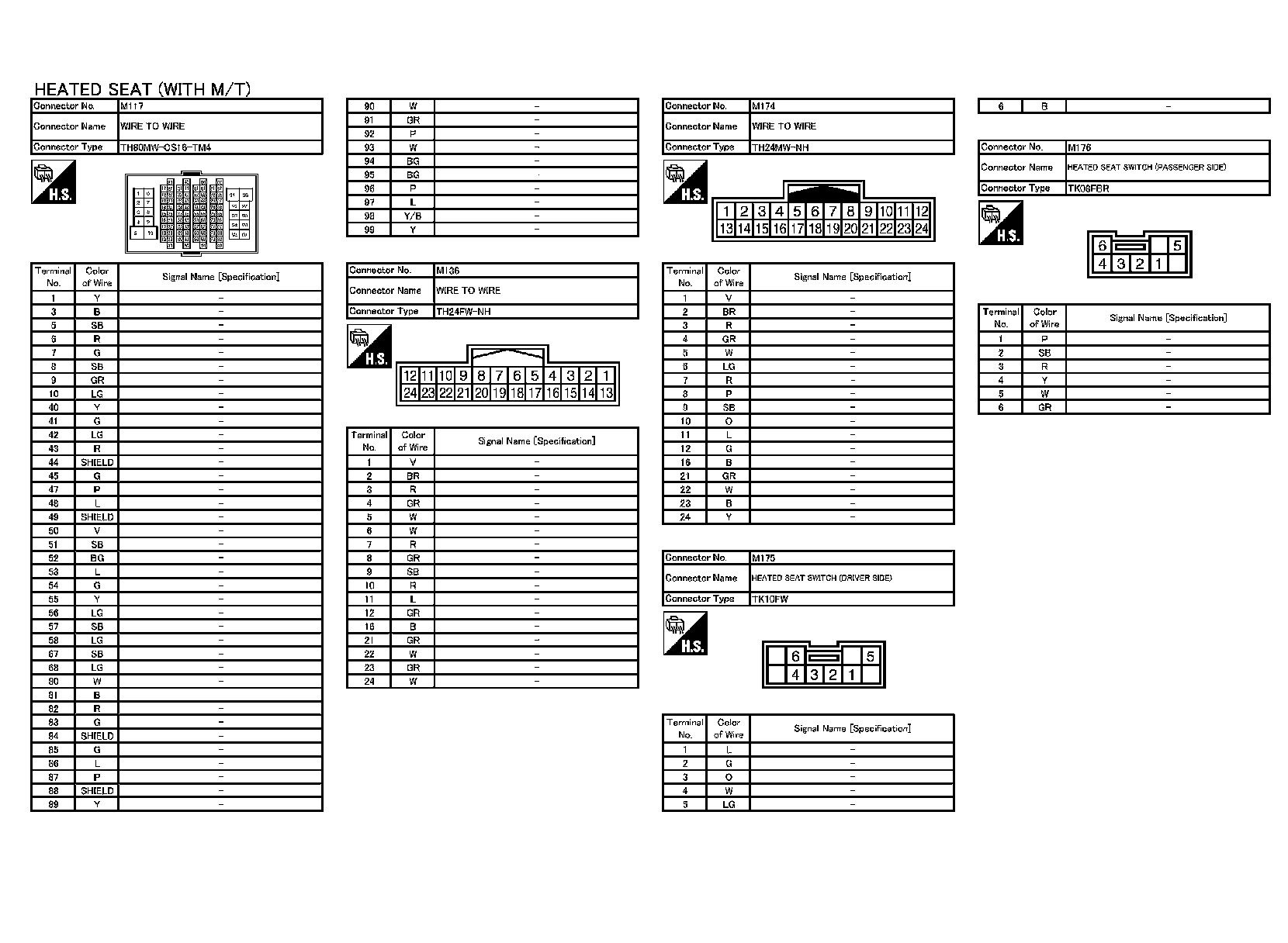

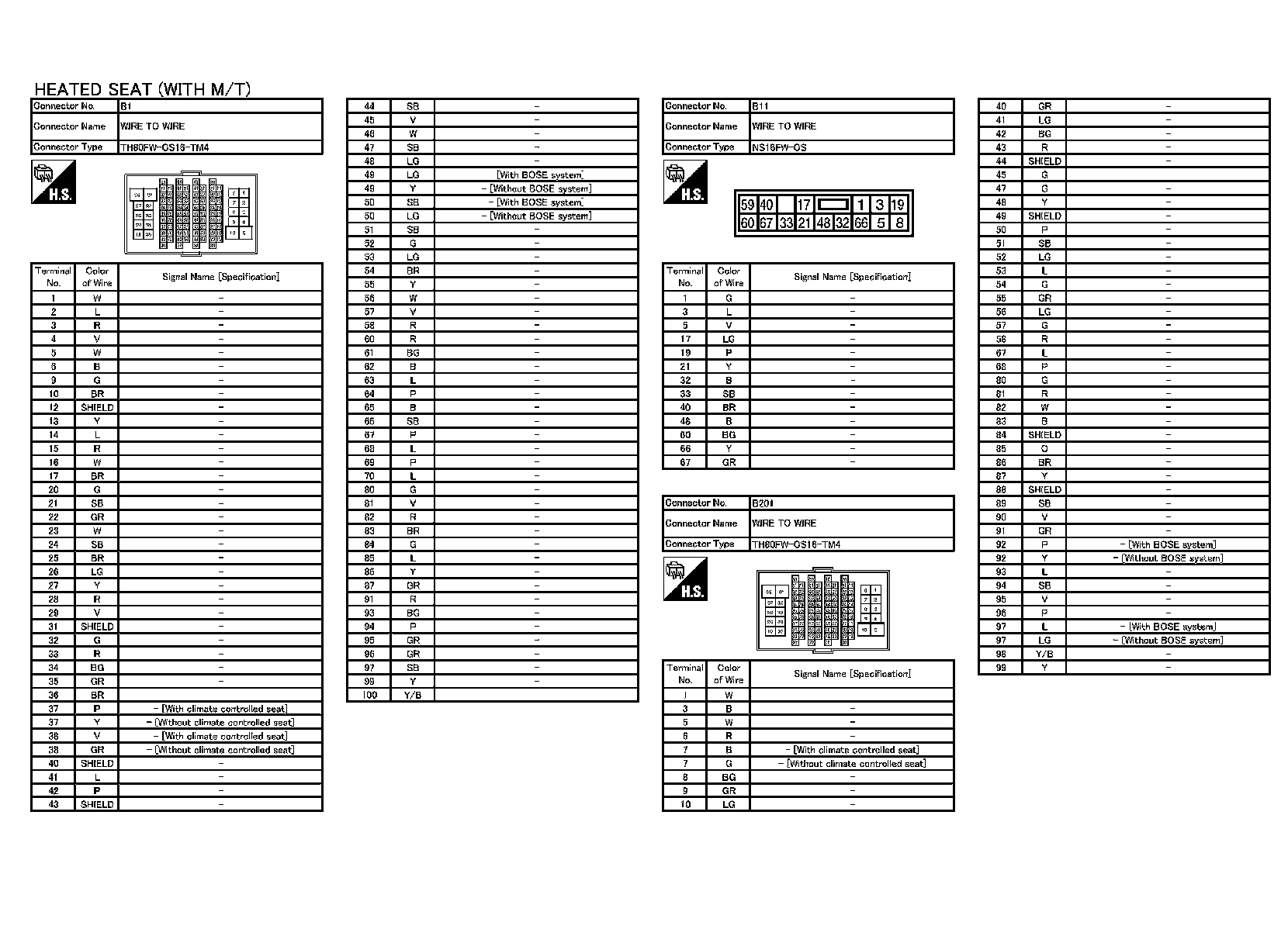

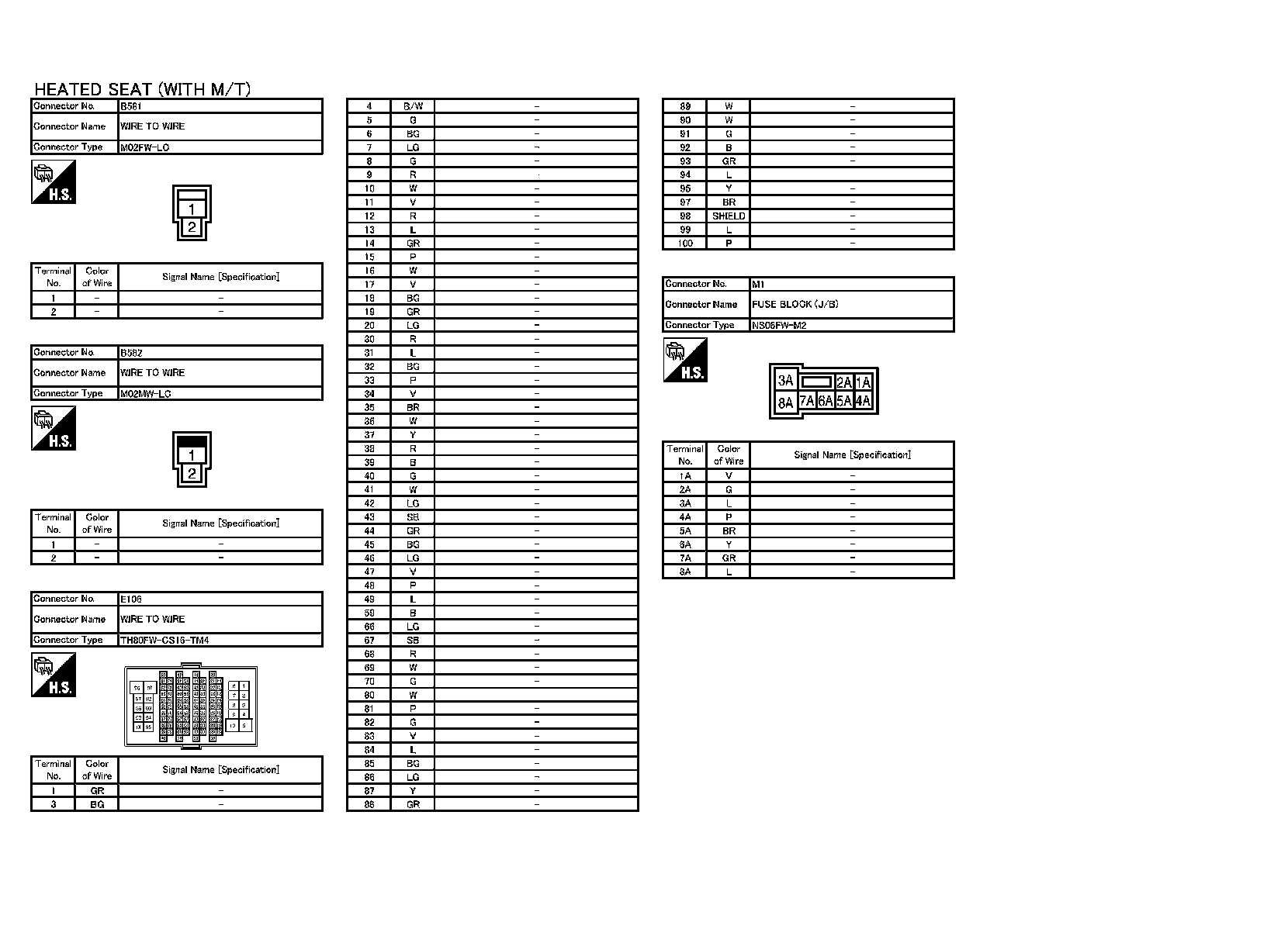

Wiring Diagram - HEATED SEAT SYSTEM (WITH M/T) -








































HEATED SEAT CONTROL UNIT

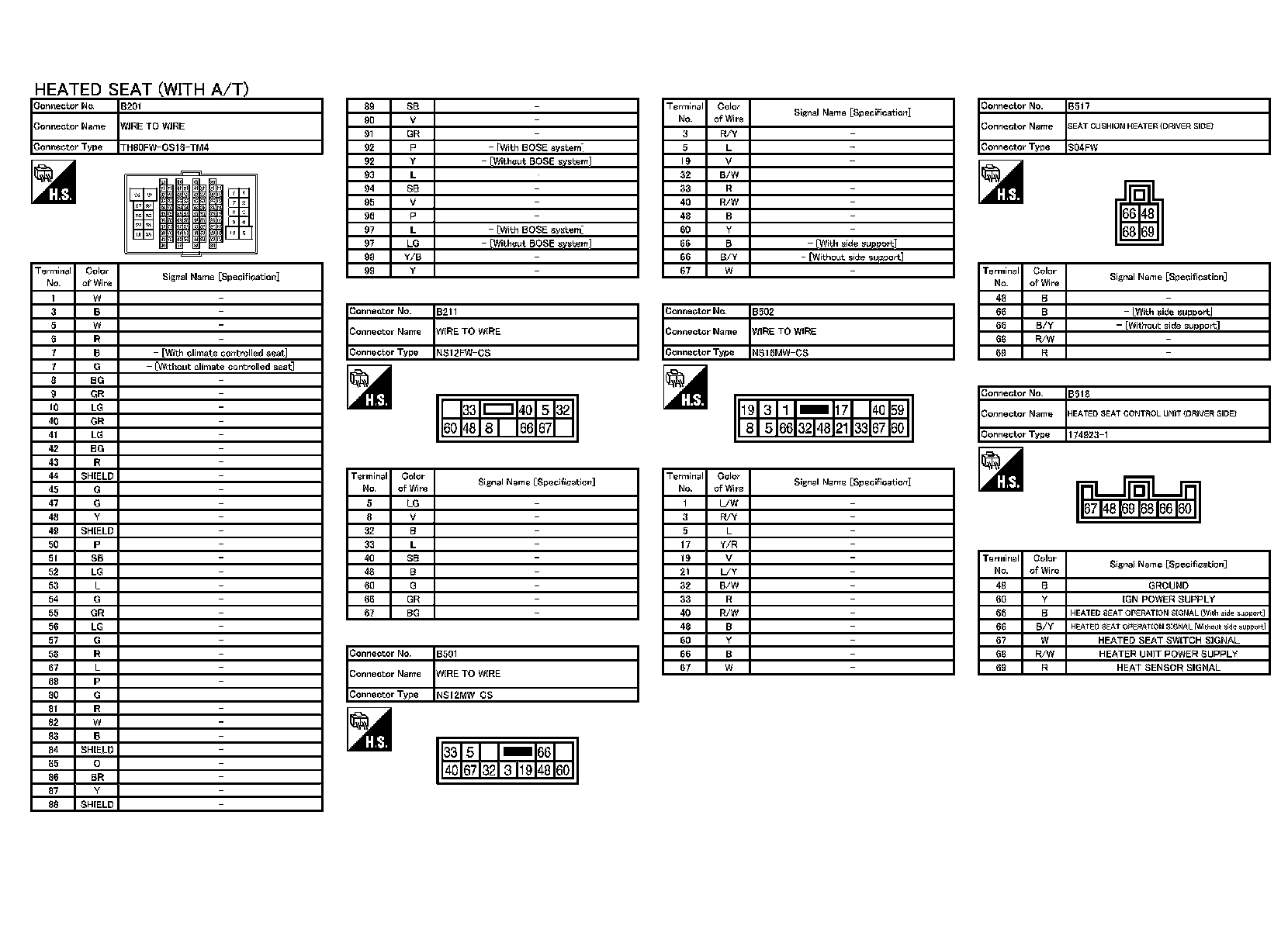

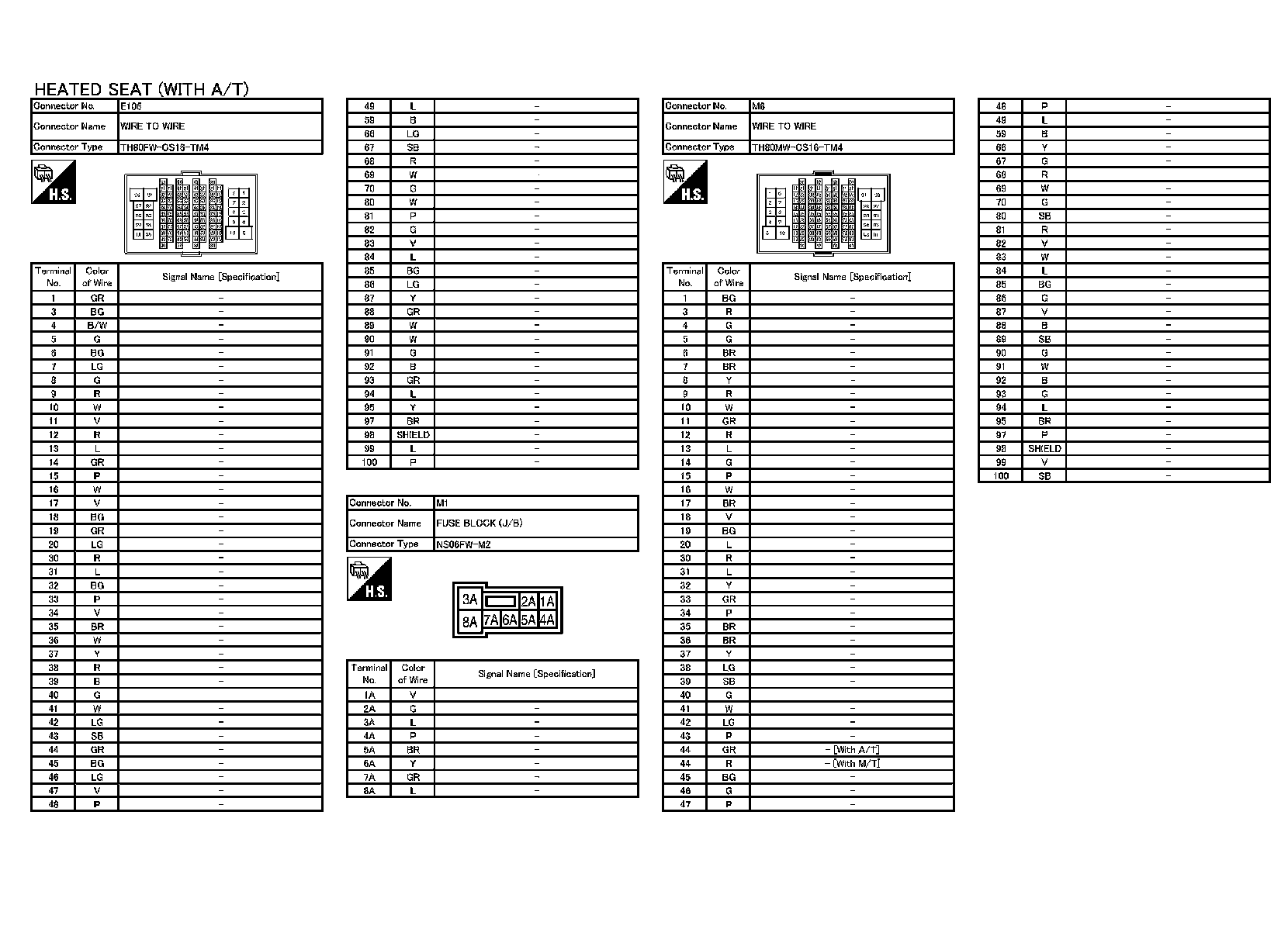

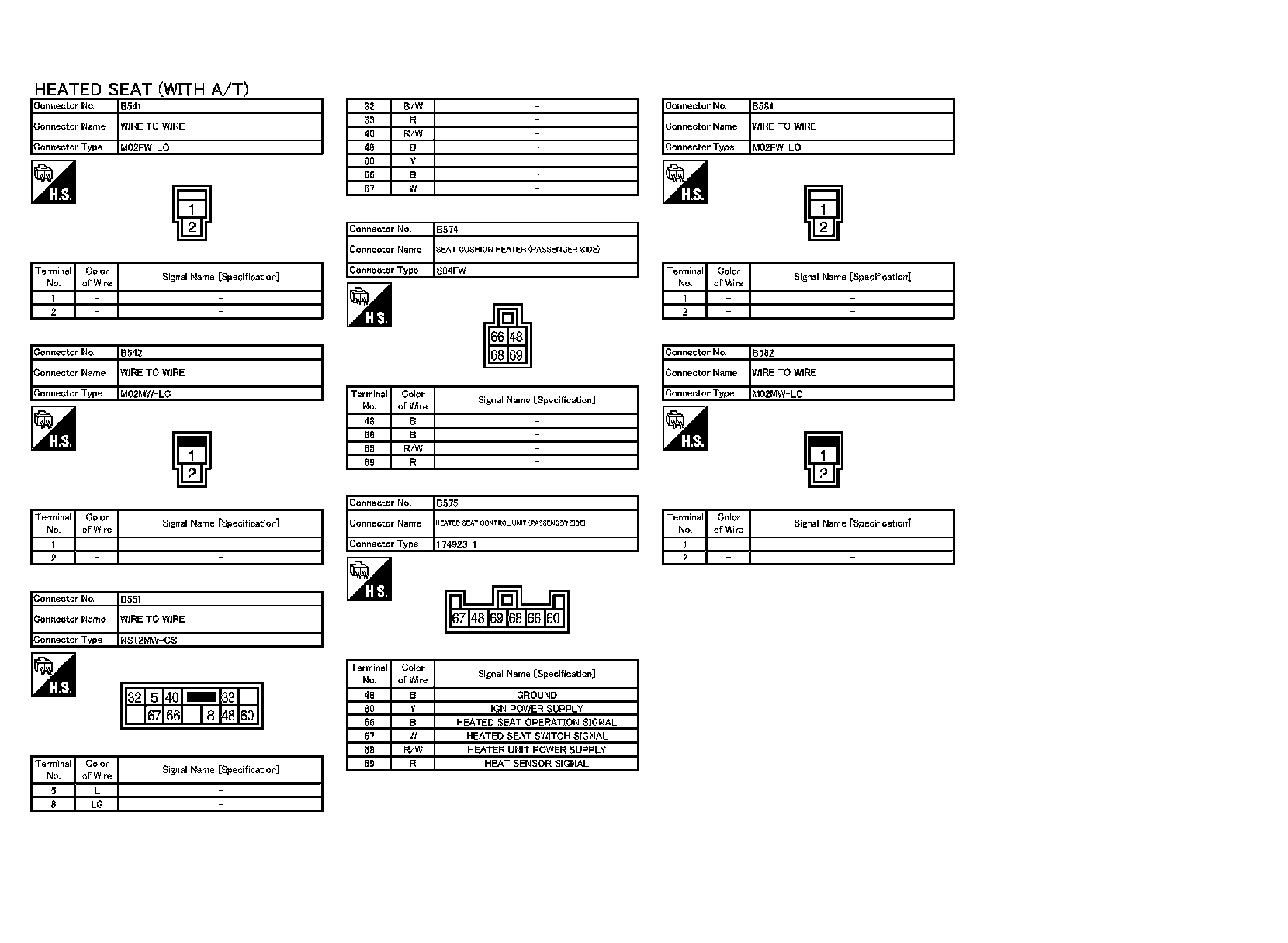

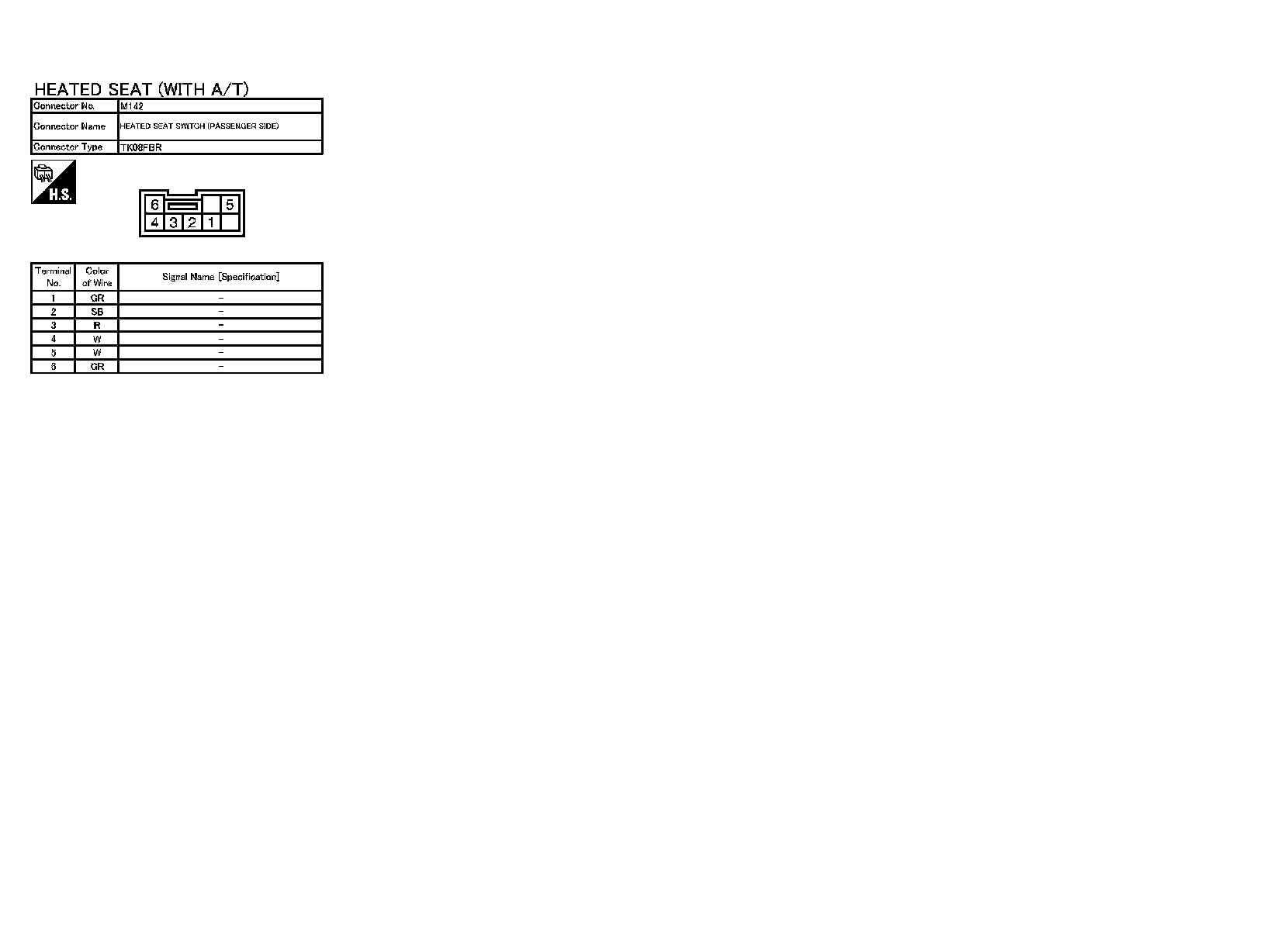

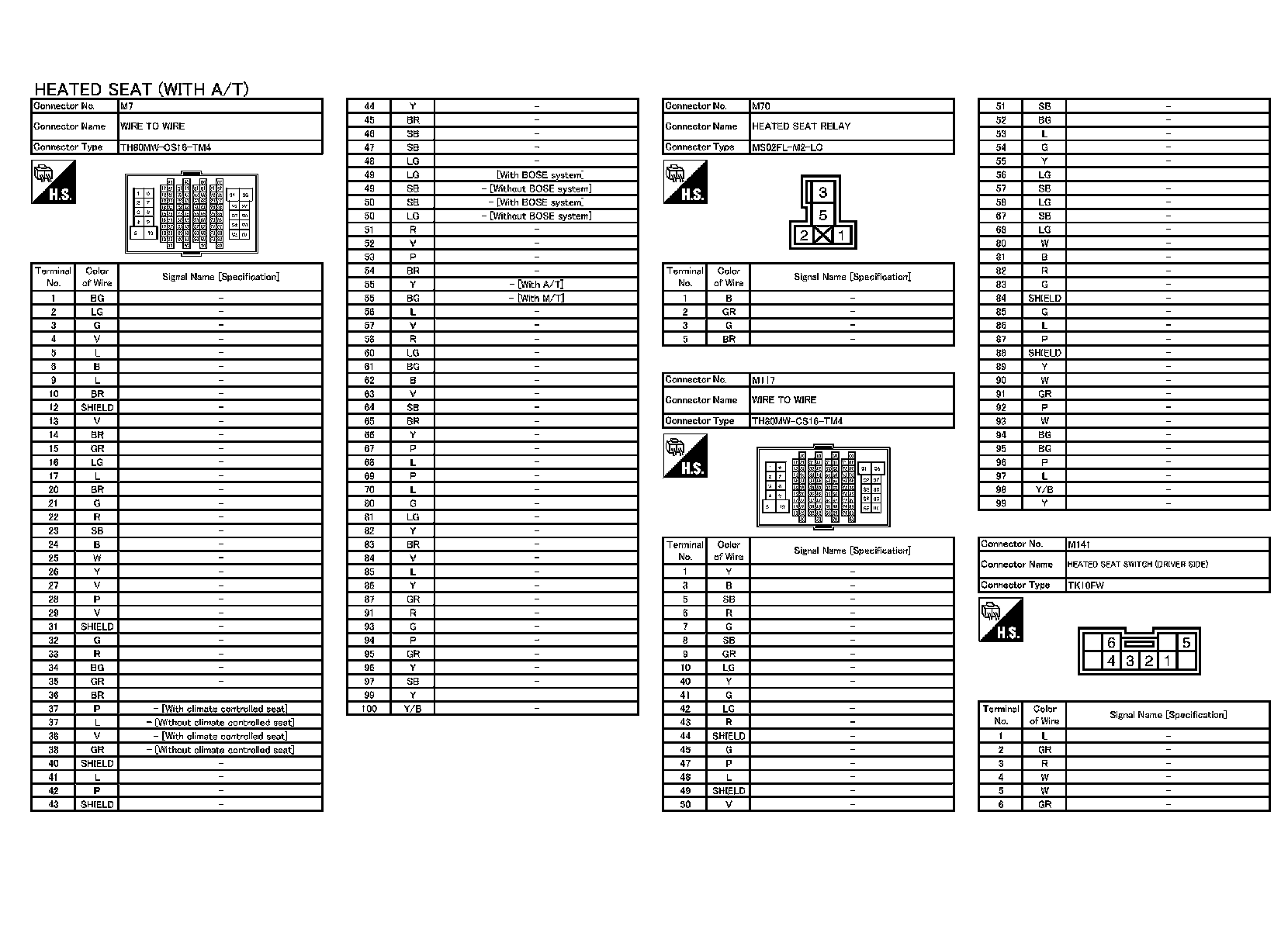

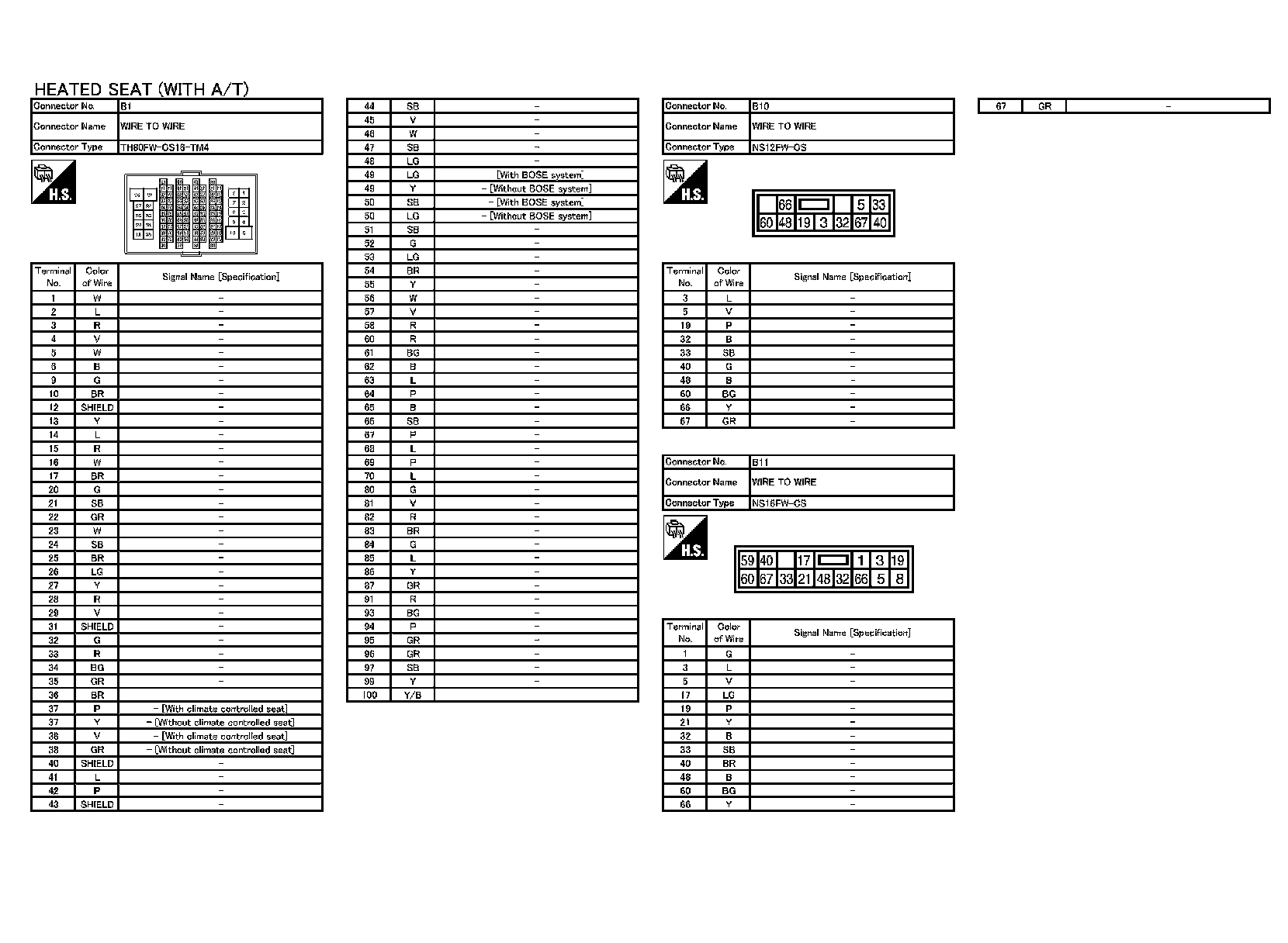

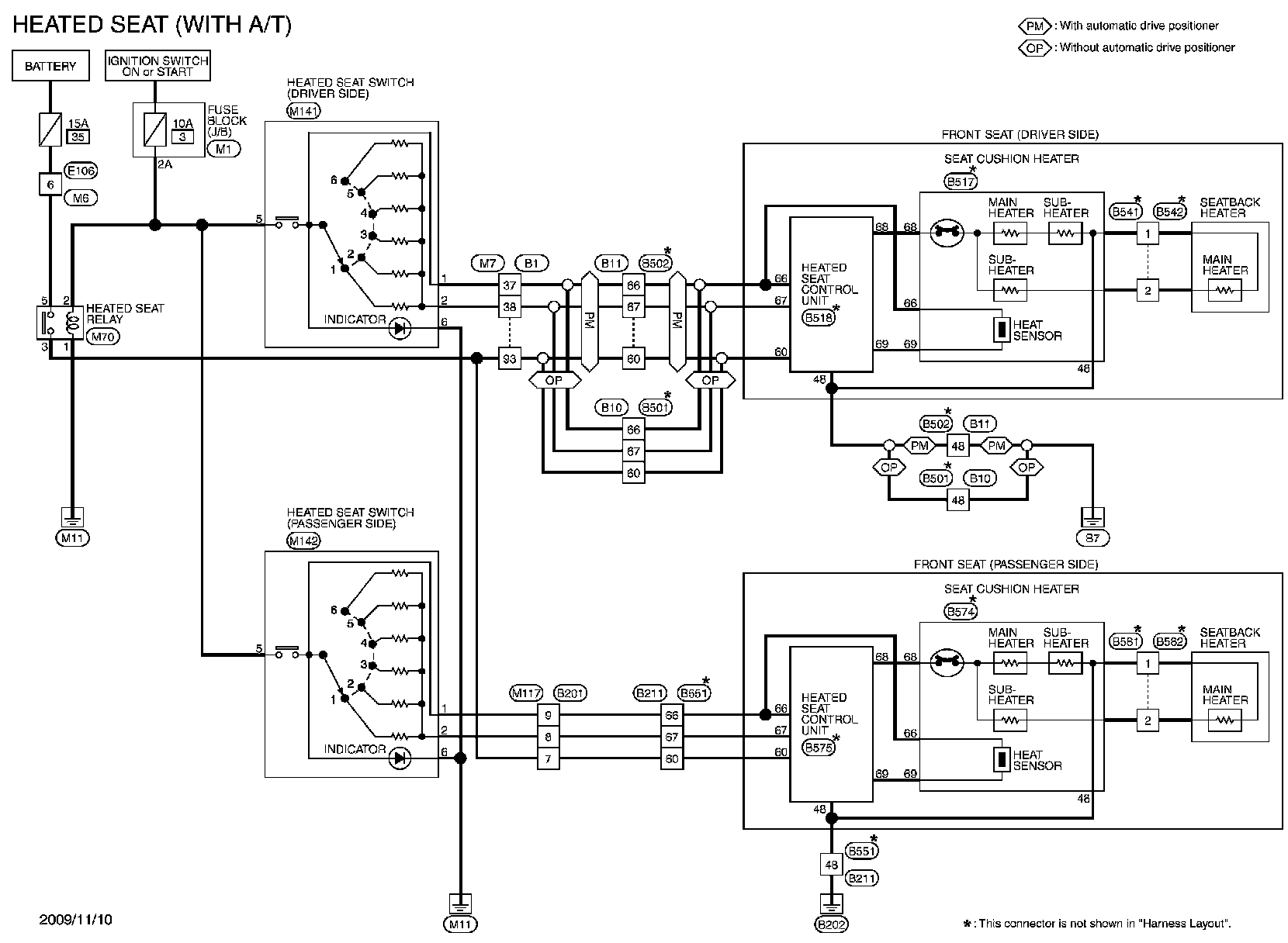

Wiring Diagram - HEATED SEAT SYSTEM (WITH A/T) -
