Retractable Hard Top Control Unit

RETRACTABLE HARD TOP CONTROL UNIT

Reference Value

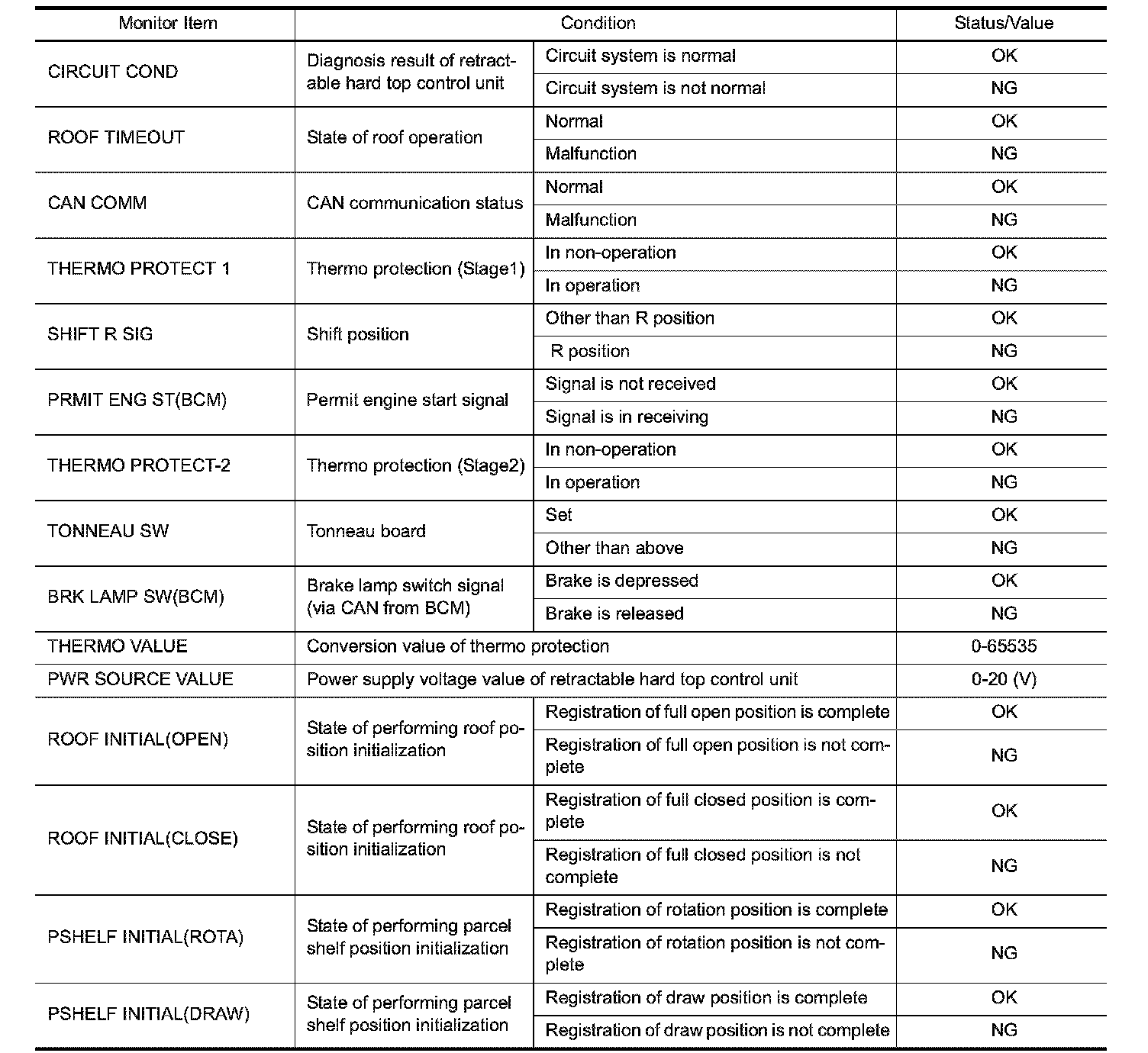

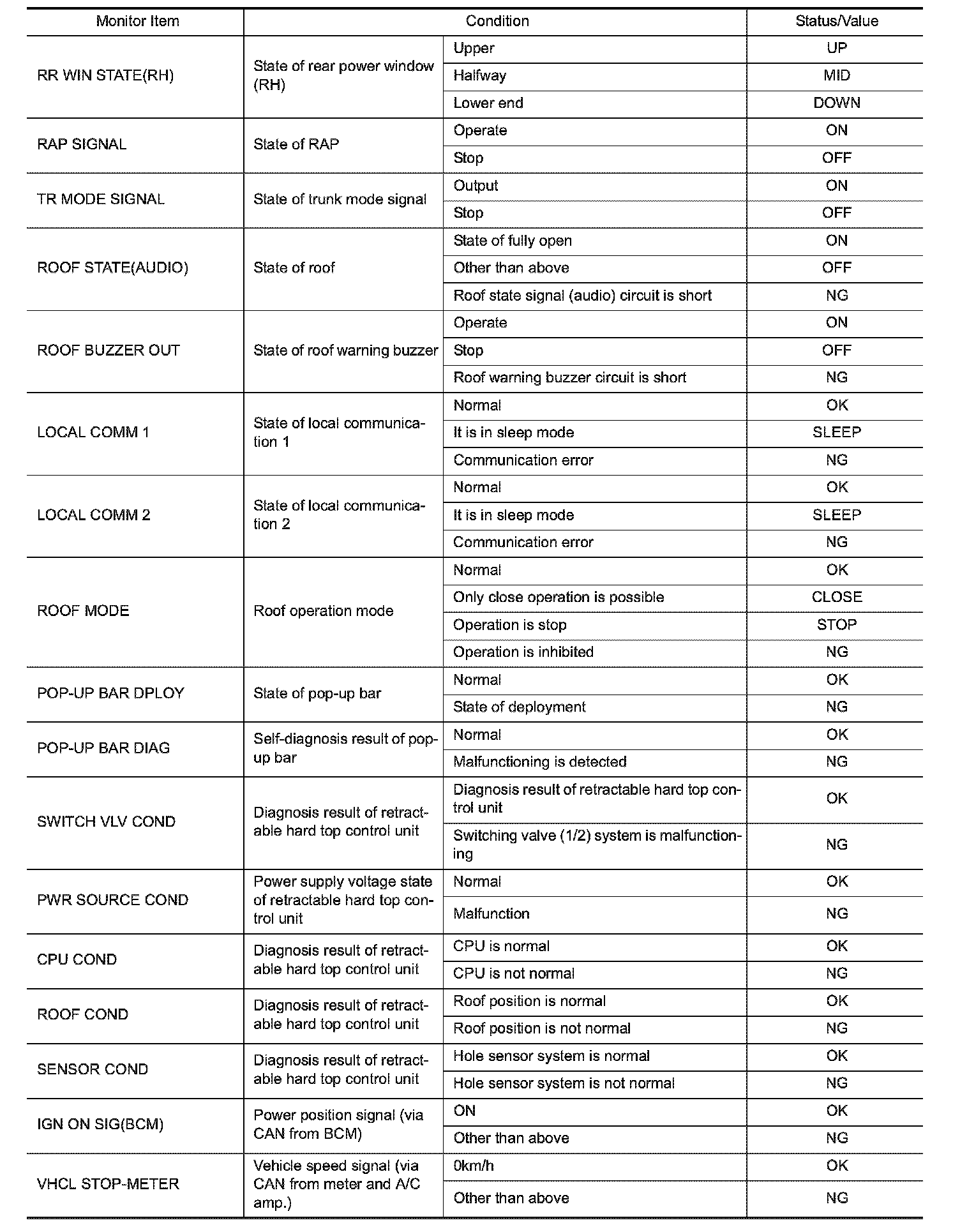

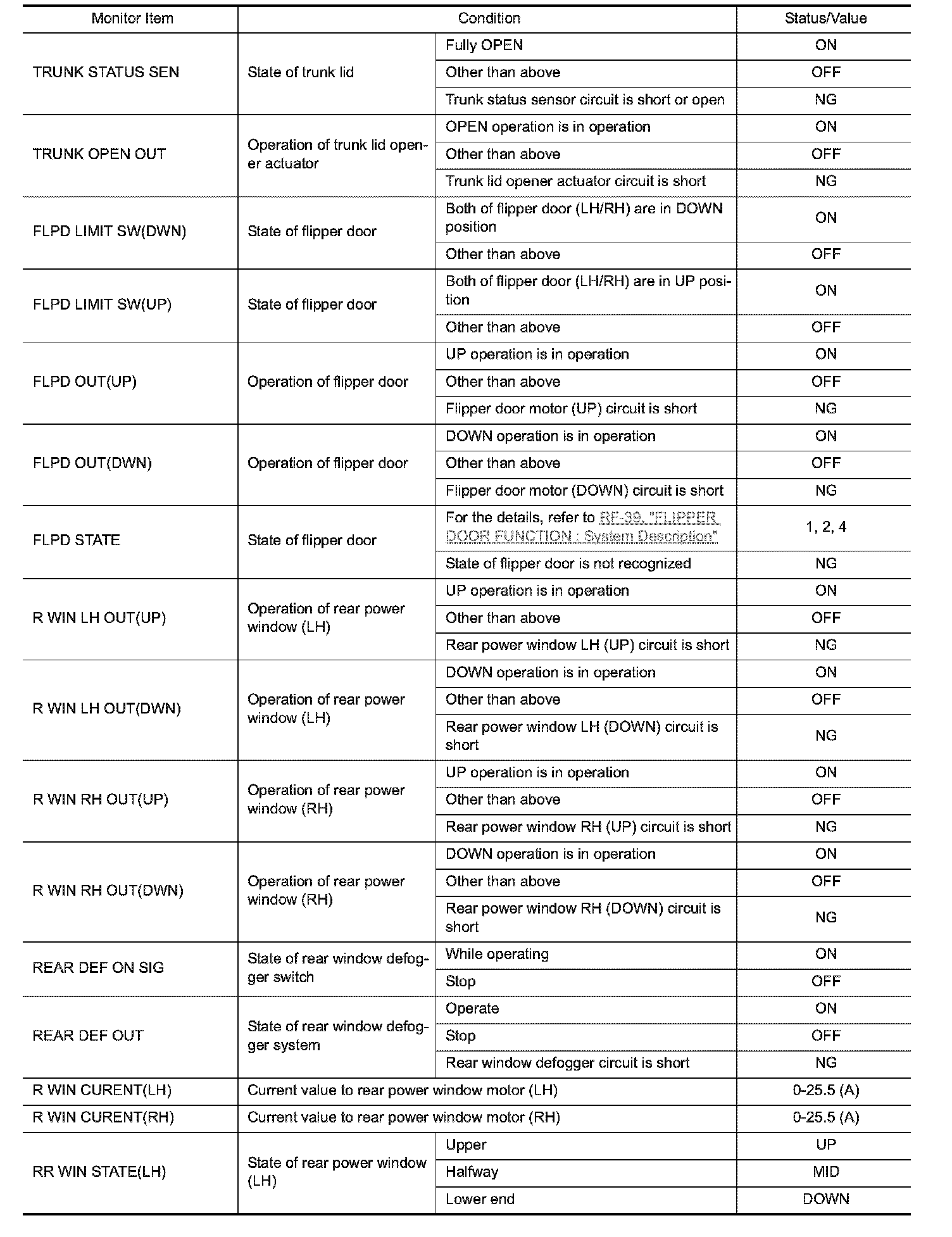

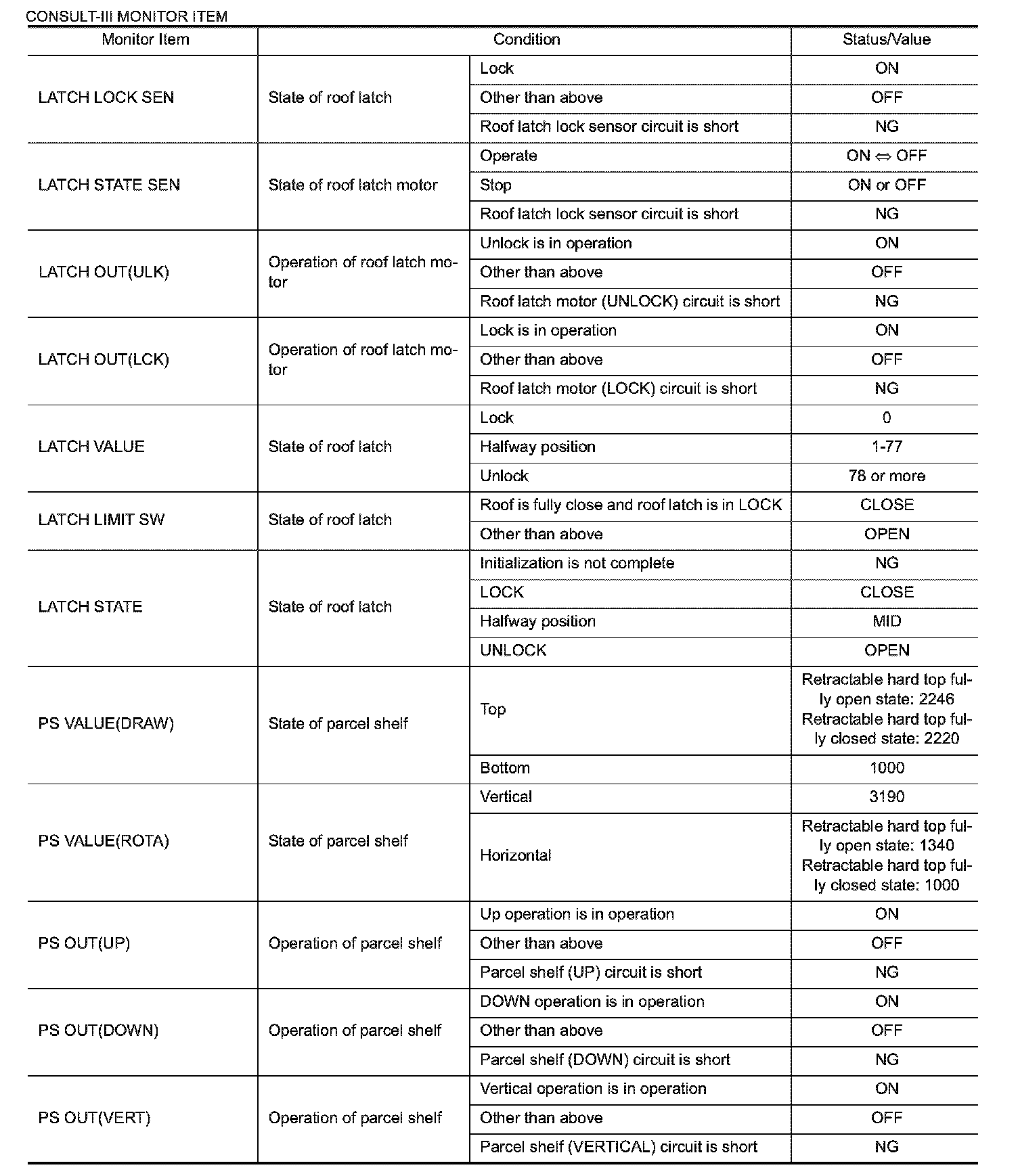

VALUES ON THE DIAGNOSIS TOOL

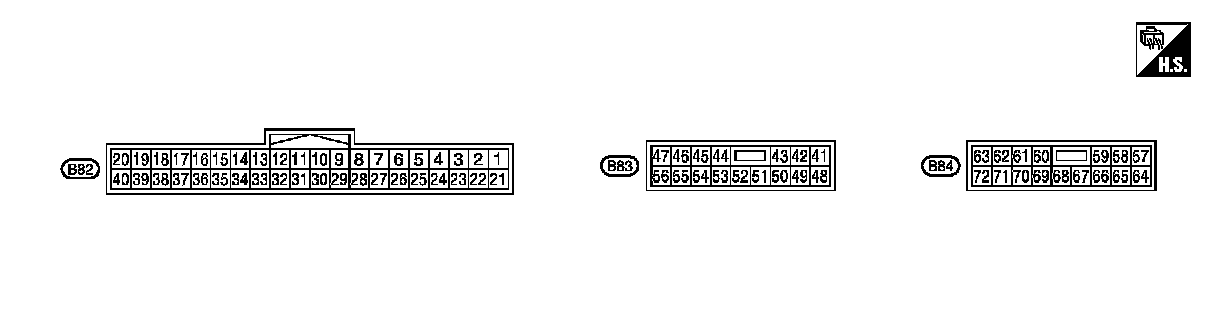

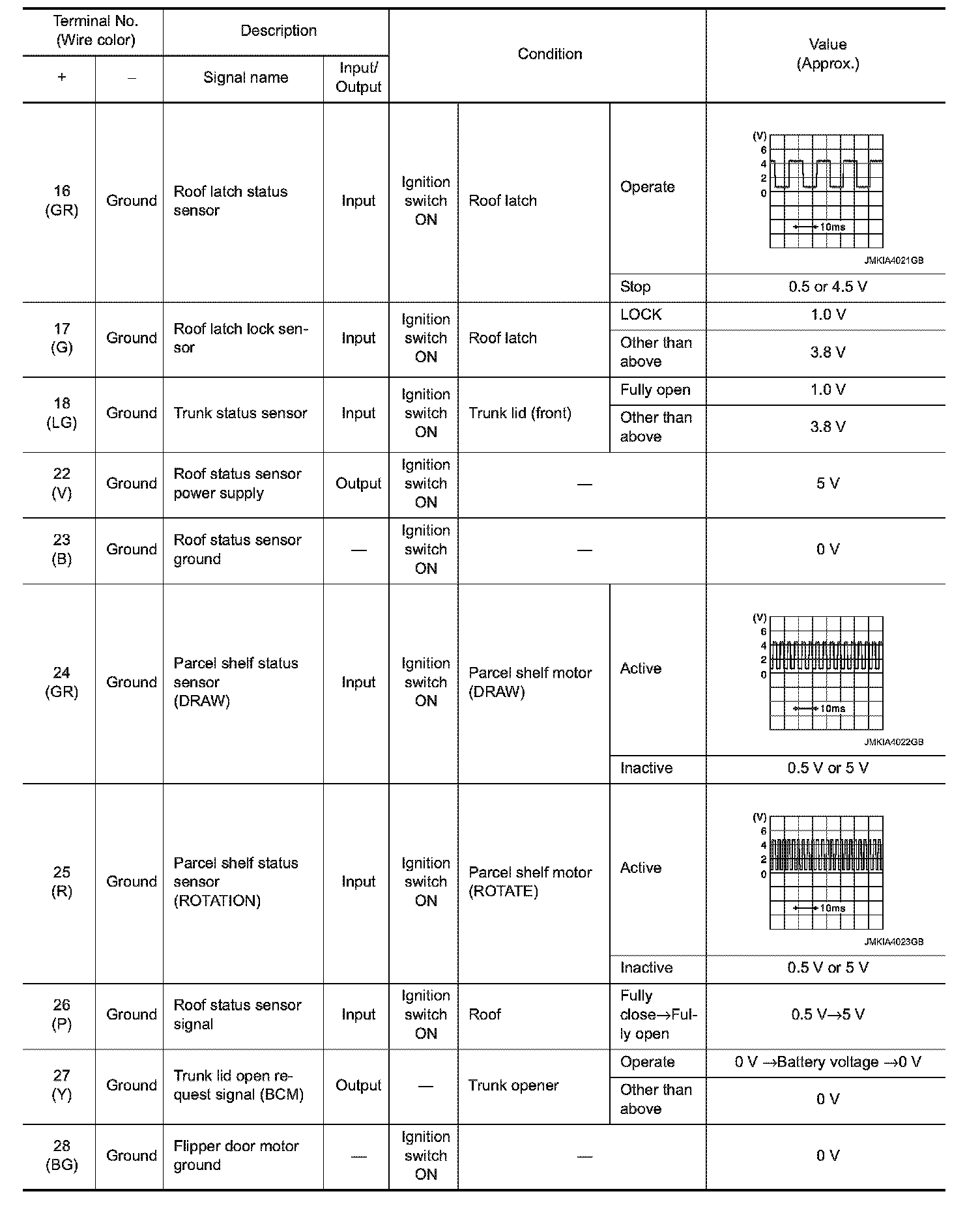

TERMINAL LAYOUT

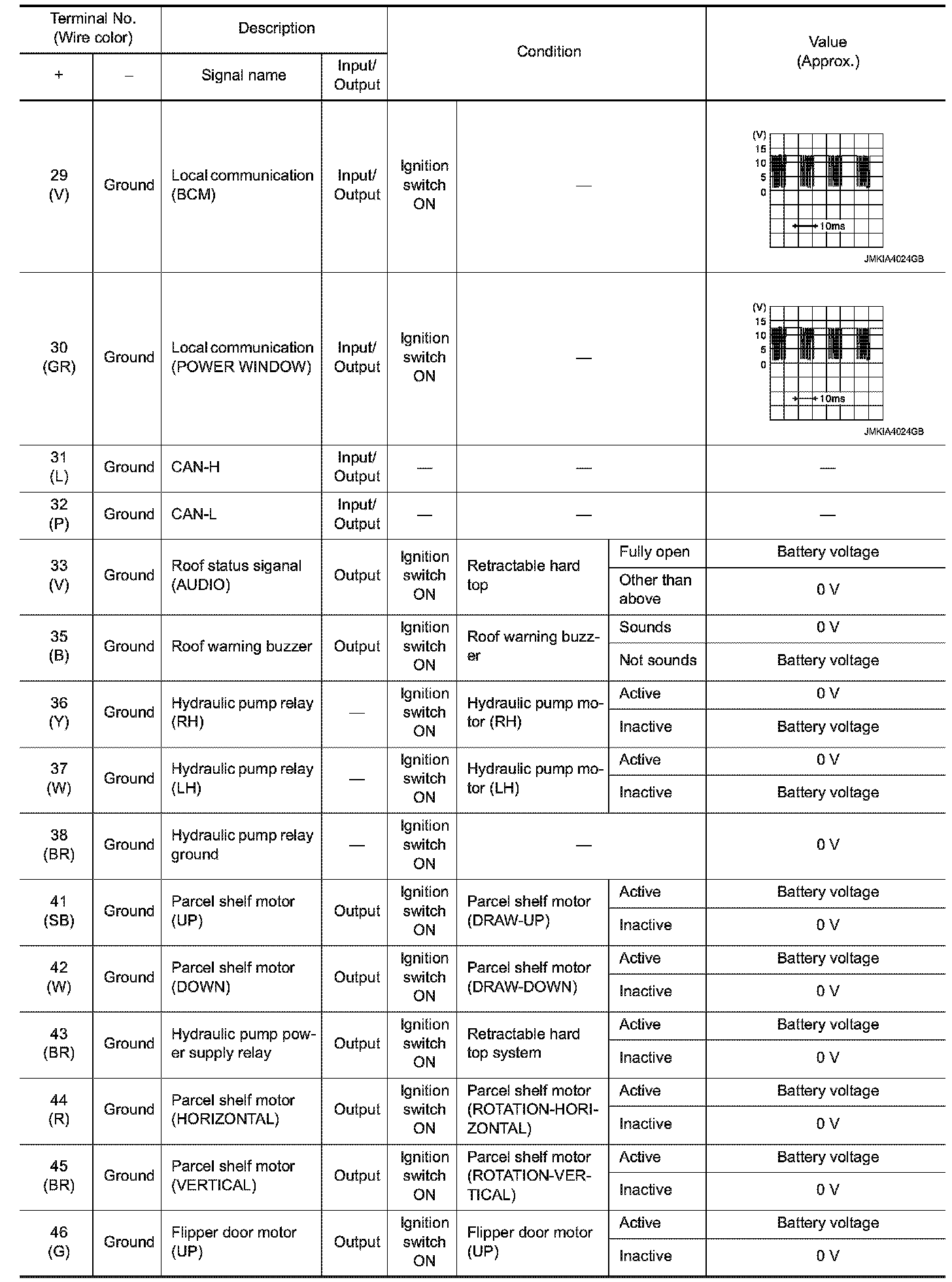

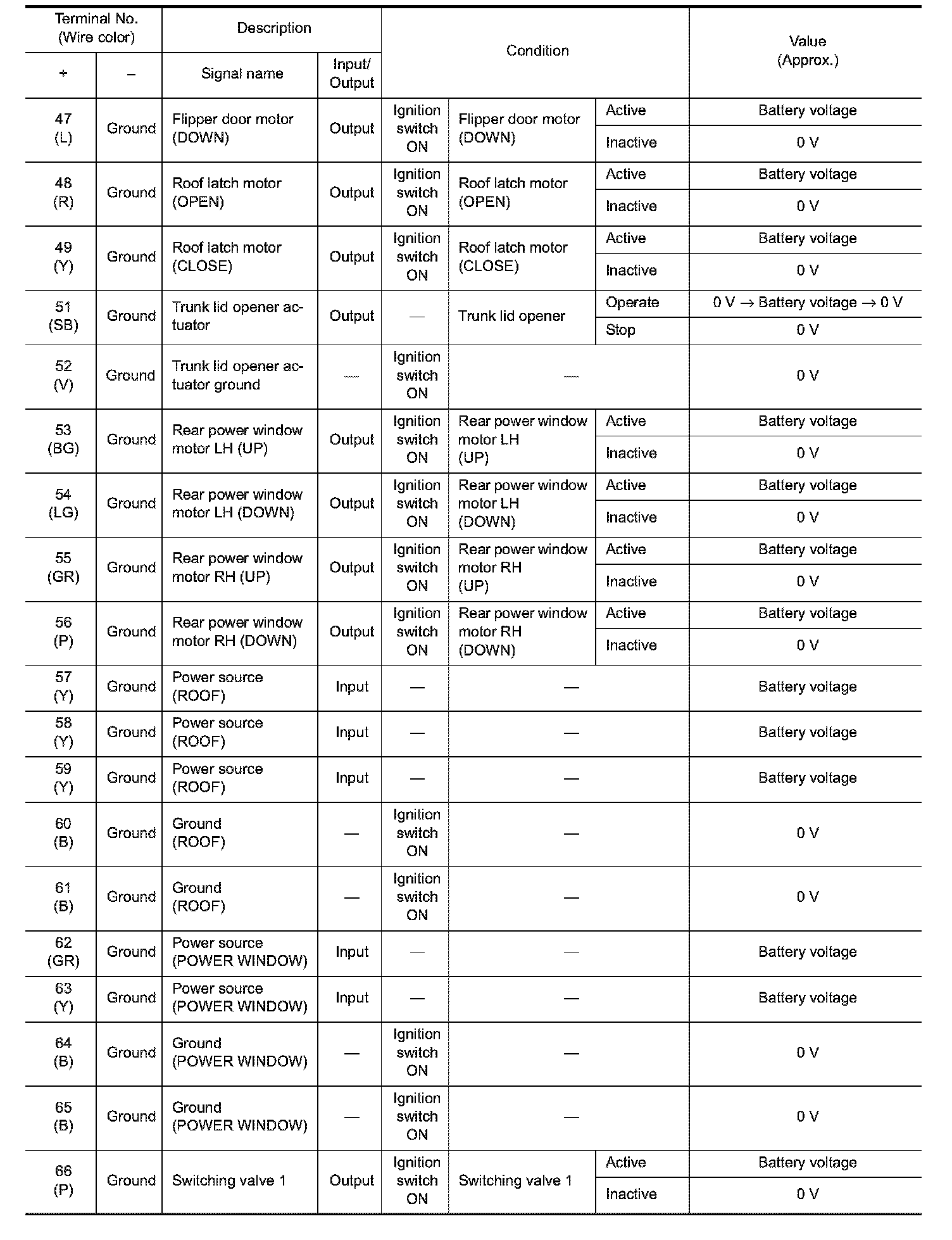

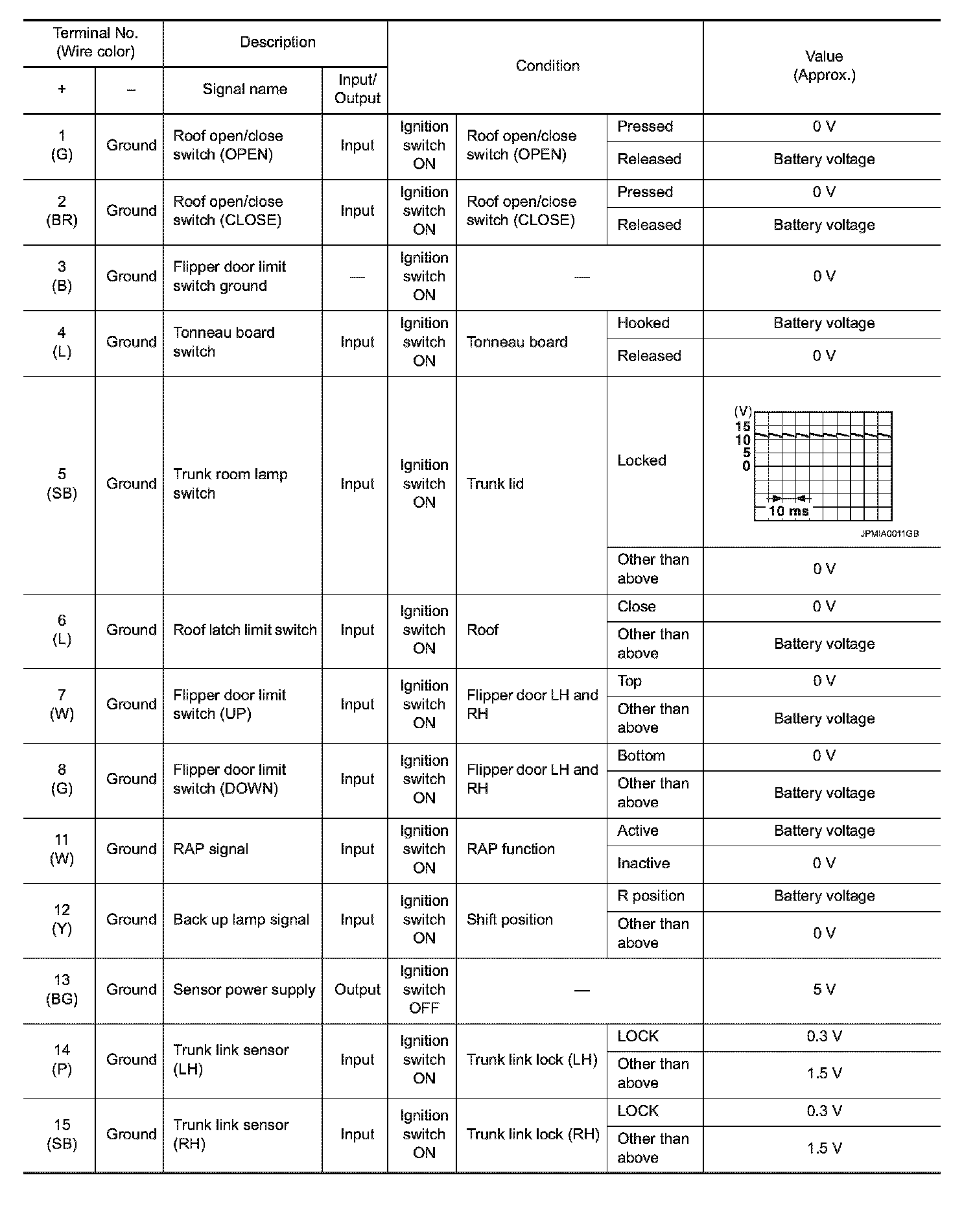

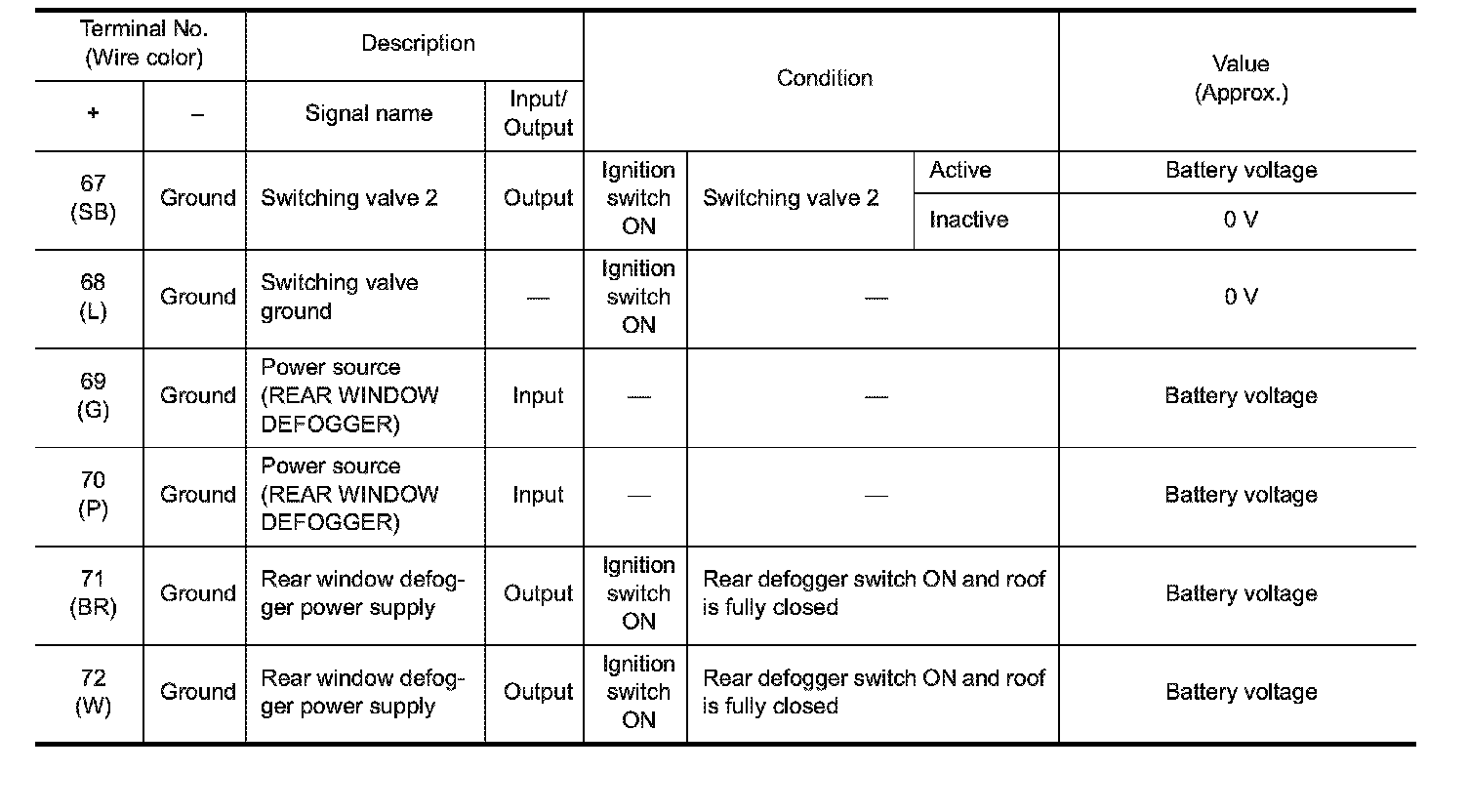

PHYSICAL VALUES
