Home >> Infiniti >> 2011 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Trunk Closure Control Unit

Trunk Closure Control Unit





TRUNK CLOSURE CONTROL UNIT


Fail-safe


FAIL-SAFE CONTROL

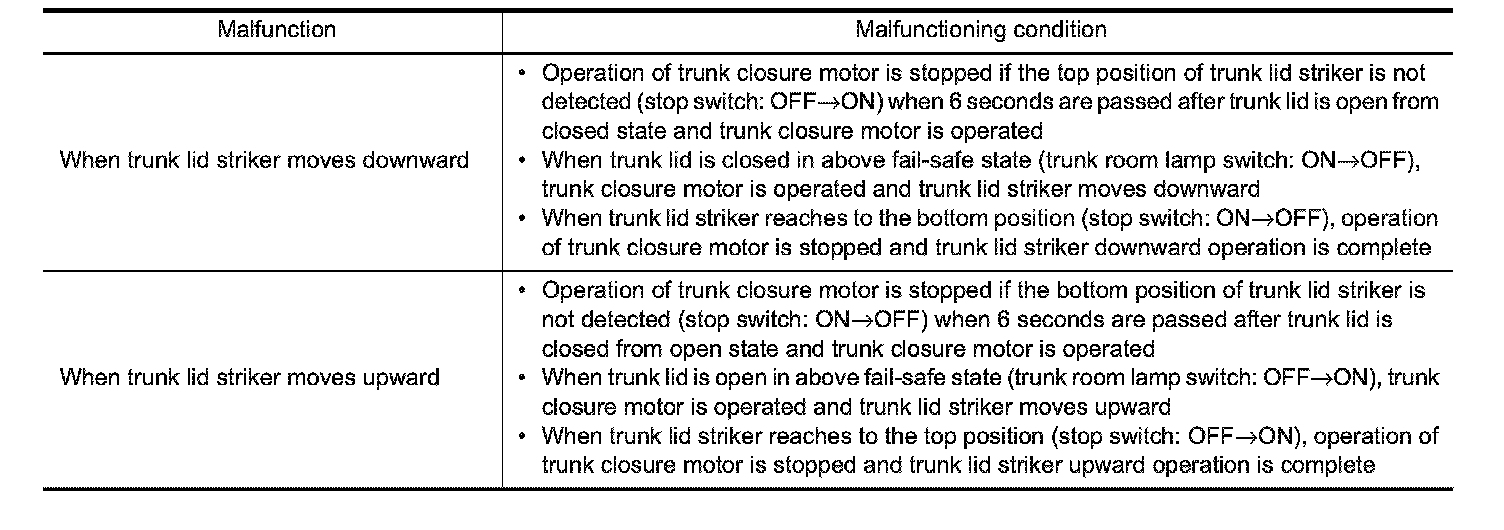

Fail-safe function is adopted to trunk lid auto closure system as per the following table.
