Retractable Hard Top System





SYSTEM


RETRACTABLE HARD TOP SYSTEM : Fail-safe

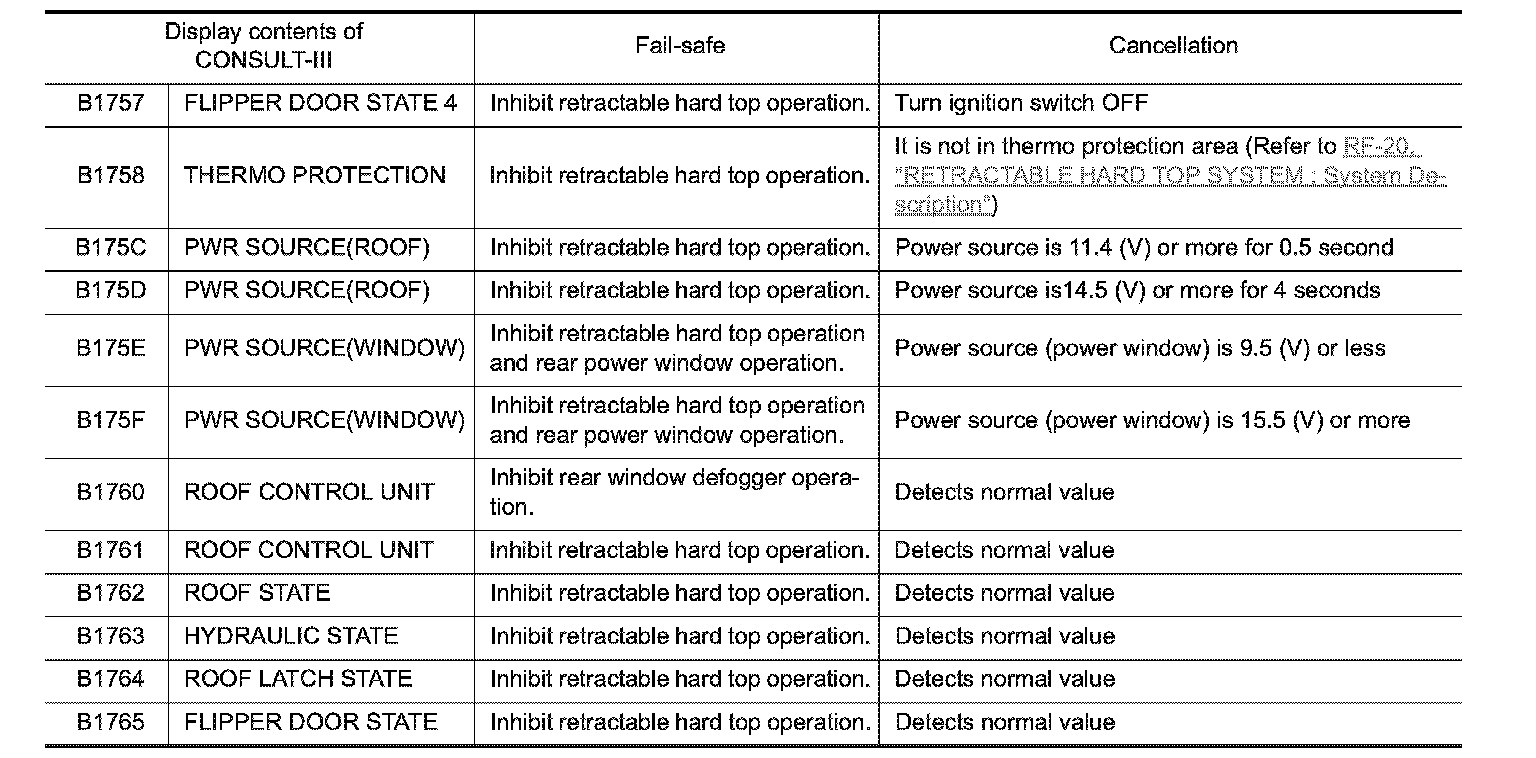

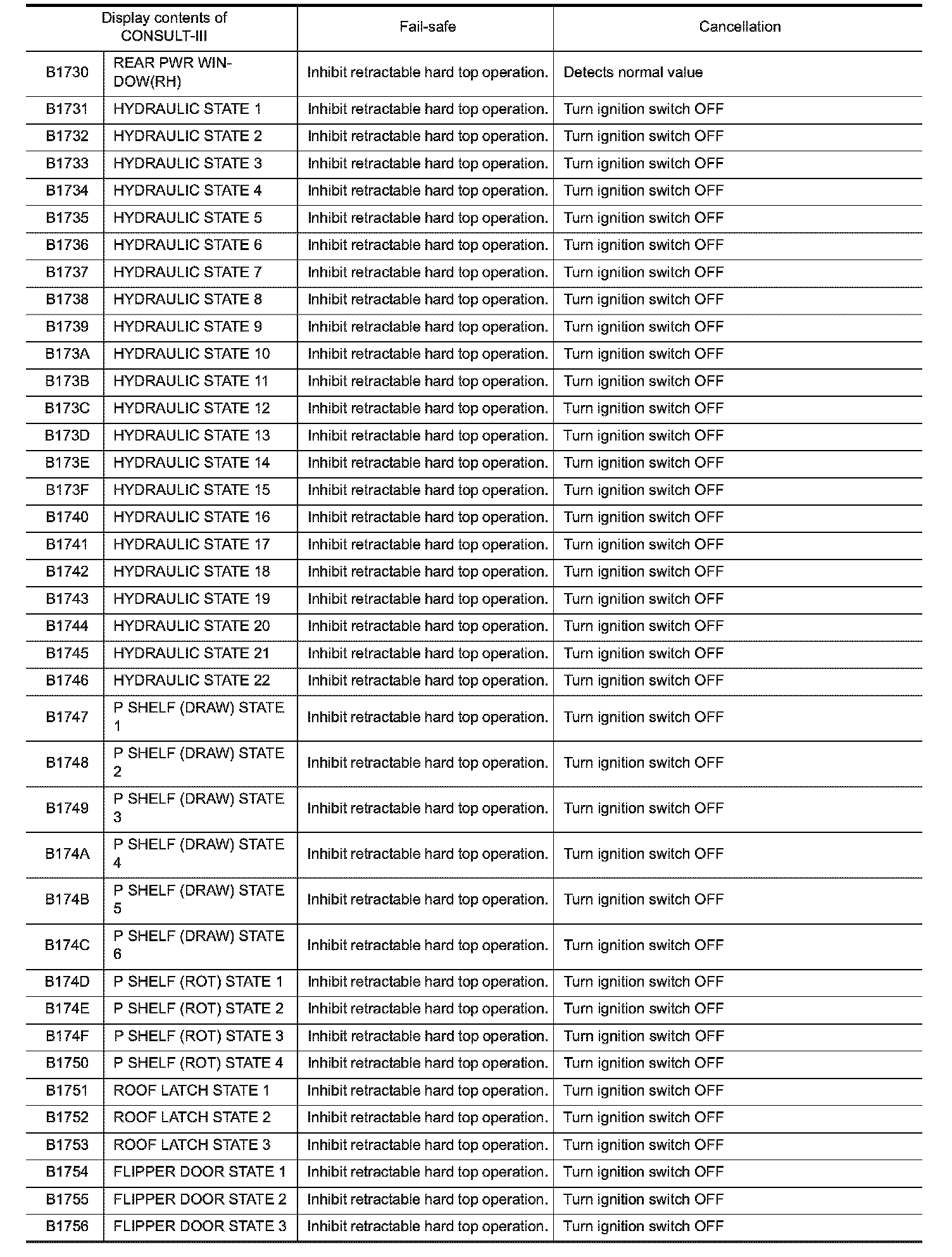

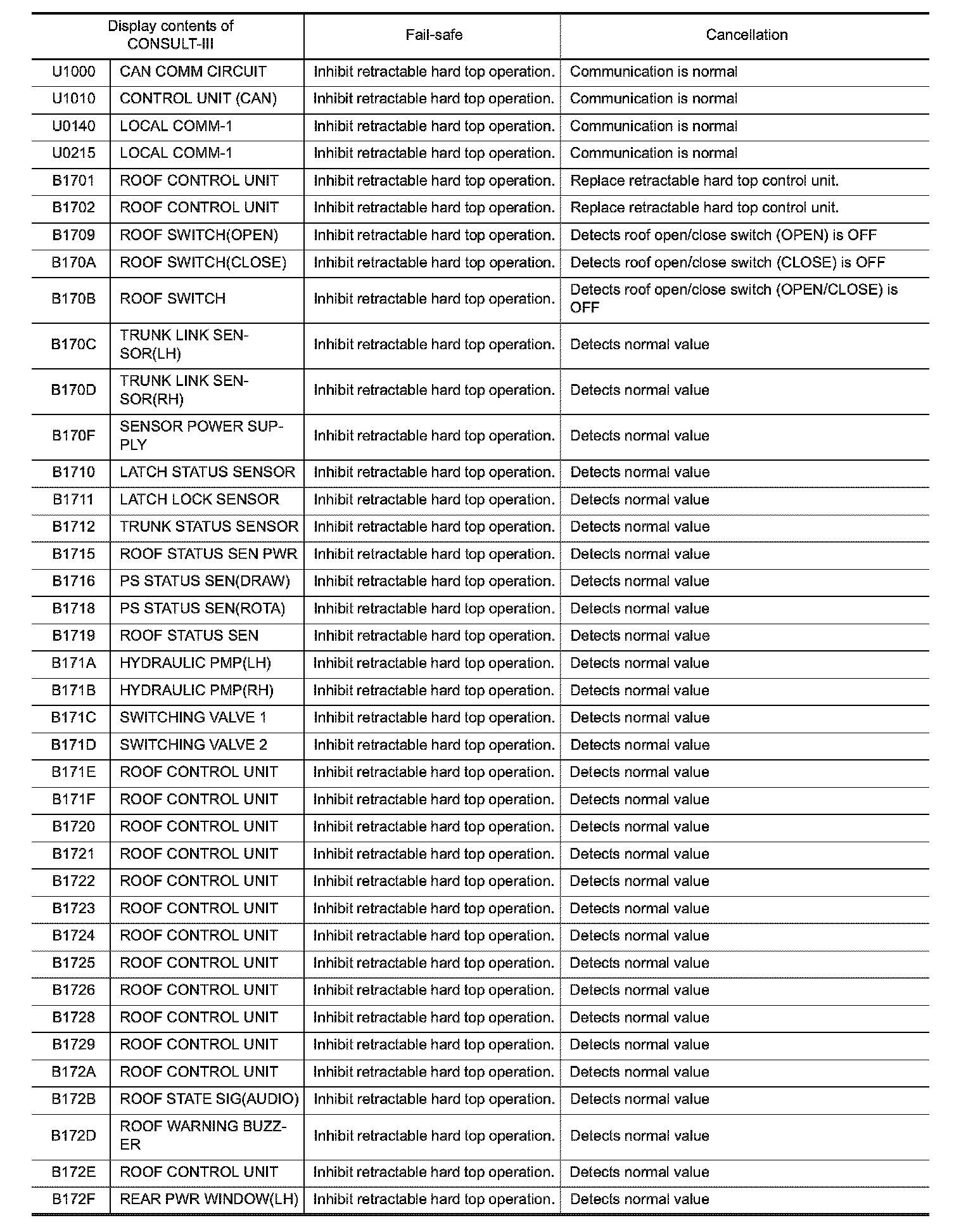

FAIL-SAFE CONTROL BY DTC
Retractable hard top control unit performs fail-safe control when any DTC are detected.
