Home >> Infiniti >> 2011 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Retractable Hard Top Control Unit

Retractable Hard Top Control Unit





RETRACTABLE HARD TOP CONTROL UNIT


Fail-safe

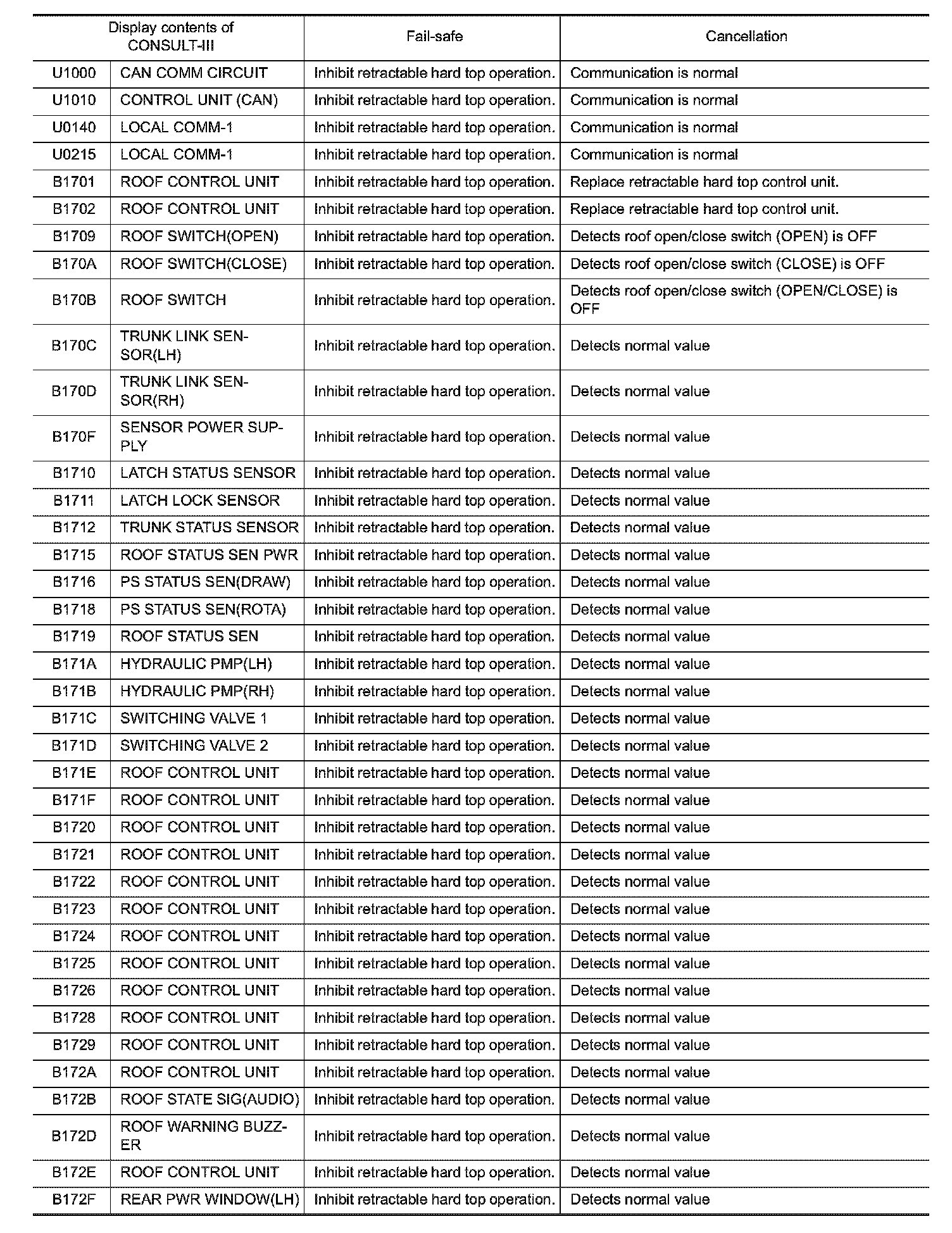

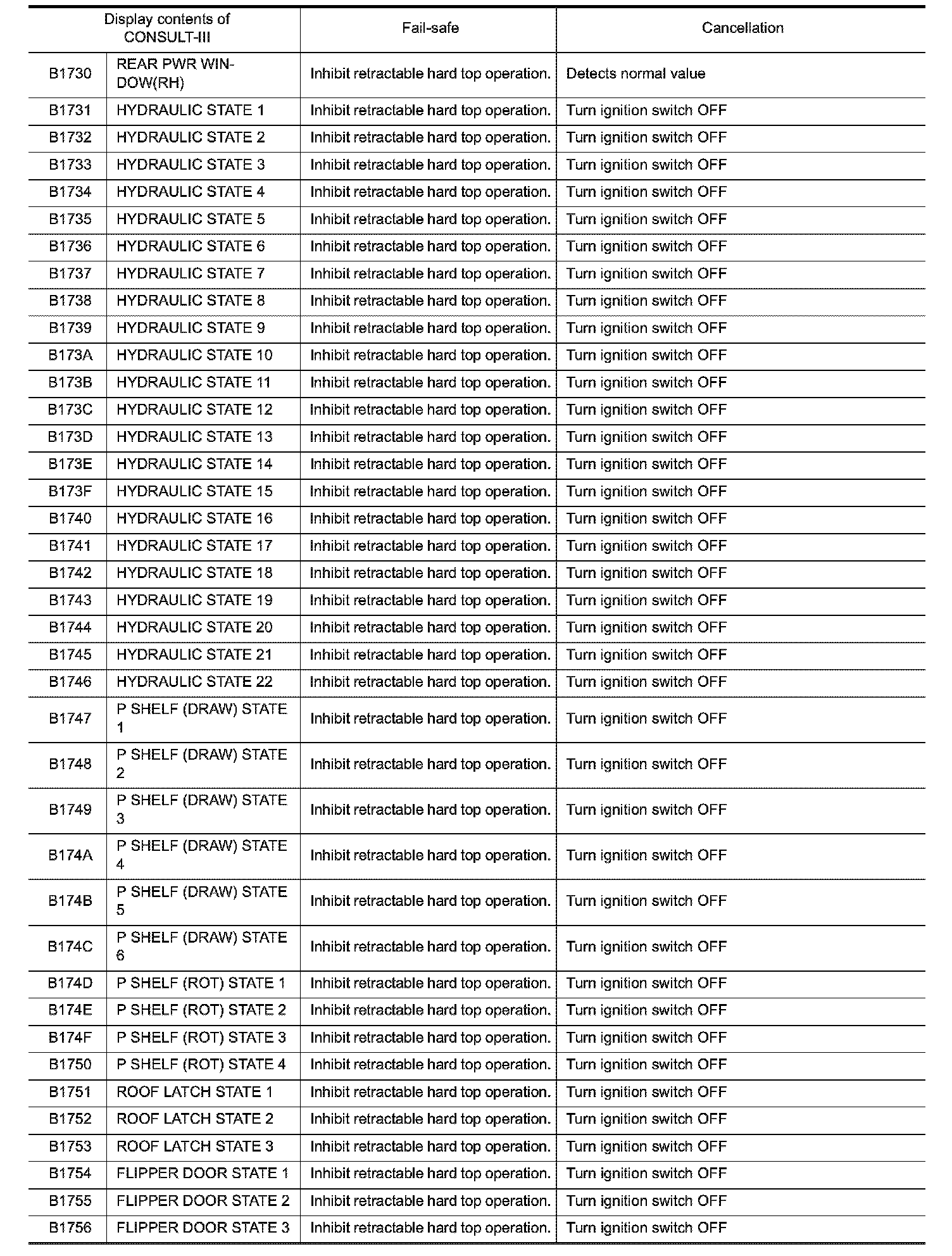

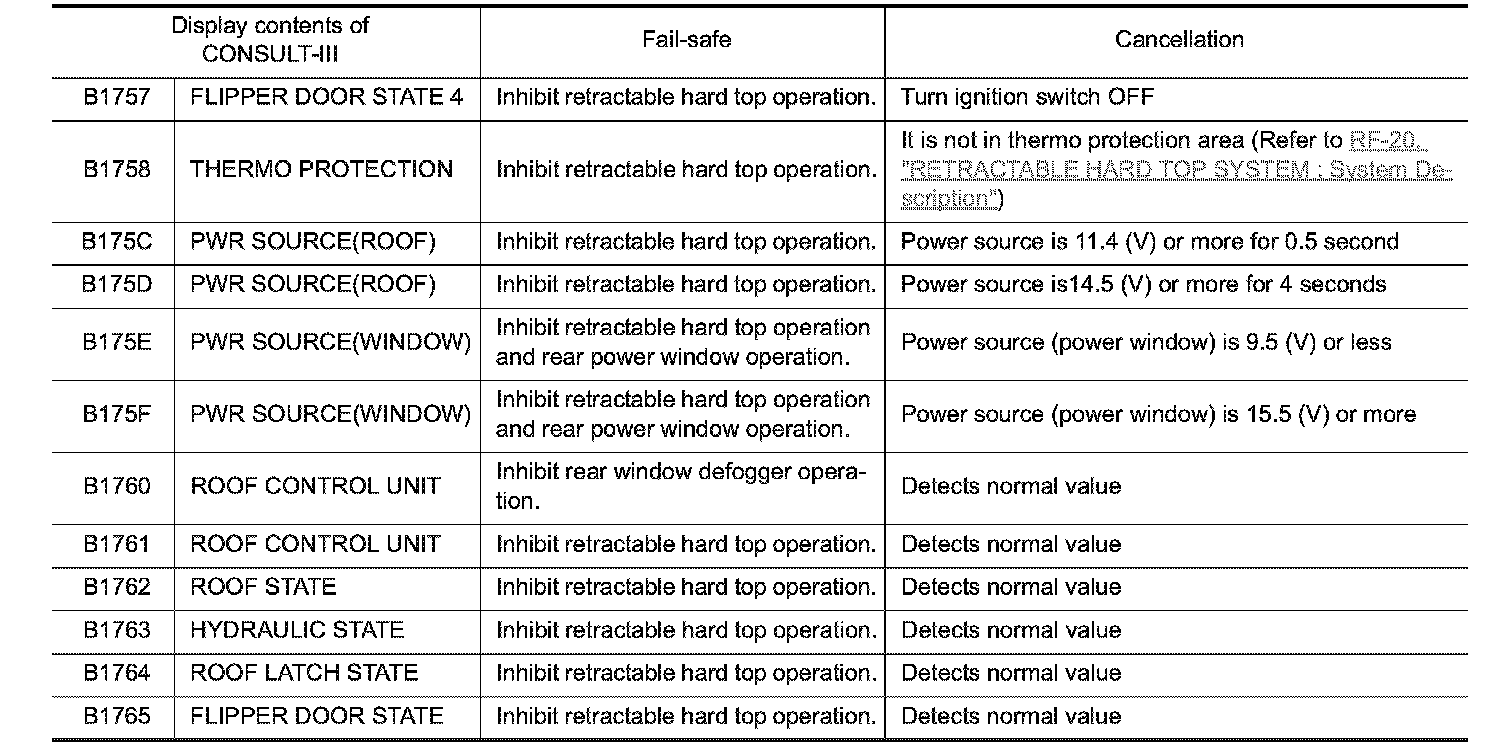

FAIL-SAFE CONTROL BY DTC
Retractable hard top control unit performs fail-safe control when any DTC are detected.
