Parcel Shelf Motor (Draw)

PARCEL SHELF MOTOR (DRAW)





Diagnosis Procedure
1.CHECK PARCEL SHELF MOTOR (DRAW) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect retractable hard top control unit connector and parcel shelf unit connector.

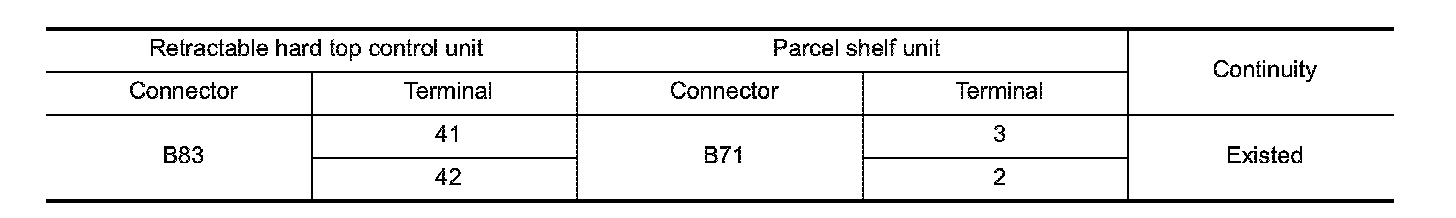

3. Check the continuity between retractable hard top control unit harness connector and parcel shelf unit harness connector.





4. Check harness for short to ground.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace harness.
2.CHECK PARCEL SHELF MOTOR (DRAW) GROUND CIRCUIT

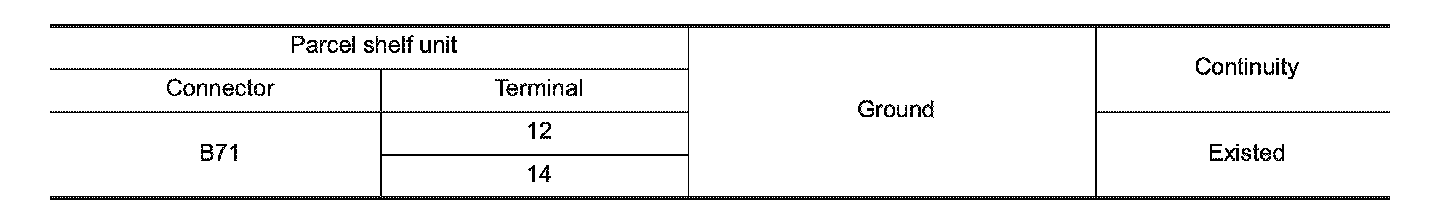

1. Check the continuity between parcel shelf unit harness connector and ground.





2. Check harness for short to ground.
Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK PARCEL SHELF MOTOR (DRAW) POWER SUPPLY
1. Turn ignition switch OFF.
2. Connect retractable hard top control unit connector.
3. Turn ignition switch ON.
4. Perform "ROOF/TRUNK/PARCEL SHELF" in "WORK SUPPORT" mode of "RETRACTABLE HARD TOP" using CONSULT-III ( Scan Tool Testing and Procedures).

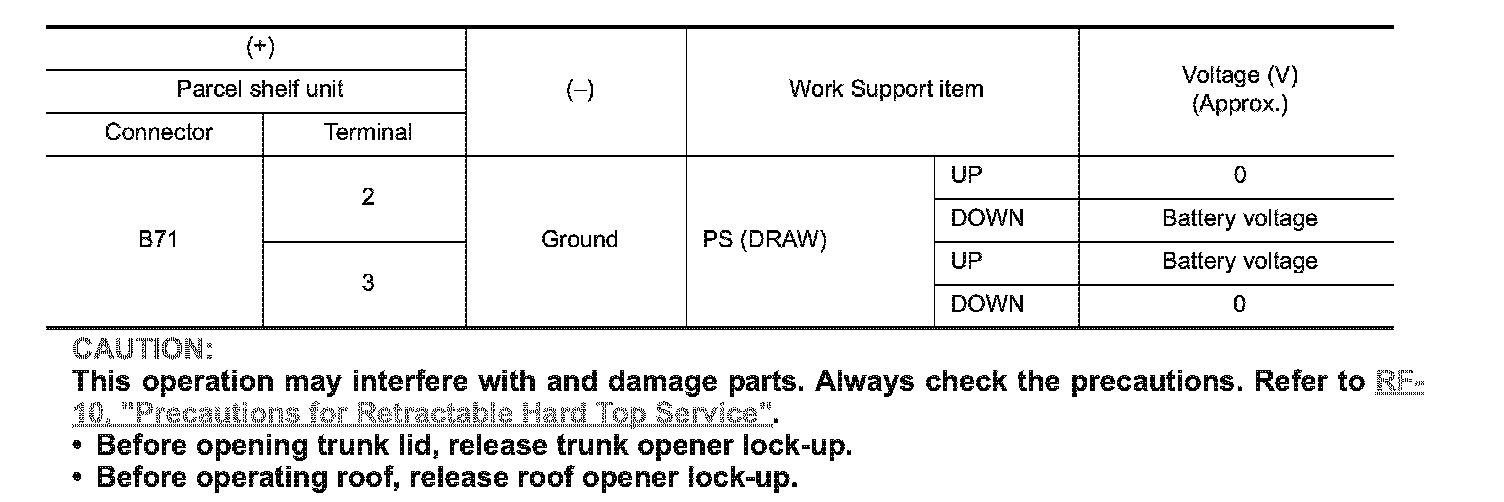

5. Check the voltage between parcel shelf unit harness connector and ground.






CAUTION:
This operation may interfere with and damage parts. Always check the precautions. RF10, "Precautions for Retractable Hard Top Service".
- Before opening trunk lid, release trunk opener lock-up.
- Before operating roof, release roof opener lock-up.
Is the inspection result normal?
YES - Replace parcel shelf unit. Removal And Installation.
NO - Replace retractable hard top control unit. Service and Repair.
