Trunk Closure Control Unit Trunk Lid Auto Closure System
Trunk Closure Control Unit Trunk Lid Auto Closure System
TRUNK CLOSURE CONTROL UNIT

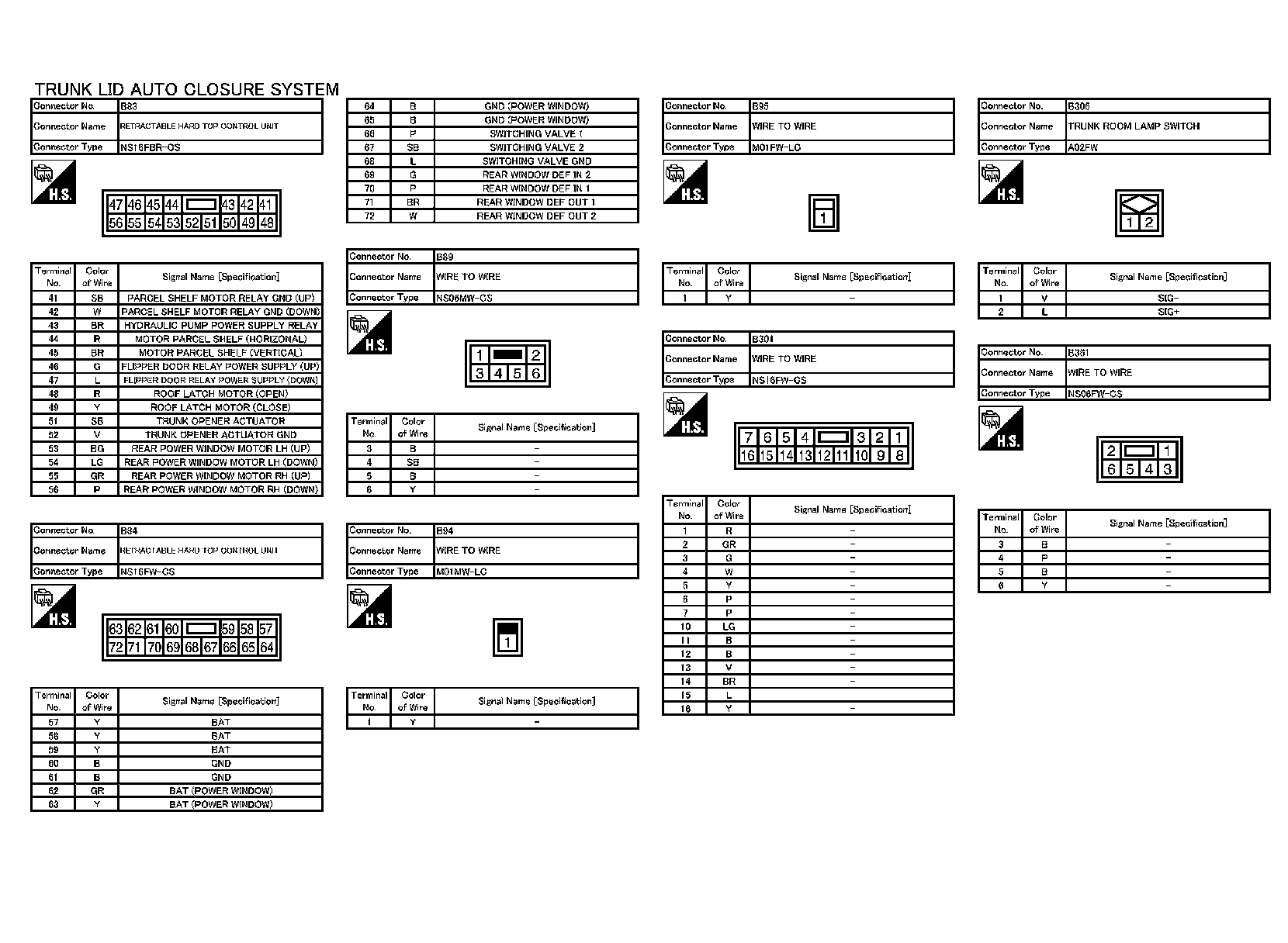

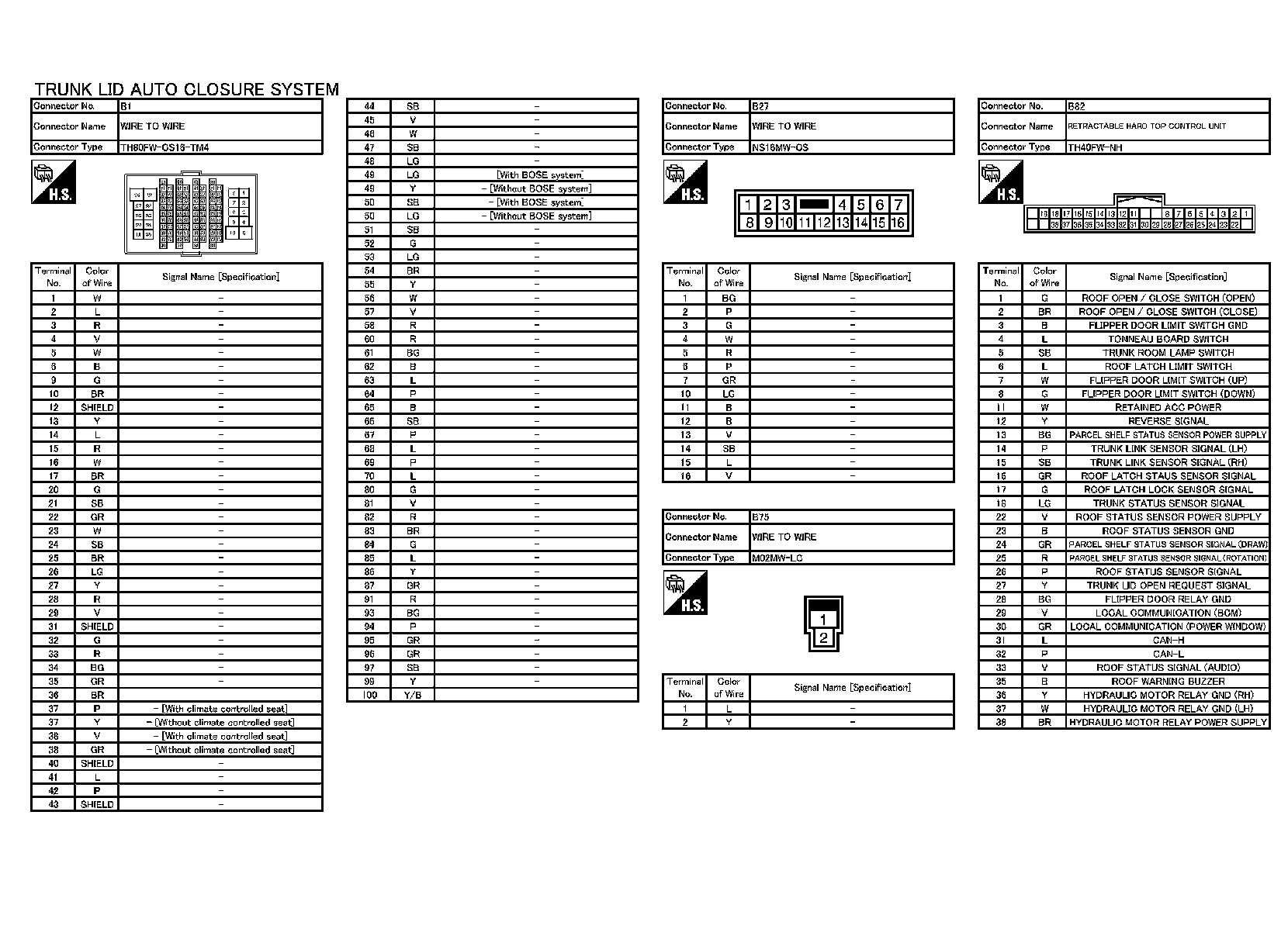

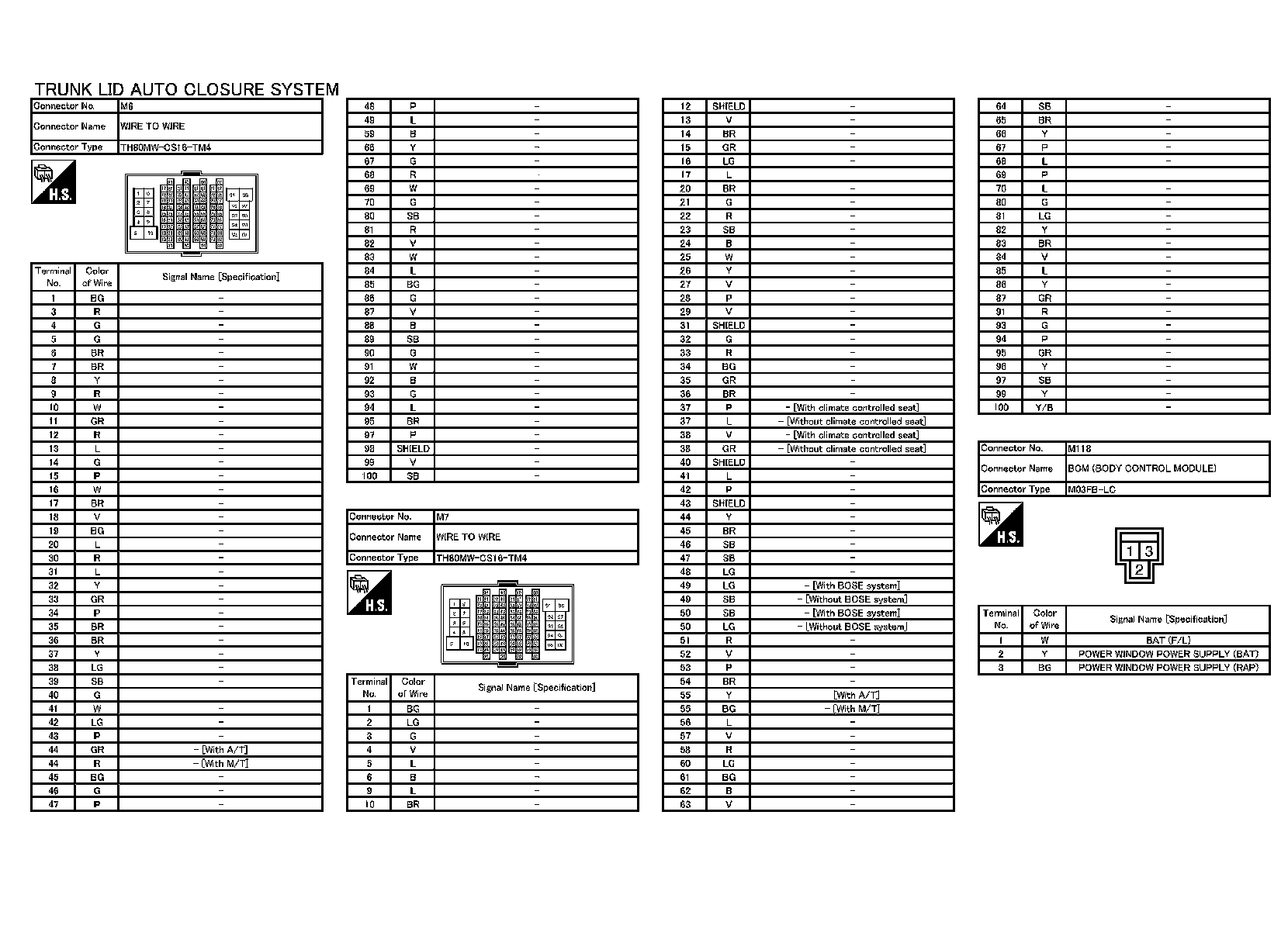

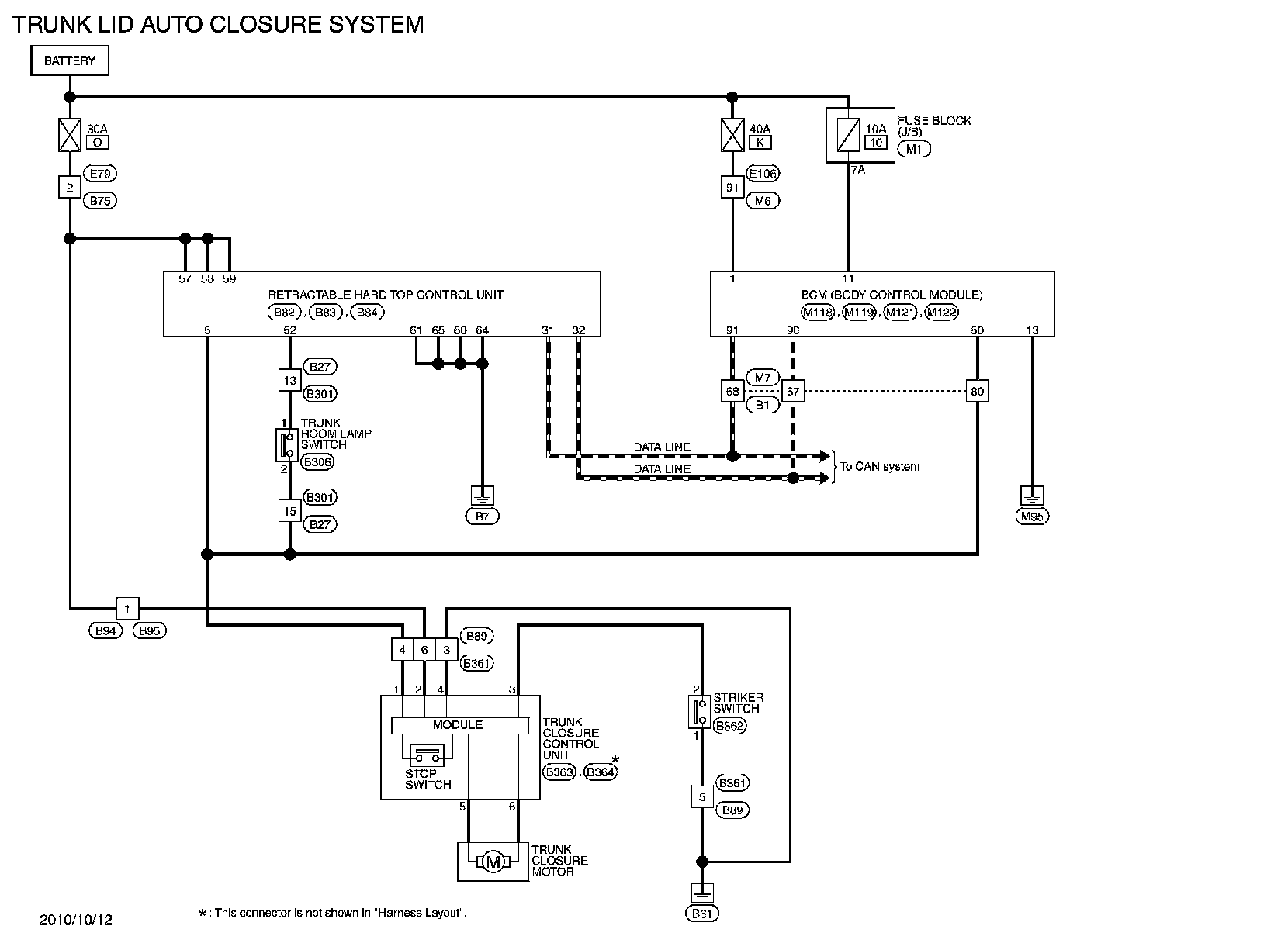

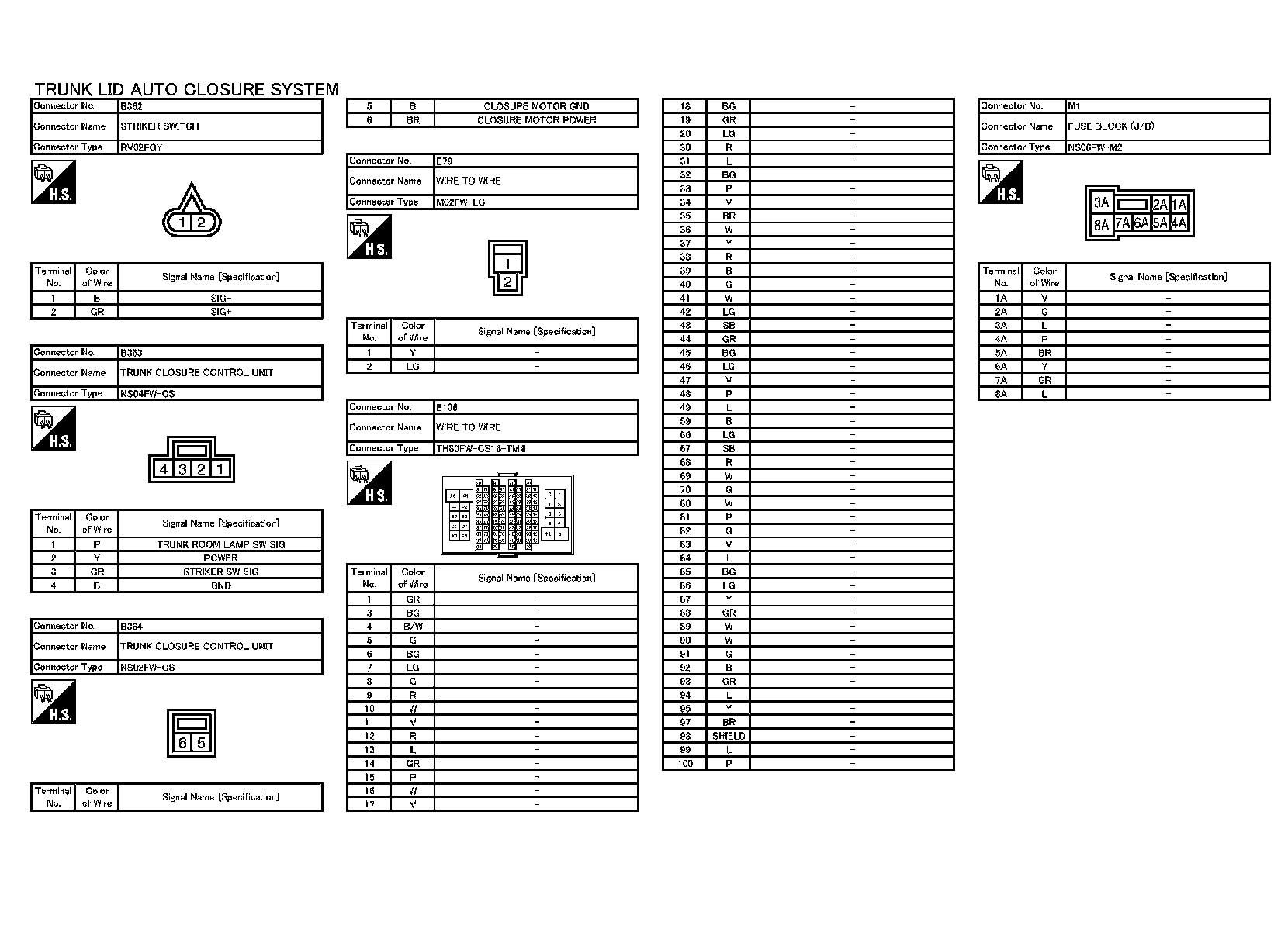

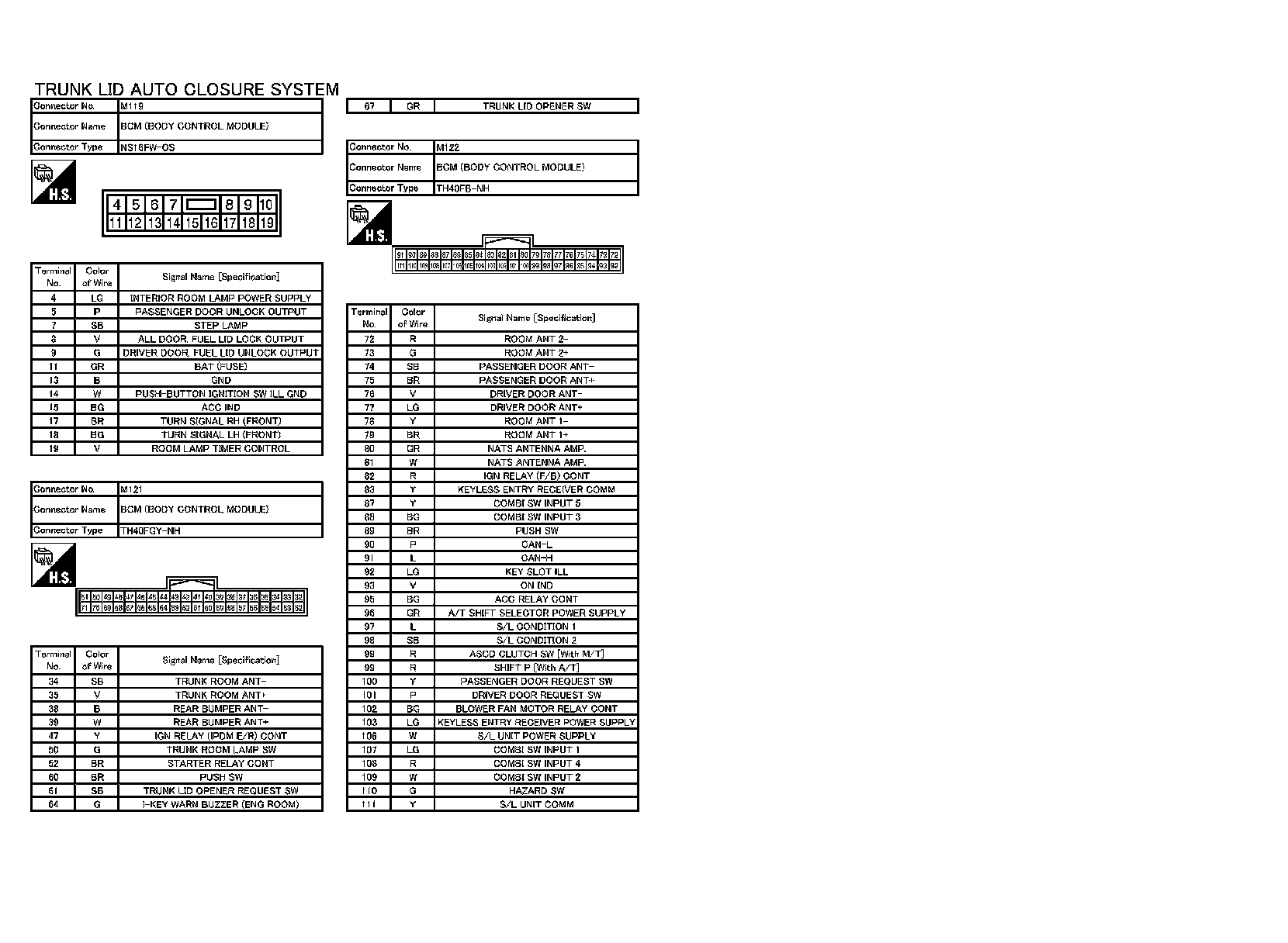

Wiring Diagram - TRUNK LID AUTO CLOSURE SYSTEM -
