Removal And Installation

REAR PARCEL SHELF FINISHER


REAR PARCEL SHELF UNIT : Removal and Installation


REMOVAL

CAUTION:
Protect the rear fender with a fender protector.

NOTE:
Operate roof manually if it does not operate electrically. .

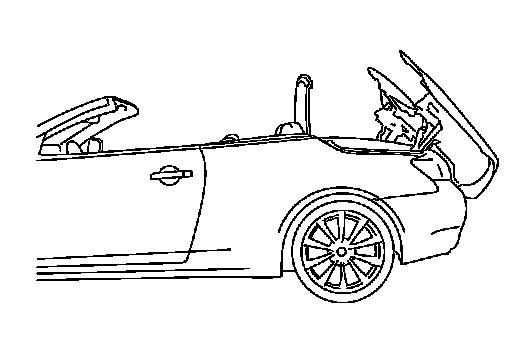

1. Stop roof as shown in the figure (during open operation).
2. Remove mounting bolts and nuts, and then remove rear parcel shelf finisher board.
3. Open trunk while roof is fully close.
4. Remove trunk trim. Removal And Installation.
5. Put matching mark on rear parcel shelf unit.
6. Disconnect rear parcel shelf unit harness connector.
7. Remove mounting bolts, and then remove rear parcel shelf unit.

INSTALLATION
Install in the reverse order of removal.

NOTE:
Perform initialization according to the work after installing rear parcel shelf unit. Refer to . Description
