G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Convertible Top Deck Lid Components
>>
Convertible Top Deck Lid Motor
>>
Service and Repair
>>
Parcel Shelf Motor (Draw)
>>

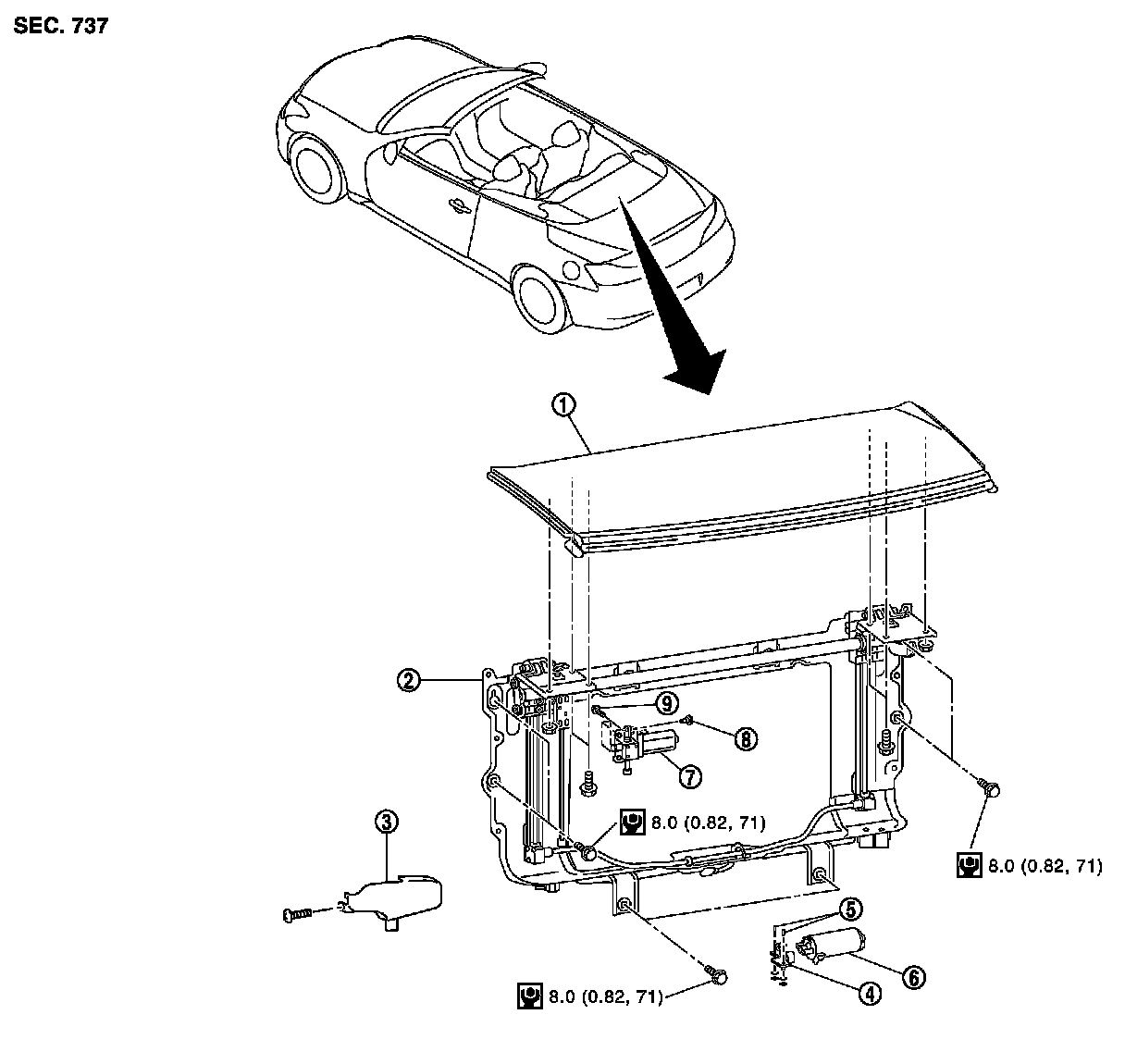

Exploded View
Exploded View

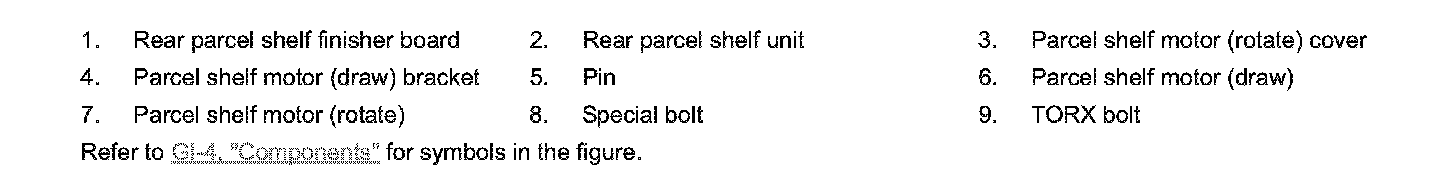

REAR PARCEL SHELF FINISHER
PARCEL SHELF MOTOR (DRAW) PARCEL SHELF MOTOR (DRAW) : Exploded View
