When SRS Is Not Activated In A Collision

COLLISION DIAGNOSIS


FOR FRONTAL COLLISION : When SRS is not activated in a collision


CAUTION:
Due to varying models and option levels, not all parts listed in the chart below apply to all vehicles.

WORK PROCEDURE
1. Before performing any of the following steps, ensure that all vehicle body and structural repairs have been completed.
2. Check the SRS components using the table below:
Replace any SRS components showing visible signs of damage. (dents, cracks and deformation, etc.)
3. Perform self-diagnosis using CONSULT or air bag warning lamp. Scan Tool Testing and Procedures or Diagnosis With Air Bag Warning Lamp for details. Ensure entire SRS operates properly.
4. After the work is completed, perform self-diagnosis to check that no malfunction is detected. Diagnosis Description.

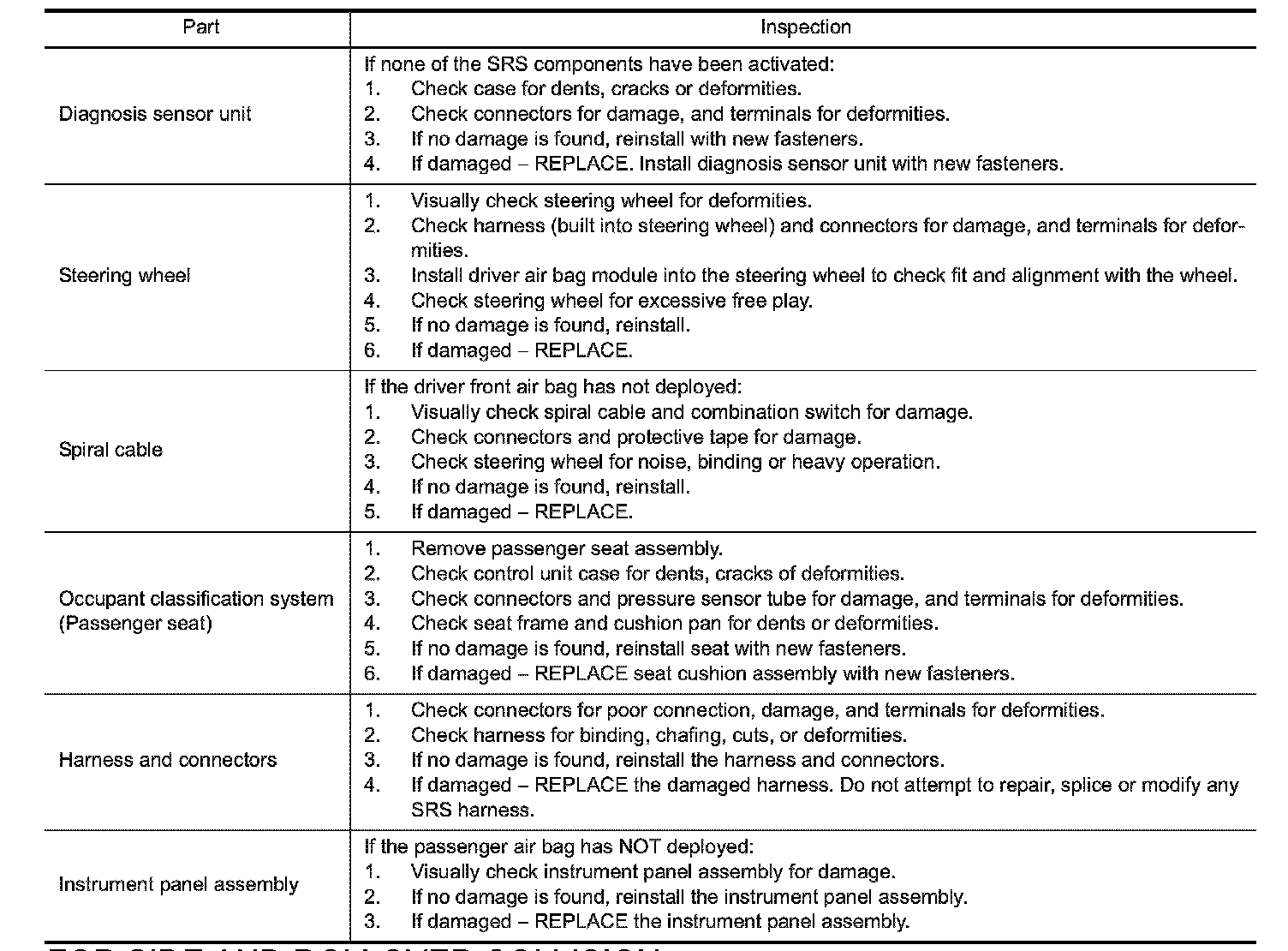

SRS INSPECTION (FOR FRONTAL COLLISION)
