Removal And Installation

INSIDE MIRROR


Removal and Installation


CAUTION:
Never reuse the inside mirror disassembled from mirror base.

REMOVAL

Manual anti-dazzling type





Slide the inside mirror upward to remove.

NOTE:

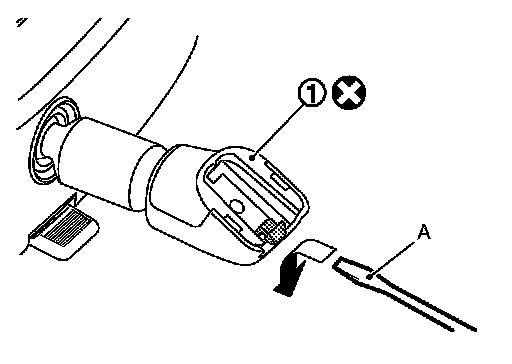

Insert flat-bladed screwdriver (A) under the inside mirror (1).
Slide the inside mirror to the upper side while pushing the pawl downward.

CAUTION:
Never use excessive force to remove the inside mirror because it is inserted tightly into the mirror base.

Auto anti-dazzling type
1. Remove inside mirror cover (upper/lower).
2. Disconnect harness connector from inside mirror.
3. Loosen TORX bolt and slide inside mirror upward to remove.

INSTALLATION
Install in the reverse order of removal.
