Driver Seat Control Unit

POWER SUPPLY AND GROUND CIRCUIT - DRIVER SEAT CONTROL UNIT





Diagnosis Procedure

NOTE:
Do not disconnect the battery negative terminal and the driver seat control unit connector until DTC is confirmed using CONSULT-III.
1.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.

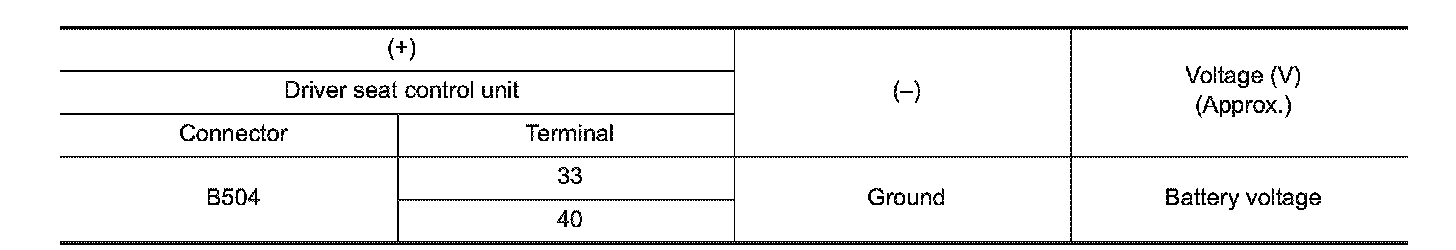

2. Check voltage between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Check the following.
- Repair or replace harness between driver seat control unit and fuse block (J/B).
- Circuit breaker.
2.CHECK GROUND CIRCUIT

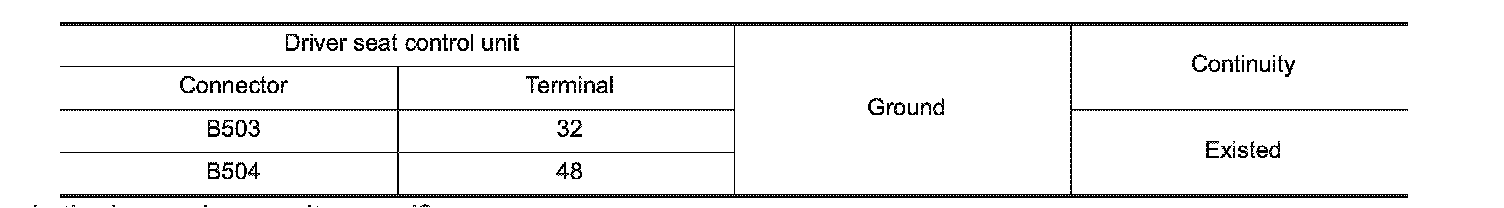

Check continuity between the driver seat control unit harness connector and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Repair or replace harness.




Special Repair Requirement
1.PERFORM ADDITIONAL SERVICE
Perform additional service when removing battery negative terminal.
- SEE Diagnosis Procedure.
