Power Seat Switch Ground Circuit

POWER SEAT SWITCH GROUND CIRCUIT





Diagnosis Procedure
1.CHECK POWER SEAT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power seat switch connector.

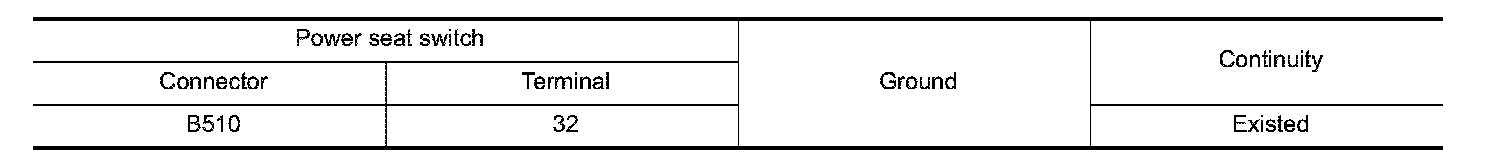

3. Check continuity between power seat switch connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace harness.
2.CHECK POWER SEAT SWITCH INTERNAL CIRCUIT
Check reclining switch. Reclining Switch.
Is the inspection result normal?
YES - GO TO 3.
NO - Replace power seat switch. Removal And Installation.
3.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
