Door Mirror System
DOOR MIRROR SYSTEM

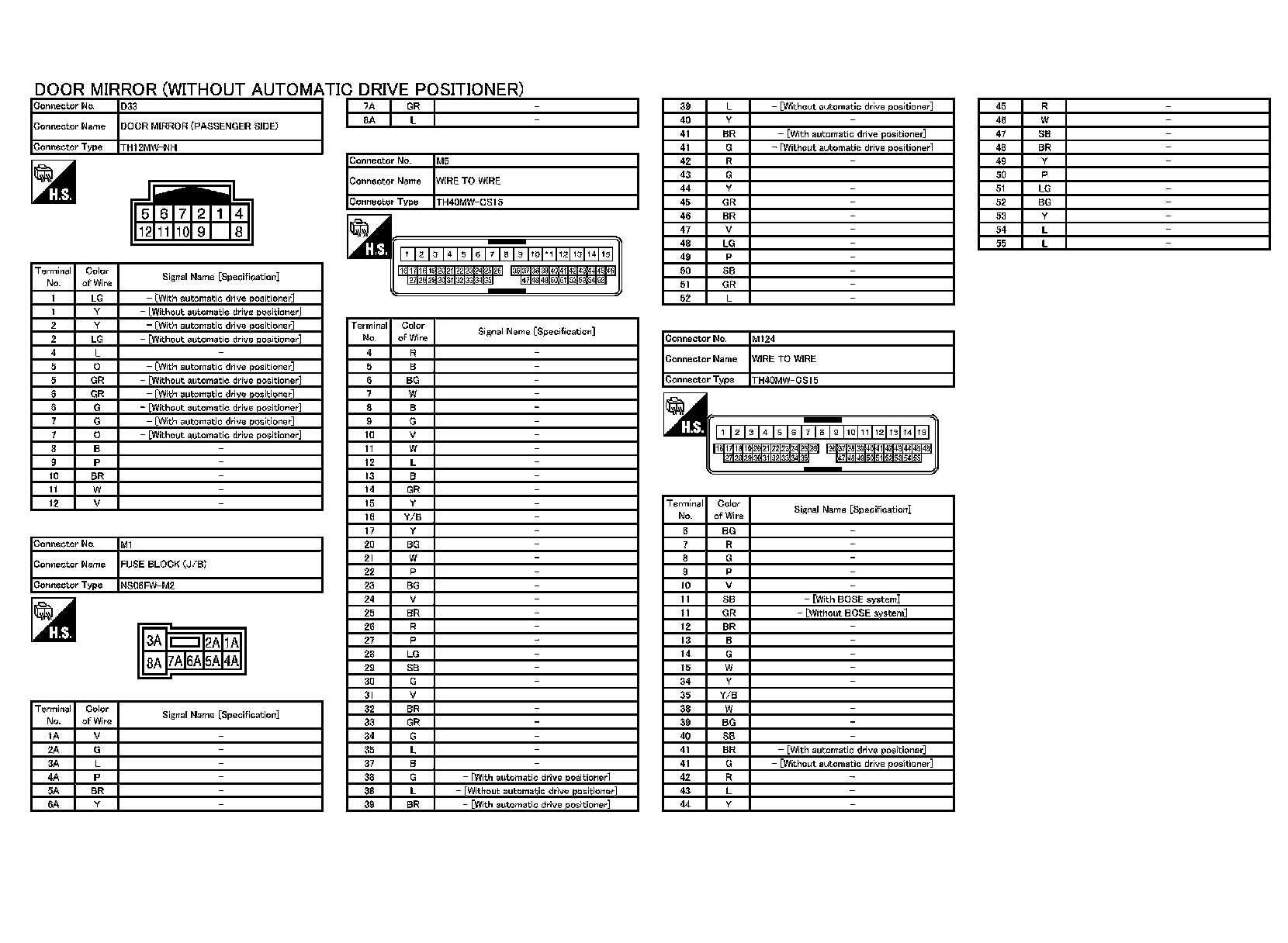

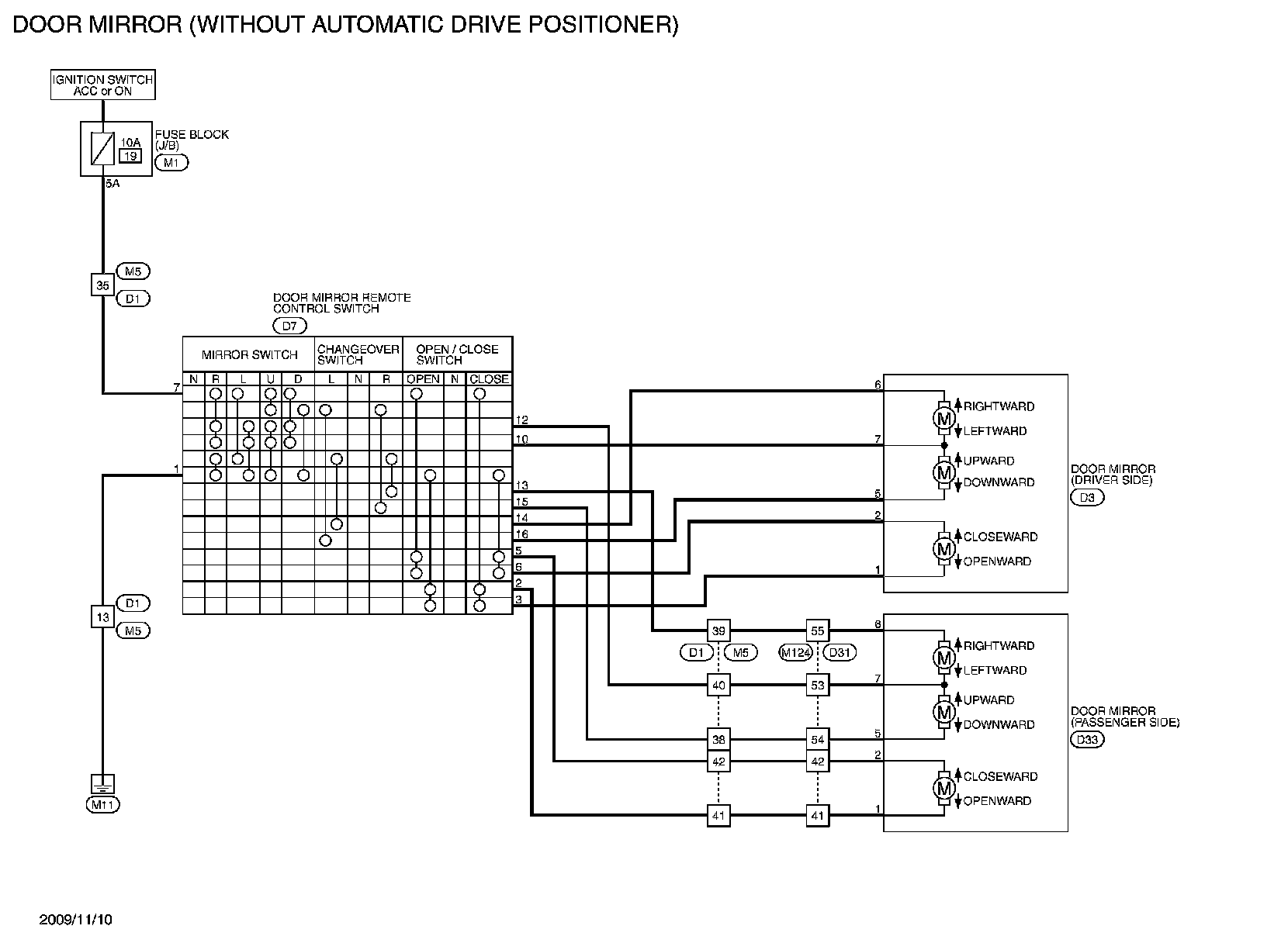

Wiring Diagram - DOOR MIRROR SYSTEM (WITHOUT AUTOMATIC DRIVE POSITIONER) -
