Auto Anti-Dazzling Inside Mirror System
Auto Anti-Dazzling Inside Mirror System
AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM

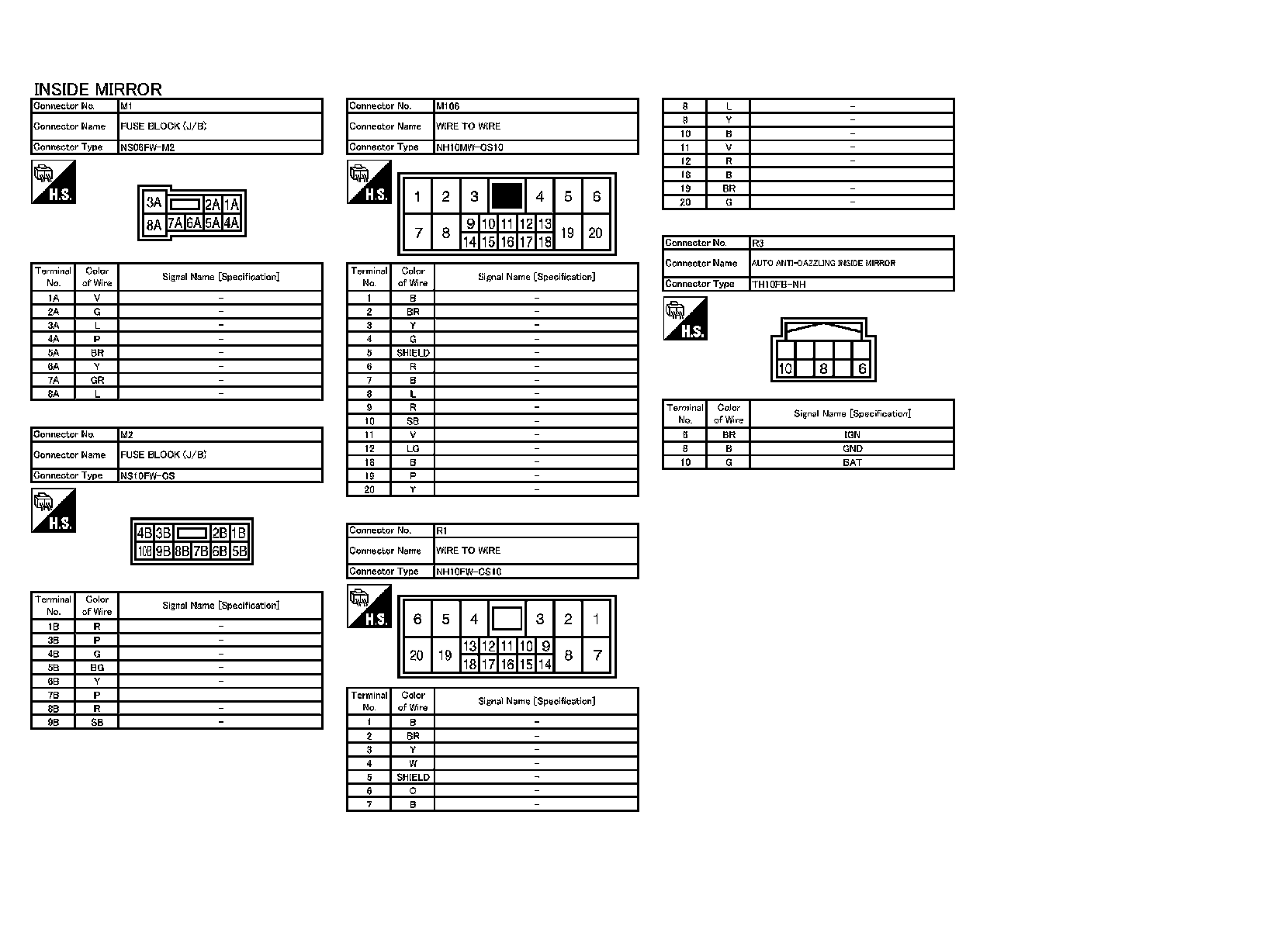

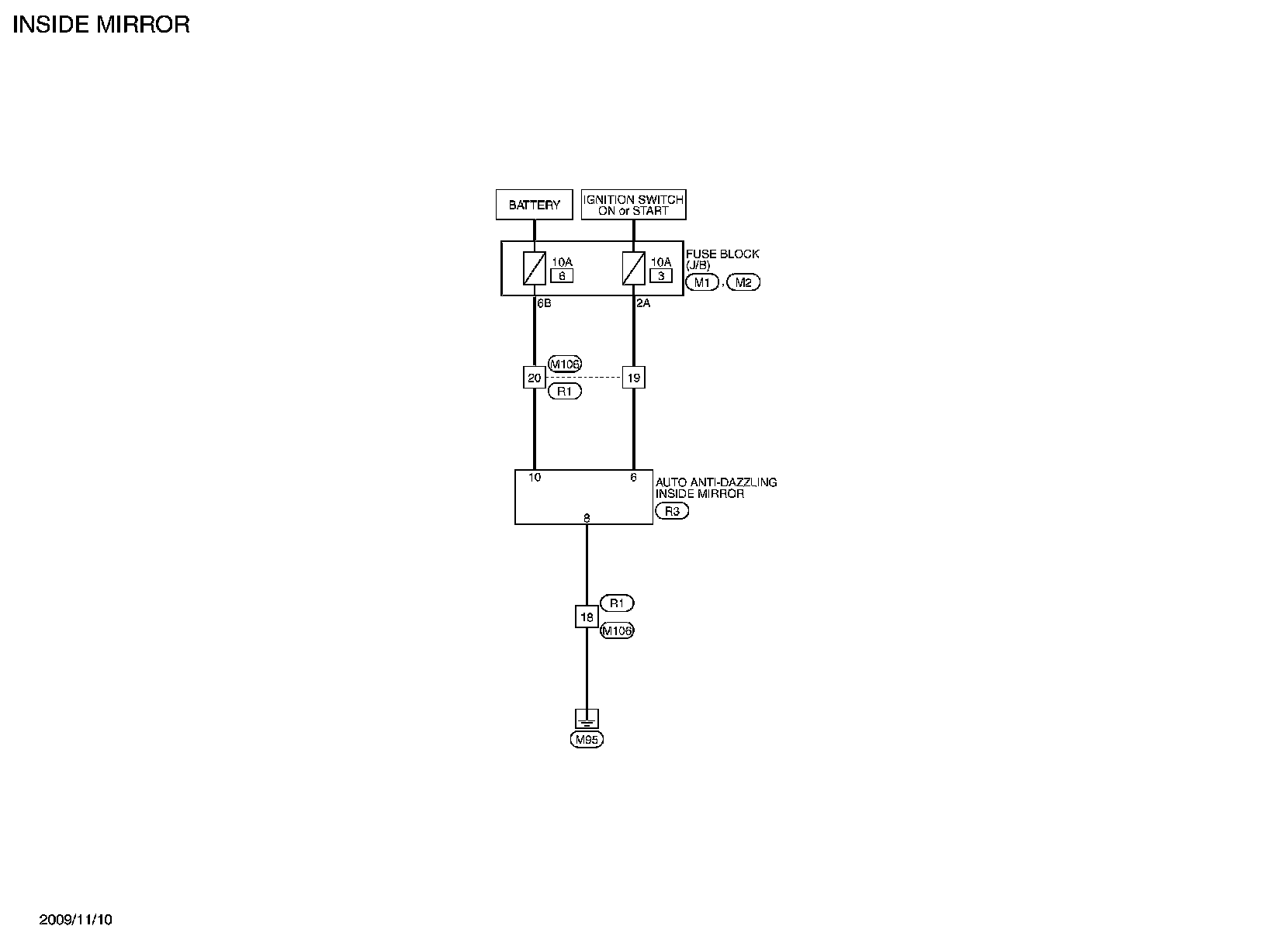

Wiring Diagram - INSIDE MIRROR SYSTEM -
