Door Switch

DOOR SWITCH





Description
Detects door open/close condition.




Component Function Check
1.CHECK FUNCTION

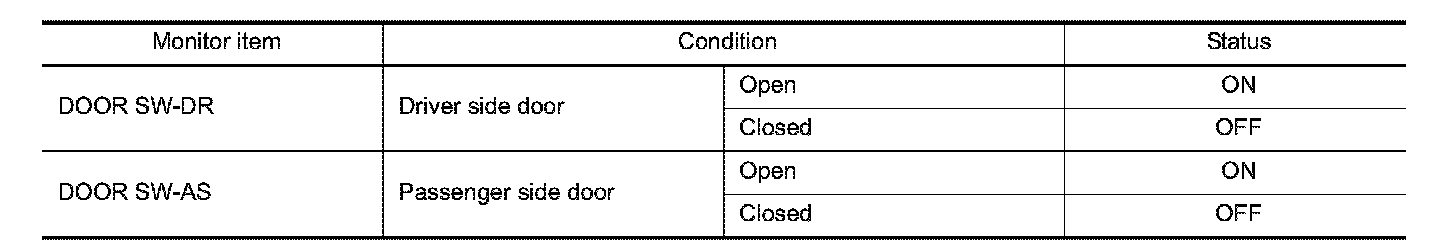

Check ("DOOR SW-DR" or "DOOR SW-AS") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Door switch is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK DOOR SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect malfunctioning door switch connector.
3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.






Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK DOOR SWITCH CIRCUIT
1. Disconnect BCM connector.

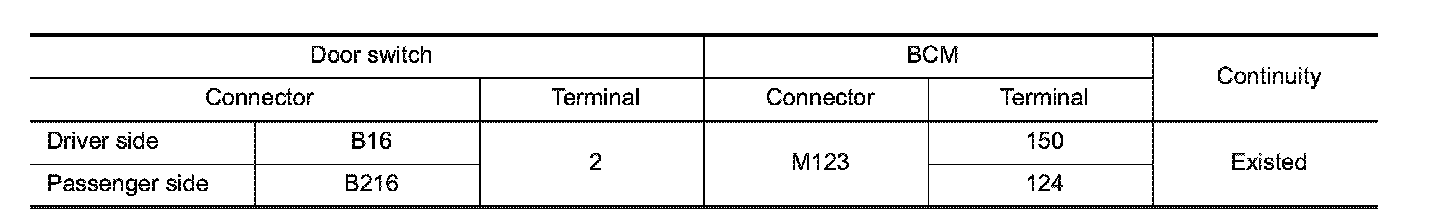

2. Check continuity between door switch harness connector and BCM harness connector.

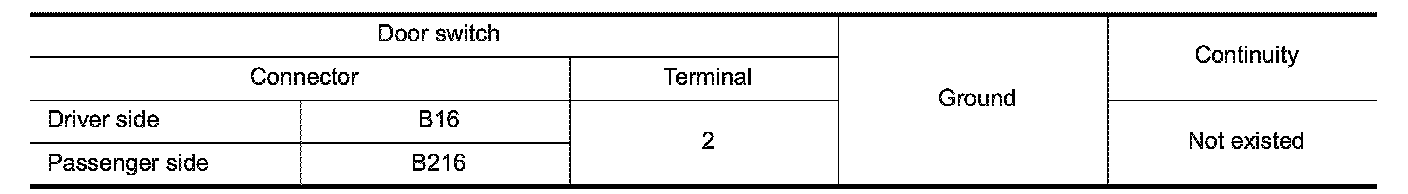

3. Check continuity between door switch harness connector and ground.





Is the inspection result normal?
YES - Replace BCM. Removal And Installation.
NO - Repair or replace harness.
3.CHECK DOOR SWITCH GROUND CIRCUIT

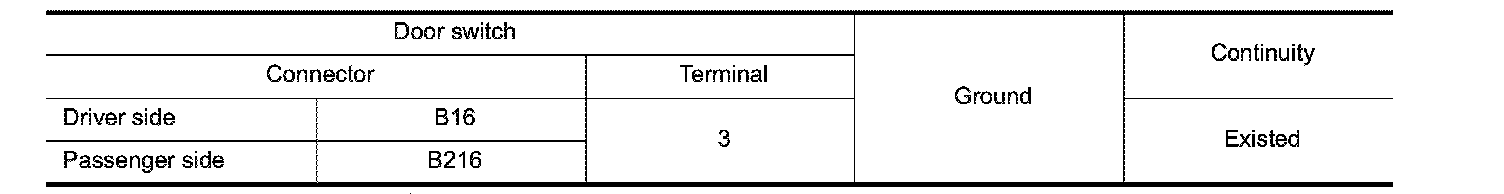

Check continuity between door switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK DOOR SWITCH
SEE Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace malfunctioning door switch. Removal And Installation.
5.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END




Component Inspection
1.CHECK DOOR SWITCH
1. Turn ignition switch OFF.
2. Disconnect malfunctioning door switch connector.

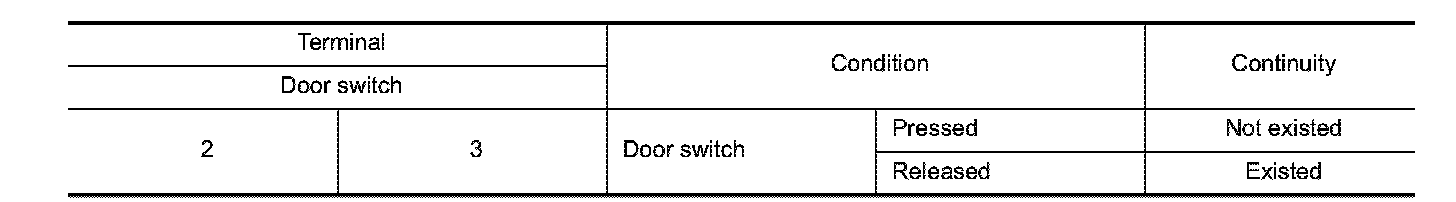

3. Check continuity between door switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace malfunction door switch. Removal And Installation.
