DOOR LOCK AND UNLOCK SWITCH - PASSENGER SIDE





Description
Transmits door lock/unlock operation to BCM.




Component Function Check
1.CHECK FUNCTION

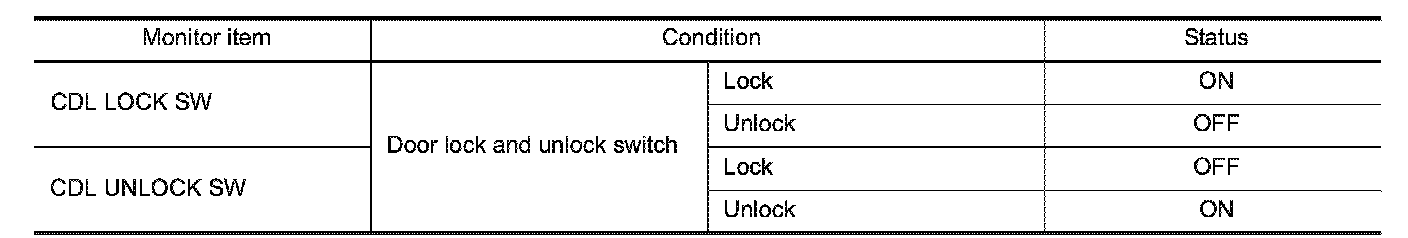

Check ("CDL LOCK SW ", "CDL UNLOCK SW") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Door lock and unlock switch is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK POWER WINDOW SWITCH
1. Turn ignition switch ON.
2. Check passenger side power window operation.
Does power window (passenger side) operate?
YES - Replace power window sub-switch. Service and Repair.
NO - Passenger Side Power Window Alone Does Not Operate.
