Intelligent Key

INTELLIGENT KEY





Description
The following functions are available when having and carrying electronic ID.
- Door lock/unlock
- Engine start
Remote control entry function and panic alarm function are available when operating on button.




Component Function Check
1.CHECK FUNCTION

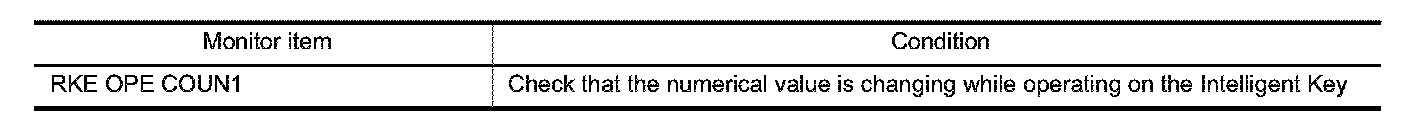

Check ("RKE OPE COUN1") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Intelligent Key is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK INTELLIGENT KEY BATTERY

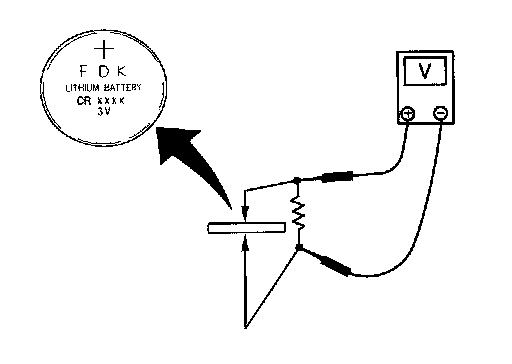

Check by connecting a resistance (approximately 300Ohm(s)) so that the current value becomes about 10 mA. Service and Repair.

Standard : Approx. 2.5 - 3.0V

Is the measurement value within the specification?
YES - Replace Intelligent Key.
NO - Replace Intelligent Key battery.
