Removal And Installation





REMOTE KEYLESS ENTRY RECEIVER


Removal and Installation


REMOVAL
1. Remove the instrument assist lower panel. Removal And Installation A/T Models.

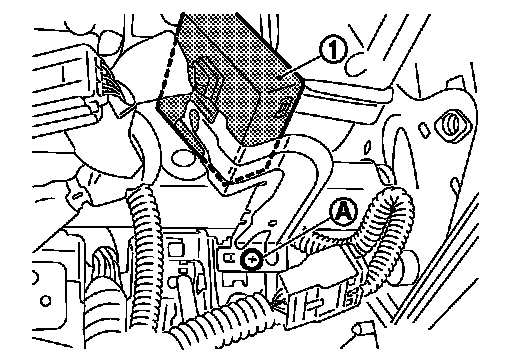

2. Remove the remote keyless entry receiver mounting bolt (A), and then remove remote keyless entry receiver (1).

INSTALLATION
Install in the reverse order of removal.
