Home >> Infiniti >> 2011 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Antenna - Keyless Entry >> Service and Repair >> Inside Key Antenna >> Trunk Room >> Removal And Installation

Removal And Installation





INSIDE KEY ANTENNA


TRUNK ROOM : Removal and Installation


REMOVAL
1. Remove trunk floor carpet and trunk front finisher. Removal And Installation.

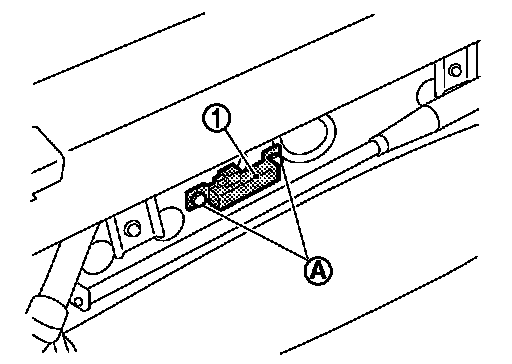

2. Remove the inside key antenna (trunk room) mounting clips (A), and then remove inside key antenna (trunk room) (1).

INSTALLATION
Install in the reverse order of removal.
