Removal And Installation

INSIDE KEY ANTENNA


CONSOLE : Removal and Installation


REMOVAL
1. Remove the console ashtray.

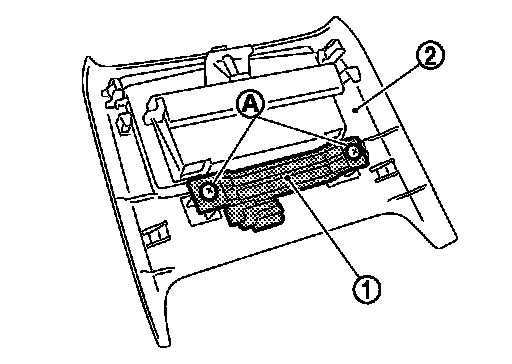

2. Remove the console rear finisher (2). Removal And Installation A/T Models.





3. Remove the inside key antenna mounting screw (A), and then remove inside key antenna (console) (1) from console rear finisher.

INSTALLATION
Install in the reverse order of removal.
