Removal And Installation

HEADLINING


Removal and Installation


REMOVAL
1. Remove body side welt (LH/RH) and front pillar garnish (LH/RH). Removal And Installation.
2. Remove sunvisor assembly (LH/RH).
- Remove sunvisor cover.
- Remove sunvisor assembly fixing screws.
- Disconnect vanity mirror lamp harness connectors.

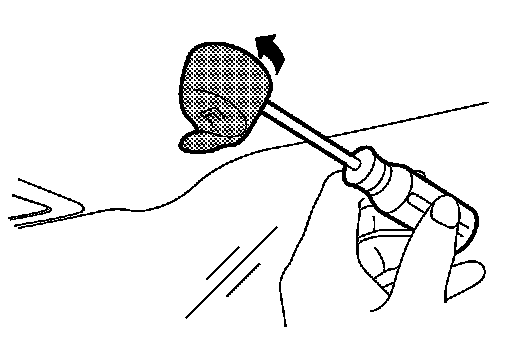

3. Insert small flat-bladed screwdriver into the hole of sunvisor holder, press while rotating approximately 90 degrees to remove.
4. Remove map lamp assembly.

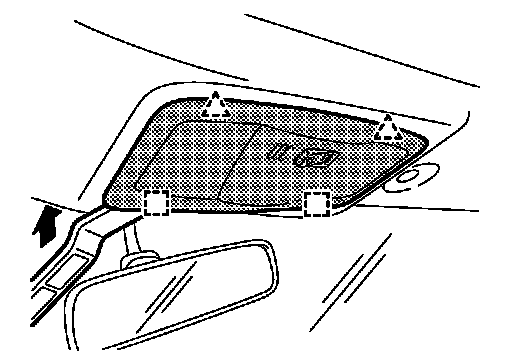

- Insert remover tool between map lamp assembly and roof front finisher assembly to disengage the fixing pawls and metal clips.
- Disconnect map lamp harness connector.
- Remove map lamp assembly.

Triangle: Pawl
Square: Metal Clip

5. Remove the roof front finisher mounting bolt.

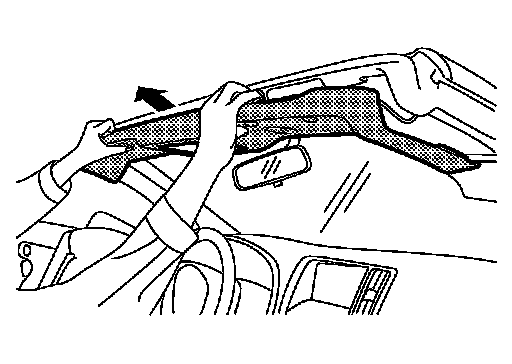

6. Remove roof front finisher as shown in the figure.

CAUTION:
Never bend roof front finisher when removing.
7. Remove map lamp bracket after removing roof front finisher.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
Never bend roof front finisher when installing.
