Removal And Installation A/T Models

CENTER CONSOLE ASSEMBLY


A/T MODELS : Removal and Installation


CAUTION:
When removing, always use a remover tool that is made of plastic.

REMOVAL
1. Put selector lever in drive position.
2. Remove selector lever knob. Removal And Installation.





3. Remove instrument finisher E.

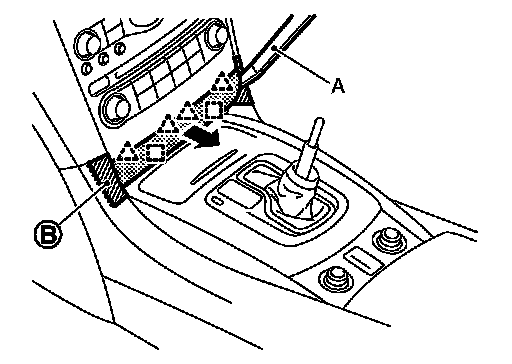

1. Insert a remover tool (A) between instrument panel assembly and instrument finisher E, and then disengage pawls and metal clips.
2. Pull back instrument finisher E.

CAUTION:
Apply protective tape (B) on the part to protect from damage.

Triangle: Pawl
Square: Metal Clip






4. Remove console finisher assembly.

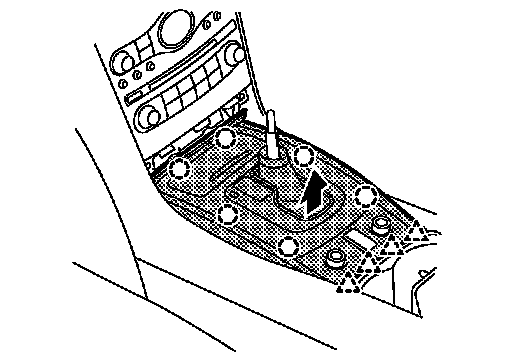

1. Remove pawls from rear of console finisher assembly, and then remove clips of front.
2. Pull console finisher assembly upward to disengage from center console assembly.
3. Disconnect harness connectors.

Circle: Clip
Triangle: Pawl

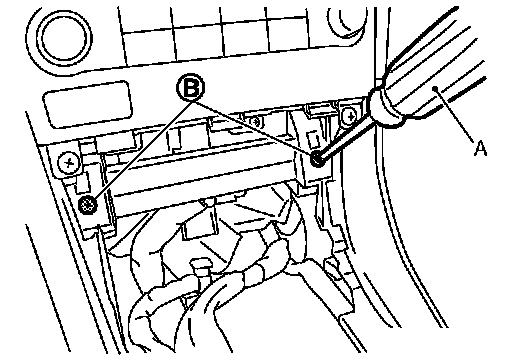

5. Remove screws (B) of center console assembly front side with screw driver (A).





6. Remove console center finisher.

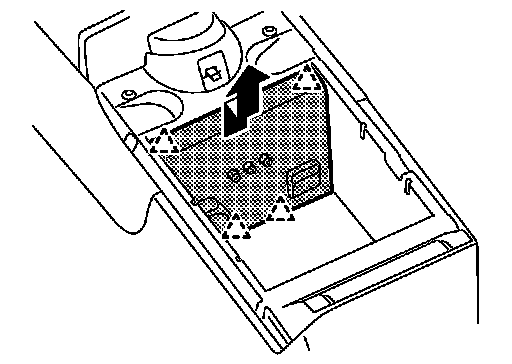

1. Pull up console center finisher, and disengage pawls.
2. Disconnect harness connectors.

Triangle: Pawl






7. Remove console rear finisher.

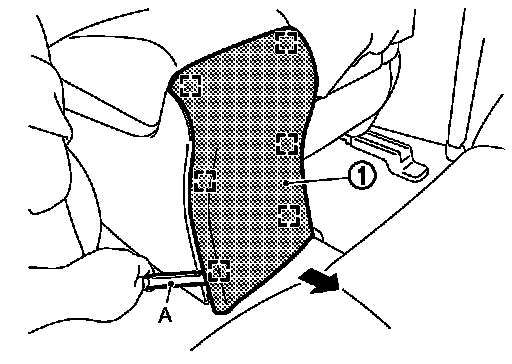

1. Pull back console rear finisher (1) by using a remover tool
(A), then disengage pawls and metal clips.
2. Disconnect inside key antenna connector.

Square: Metal Clip

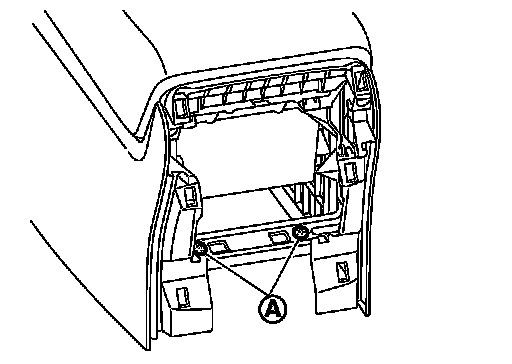

8. Remove center console assembly mounting screws (A).
9. Remove center console assembly.
1. Lift up center console assembly back side.
2. Disconnect harness connectors.

INSTALLATION
Install in the reverse order of removal.
