Exploded View A/T Models

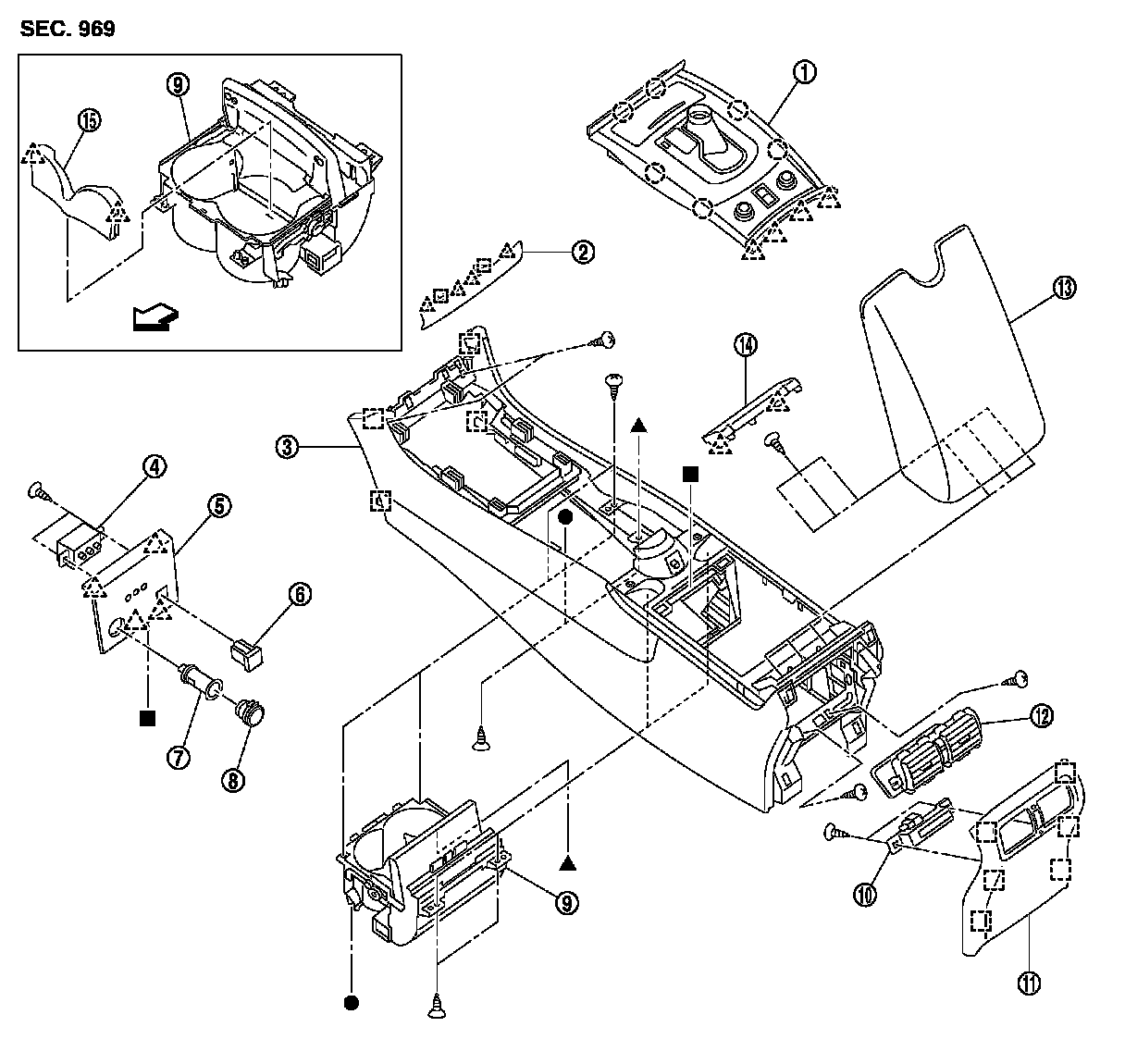

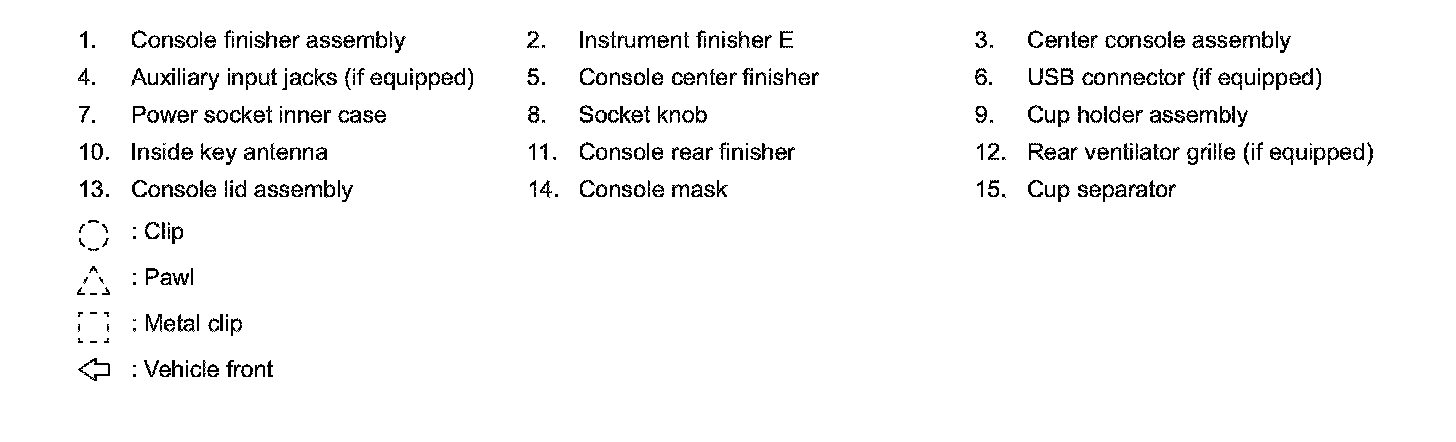

CENTER CONSOLE ASSEMBLY


A/T MODELS A/T MODELS : Exploded View

CENTER CONSOLE ASSEMBLY

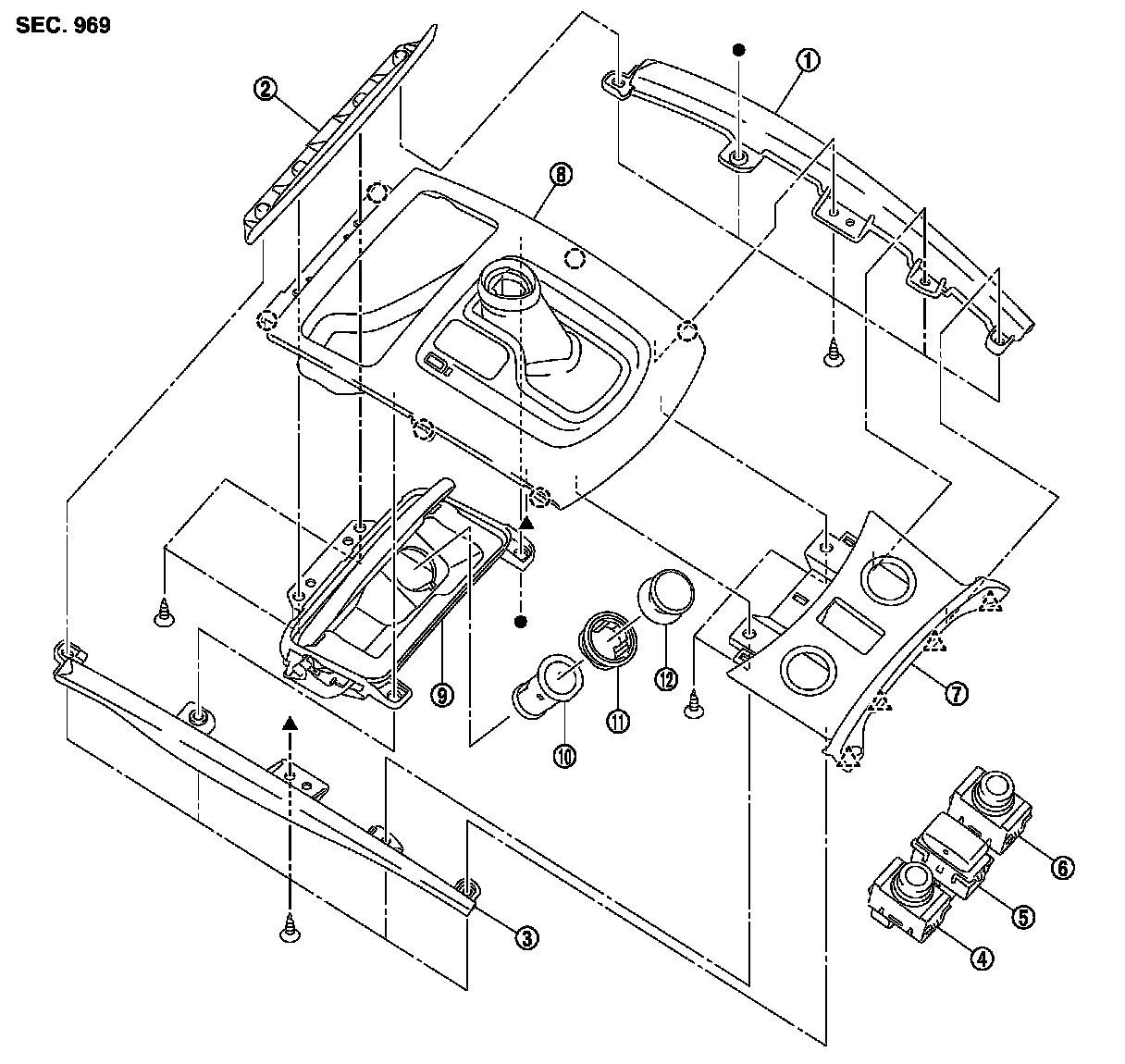

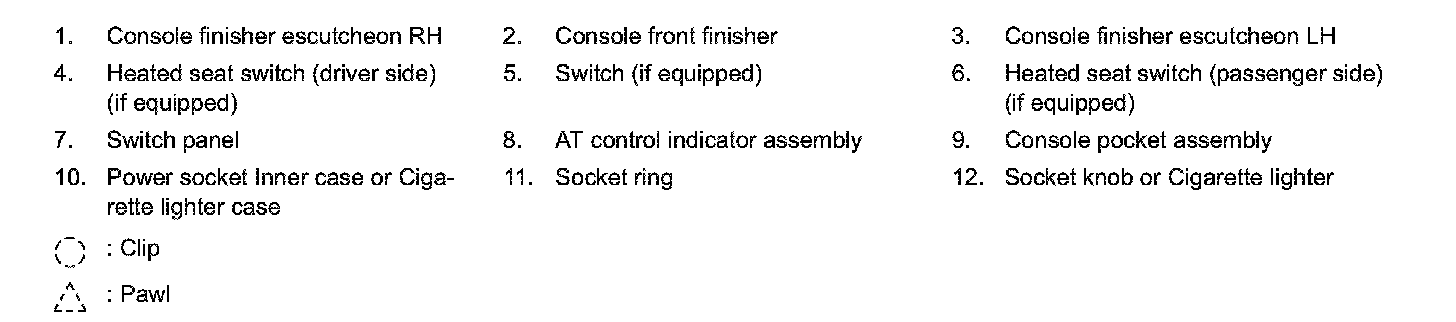

CONSOLE FINISHER ASSEMBLY
