Disassembly And Assembly A/T Models

CENTER CONSOLE ASSEMBLY


A/T MODELS : Disassembly and Assembly


CAUTION:
When disassembling, always use a remover tool that is made of plastic.

DISASSEMBLY
1. Remove center console assembly. Removal And Installation A/T Models.

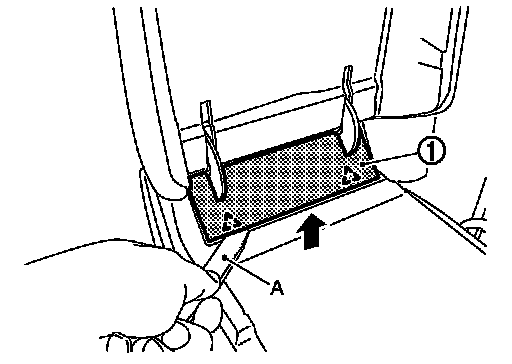

2. Remove console mask.
1. Open the console lid.
2. Remove console mask (1) fixing pawls with remover tool
(A).

Triangle: Pawl

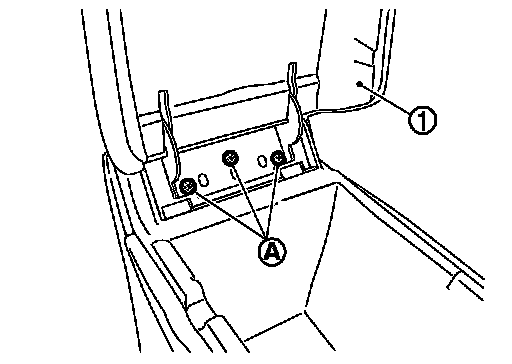

3. Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.

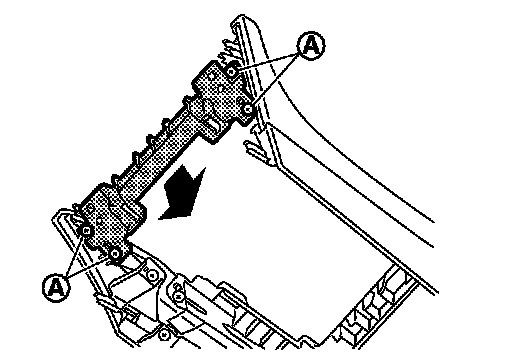

4. Remove console front bracket.
1. Remove console front bracket fixing screws (A).
2. Pull the console front bracket toward the direction of the arrow.

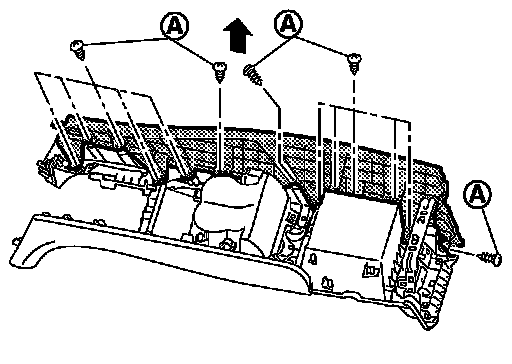

5. Remove console body RH.
1. Remove console body RH fixing screws (A).
2. Pull the console body RH toward the direction of the arrow.

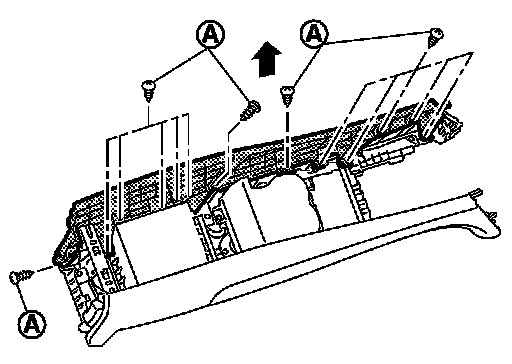

6. Remove console body LH.
1. Remove console body LH fixing screws (A).
2. Pull the console body LH toward the direction of the arrow.

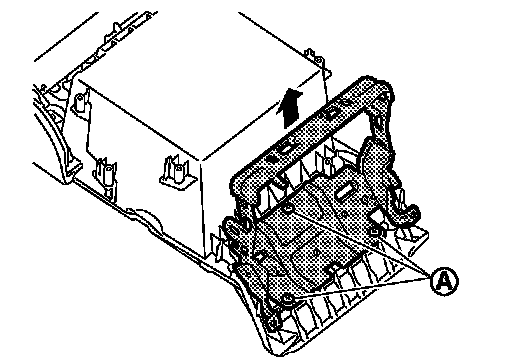

7. Remove console reinforcement.
1. Remove console reinforcement fixing screws (A).
2. Pull the console reinforcement toward the direction of the arrow.

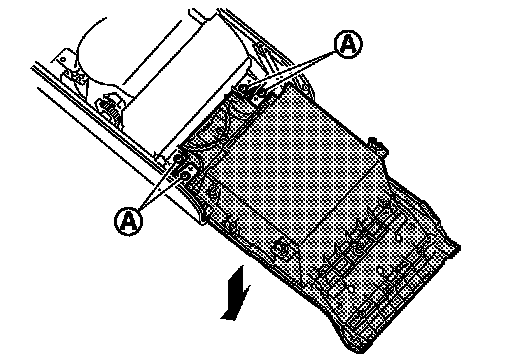

8. Remove console box assembly.
1. Remove console box assembly fixing screws (A).
2. Pull the console box assembly toward the direction of the arrow.

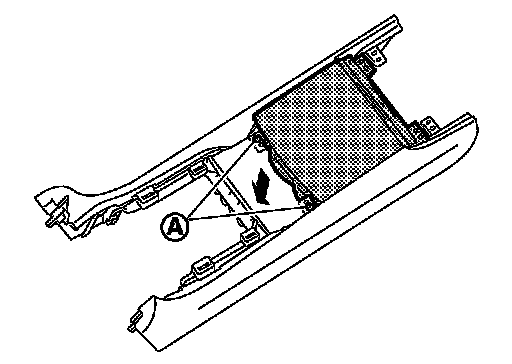

9. Remove cup holder assembly.
1. Remove cup holder assembly fixing screws (A).
2. Pull the cup holder assembly toward the direction of the arrow.

ASSEMBLY
Assemble in the reverse order of disassembly.
