Removal And Installation

FRONT GRILLE


Removal and Installation


REMOVAL

CAUTION:
Apply protection tape around outer circumference of front grille (bumper fascia side).
1. Fully open hood assembly.
2. Remove reservoir tank. Exploded View.
3. Remove radiator core support ornament. Removal and Installation.

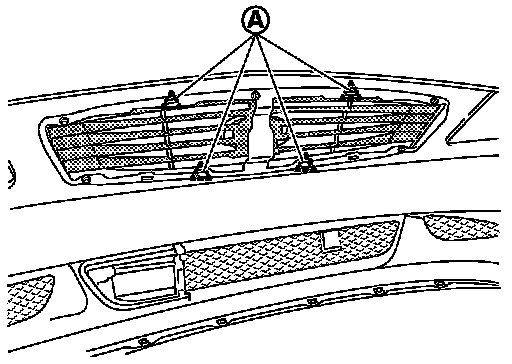

4. Remove front grille mounting nuts (A).





5. Disengage pawls (A) of fixing front grille.

Triangle: Pawl

6. Pull front grille out toward vehicle front.
7. Remove the following parts after removing front grille.
Front emblem

INSTALLATION
Install in the reverse order of removal.
