Hood Shock / Support: Service and Repair

HOOD


HOOD ASSEMBLY : Disposal


DISPOSAL OF HOOD STAY

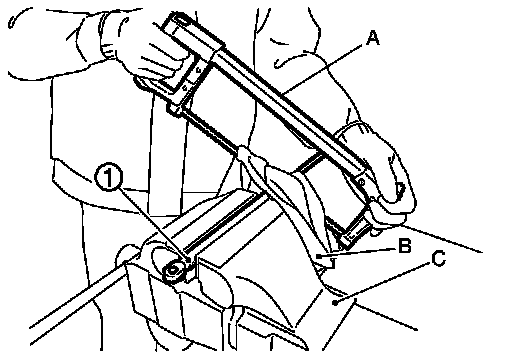

1. Fix hood stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the hood stay, in numerical order as shown in the figure.

CAUTION:
- When cutting a hole on hood stay, always cover a hacksaw using a shop cloth (B) to avoid scattering metal fragments or oil.
- Wear eye protection (safety glasses).
- Wear gloves.

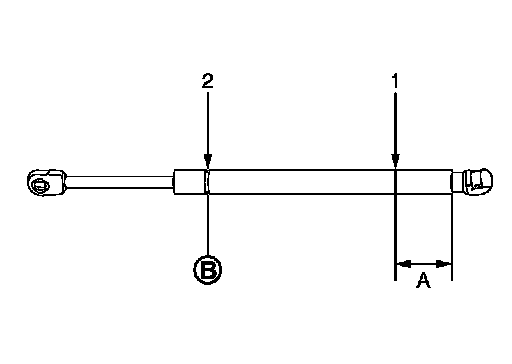

A: 20 mm (0.787 in)
B: Cut at the groove.
