Component Tests and General Diagnostics

FUEL LID LOCK ACTUATOR





Description
Locks/unlocks the fuel filler lid with the signal from BCM.




Component Function Check
1.CHECK FUNCTION
1. Use CONSULT-III to perform BCM "Active Test" ("DOOR LOCK").
2. Touch "ALL LOCK" or "ALL UNLOCK" to check that it works normally.
Is the inspection result normal?
YES - Fuel lid lock actuator is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK FUEL LID LOCK ACTUATOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect fuel lid lock actuator connector.

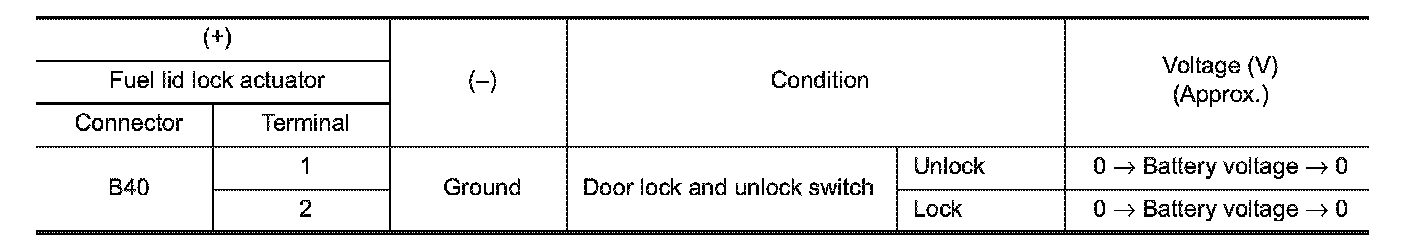

3. Check voltage between fuel lid lock actuator harness connector and ground.





Is the inspection result normal?
YES - Replace fuel lid lock actuator. Fuel Filler Lid Opener.
NO - GO TO 2.
2.CHECK FUEL LID LOCK ACTUATOR CIRCUIT
1. Disconnect BCM connector and all door lock assembly connector.

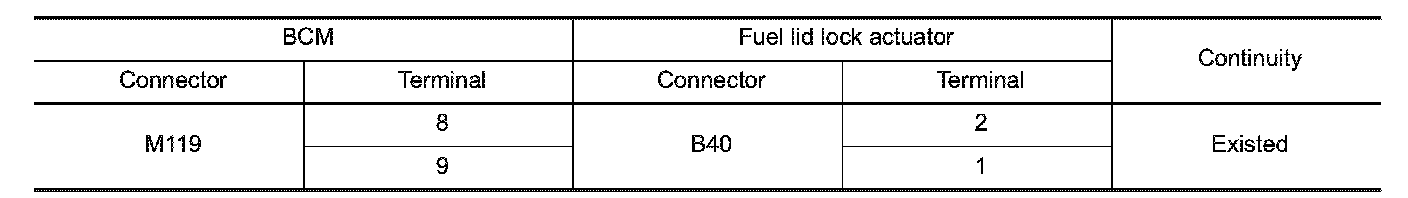

2. Check continuity between BCM harness connector and fuel lid lock actuator harness connector.

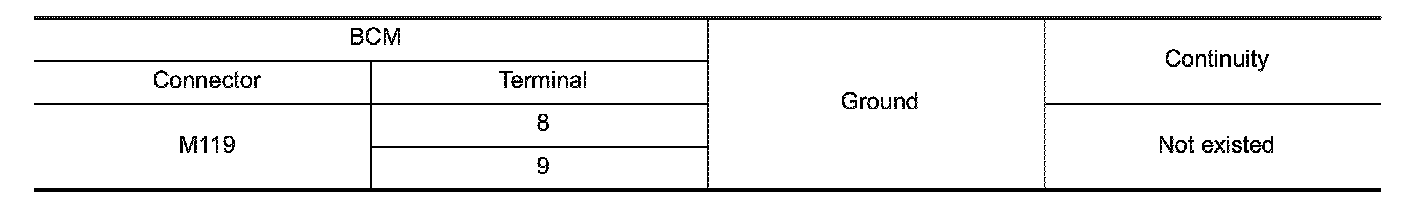

3. Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES - Replace BCM. Removal And Installation.
NO - Repair or replace harness.
