Fuel Filler Lid Opener

FUEL FILLER LID OPENER


Removal and Installation


REMOVAL
1. Remove rear bumper. Removal And Installation.
2. Remove drafter (RH).
3. Rotate lock nut counterclockwise, and then remove lock nut.
4. Push fuel filler lid opener actuator behind the vehicle, while pushing the pawl.
5. Remove fuel filler lid actuator through the access hole used to remove the drafter. Disconnect harness connector.
6. Pull and remove lock and rod assembly forward, while pushing the pawls through the access hole used to remove the drafter.
7. Remove mounting screws, and then remove fuel filler lid.

INSTALLATION
Install in the reverse order of removal.

UNLOCK PROCEDURES

NOTE:

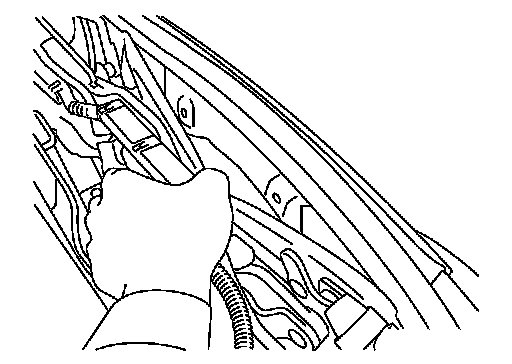

When fuel filler lid opener actuator is a defective operation, pull the rod to open fuel filler lid.

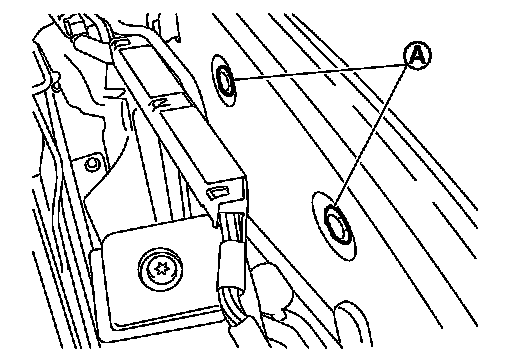

1. Remove rear trunk finisher (RH) mounting clips (A).





2. Pull up rear trunk finisher (RH).

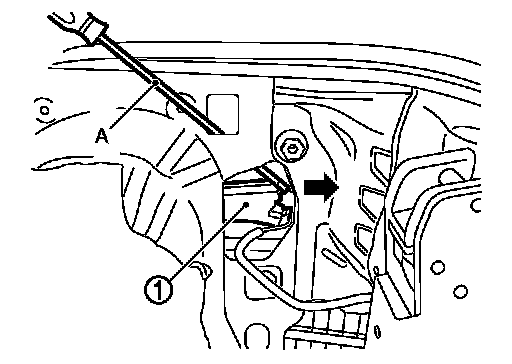

3. Unlock fuel filler lid actuator (1) lock by pressing it toward rear of the vehicle using a flat-bladed screwdriver (A) [383 mm (15.079 in) length] through the slit as shown in the figure.
