Home >> Infiniti >> 2011 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Theft Alarm

Theft Alarm





DIAGNOSIS SYSTEM (BCM)


THEFT ALM : CONSULT-III Function (BCM - THEFT)

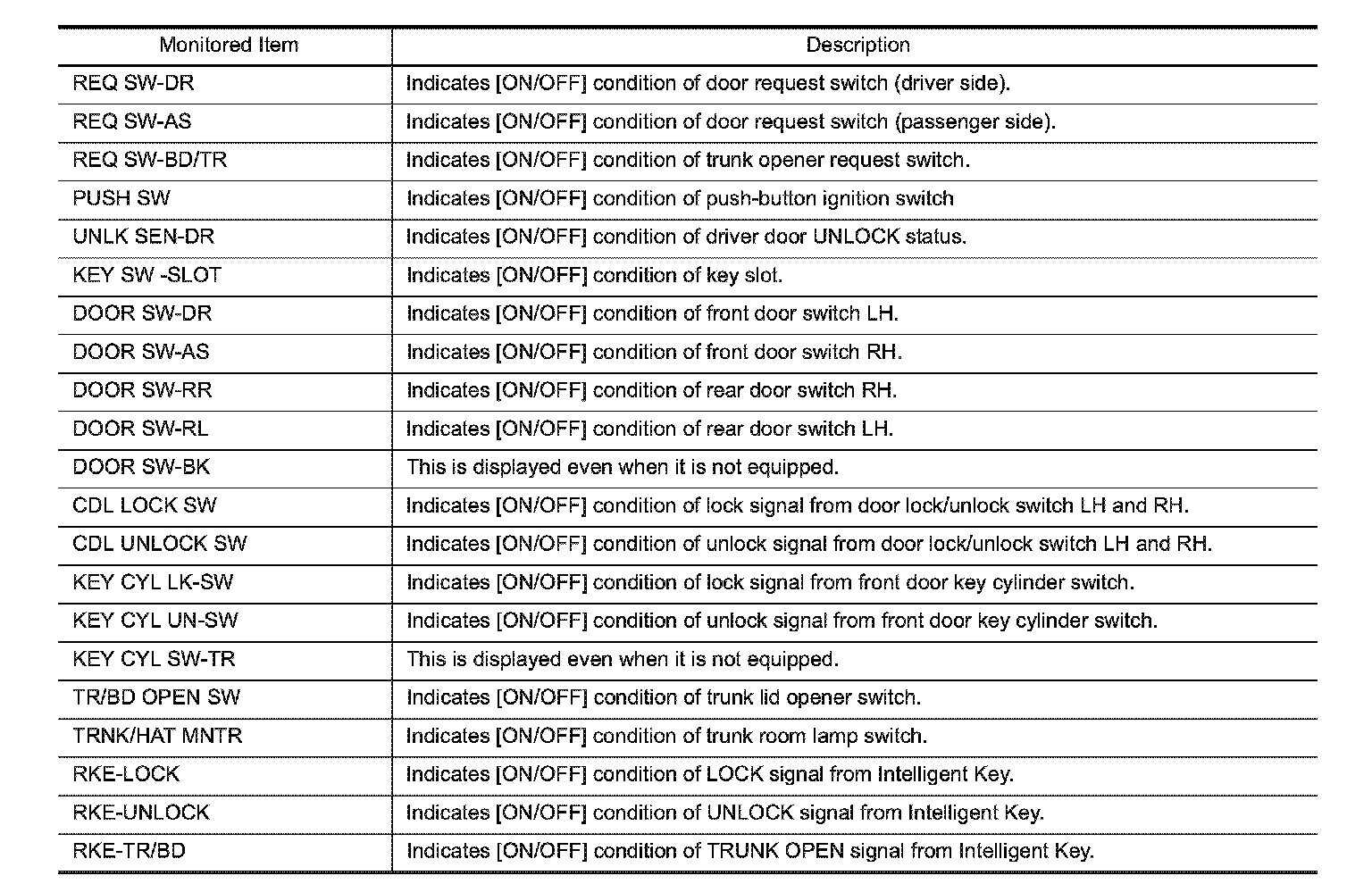

DATA MONITOR

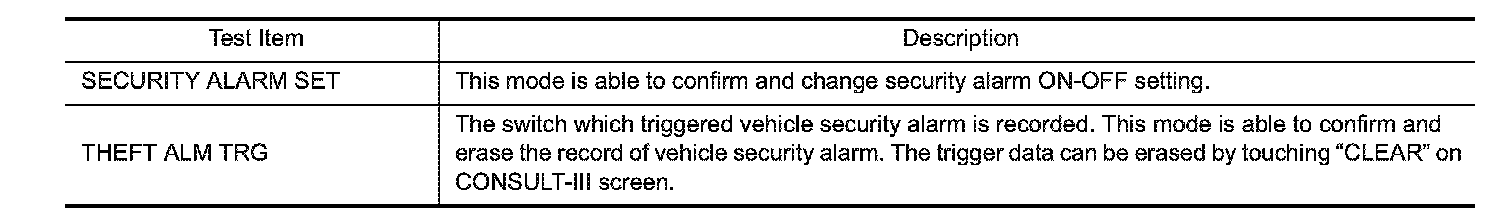

WORK SUPPORT

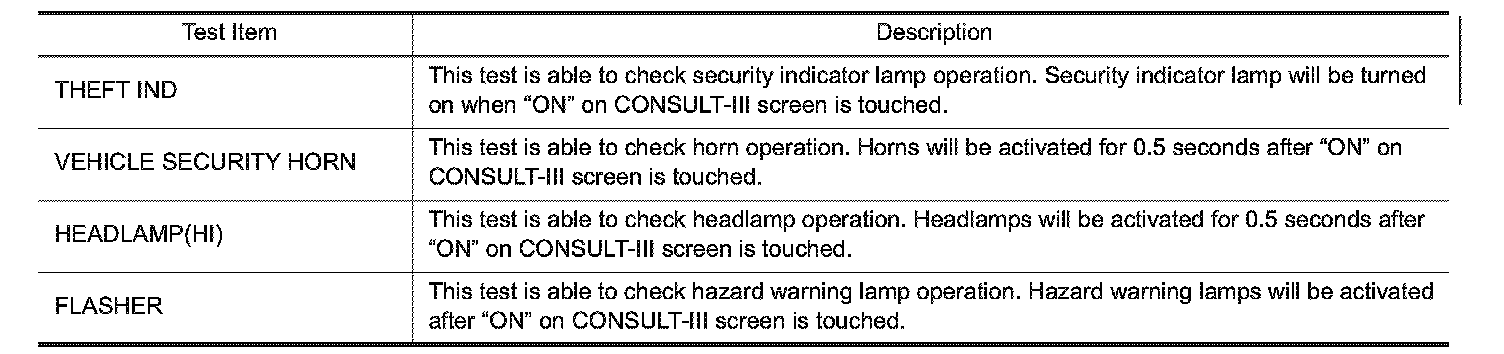

ACTIVE TEST
