Flasher
Flasher
DIAGNOSIS SYSTEM (
BCM
)
FLASHER : CONSULT-III Function (
BCM
- FLASHER)

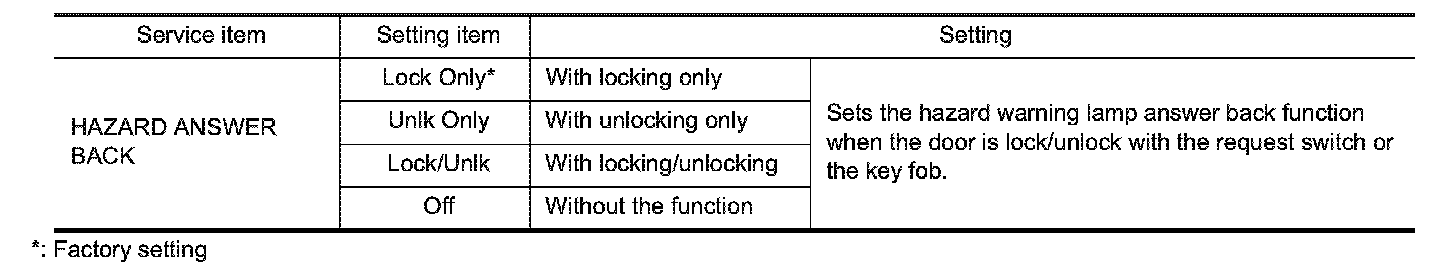

WORK SUPPORT

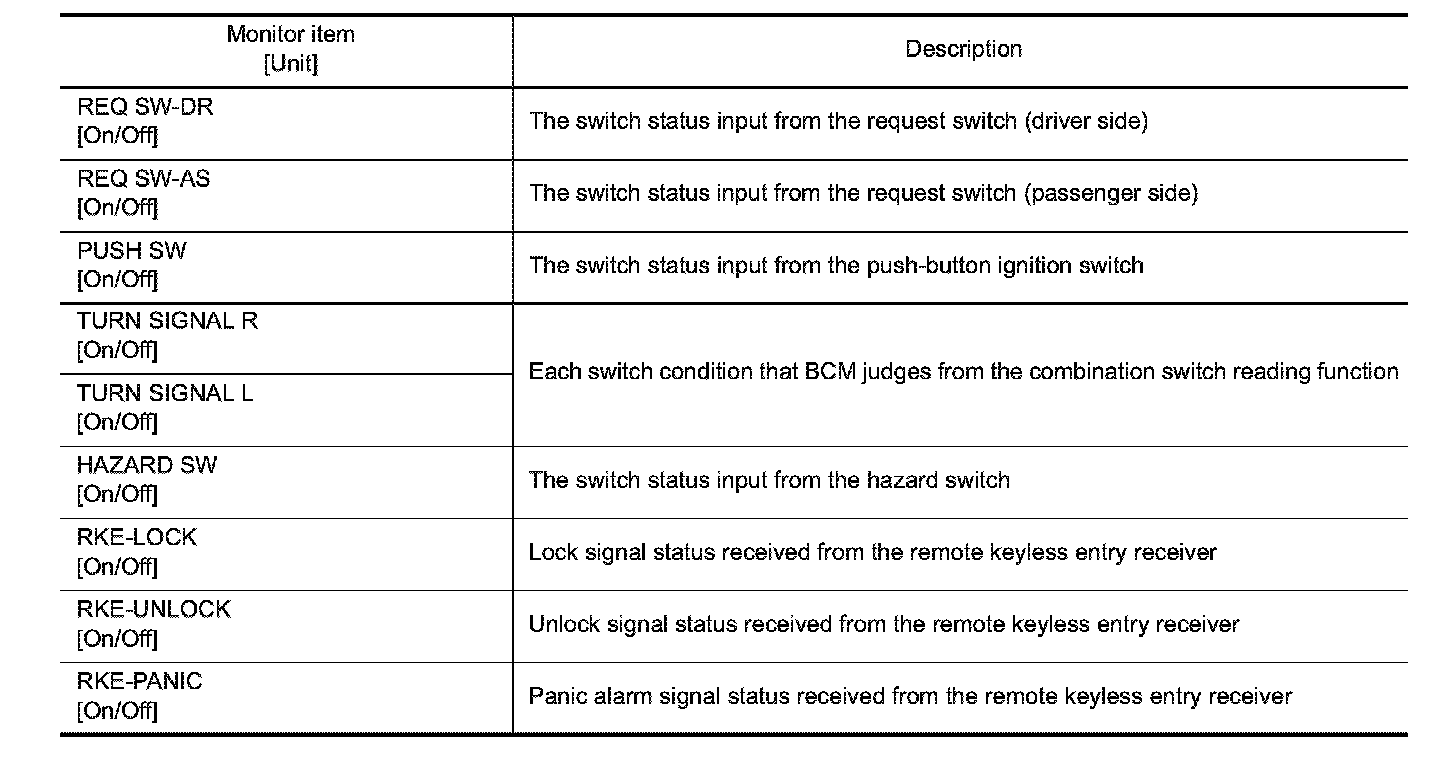

DATA MONITOR

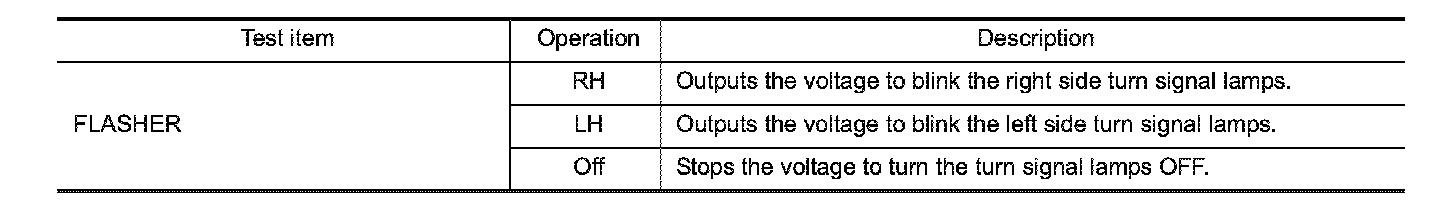

ACTIVE TEST
