System Diagram

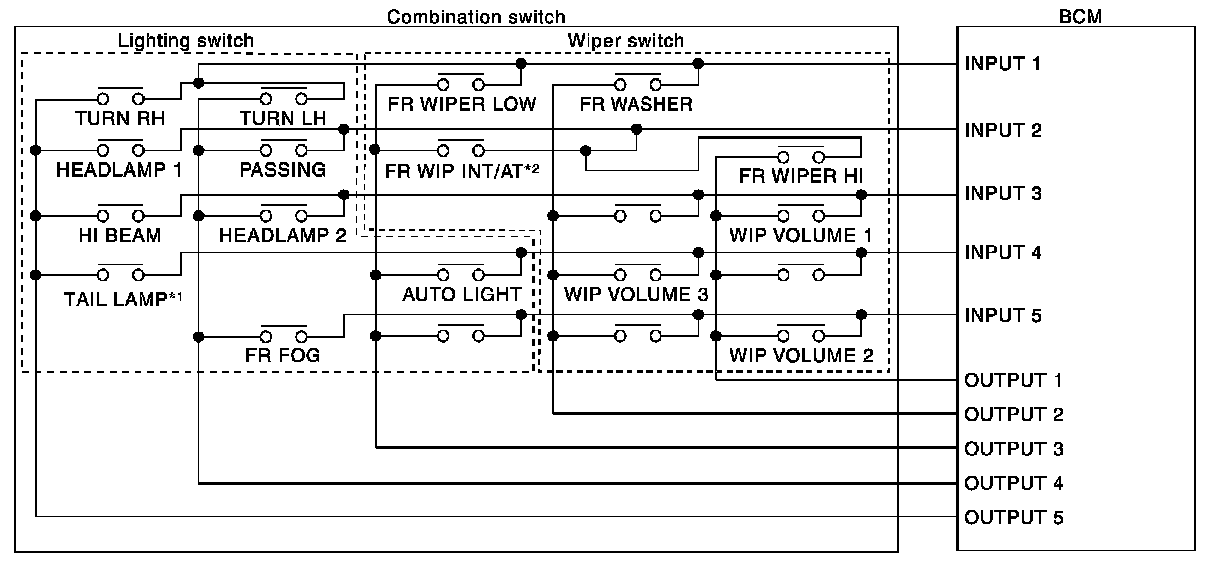

COMBINATION SWITCH READING SYSTEM


System Diagram







NOTE:
- *1: TAIL LAMP switch links lighting switch 1ST position.
- *2: "FR WIP INT/AT" is FR WIPER INT/AUTO.
