Removal And Installation Bose Audio Without Navigation

AV CONTROL UNIT


Removal and Installation


REMOVAL

CAUTION:
- Before replacing AV control unit, perform "READ CONFIGURATION" to save or print current vehicle specification. For details, Bose Audio Without Navigation.
- Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the ignition switch OFF

NOTE:
After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.
Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.
1. Remove display unit. Exploded View Bose Audio Without Navigation.
2. Remove AV control unit with a unified meter and A/C amp. as a single unit from the body.
3. Remove bracket screws, and then remove AV control unit.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Since AV control unit connector and unified meter and A/C amp. connector have the same form, be careful not to insert them wrongly.
- Be sure to perform "WRITE CONFIGURATION" when replacing AV control unit. For details, refer to AV-199, "Work Procedure".

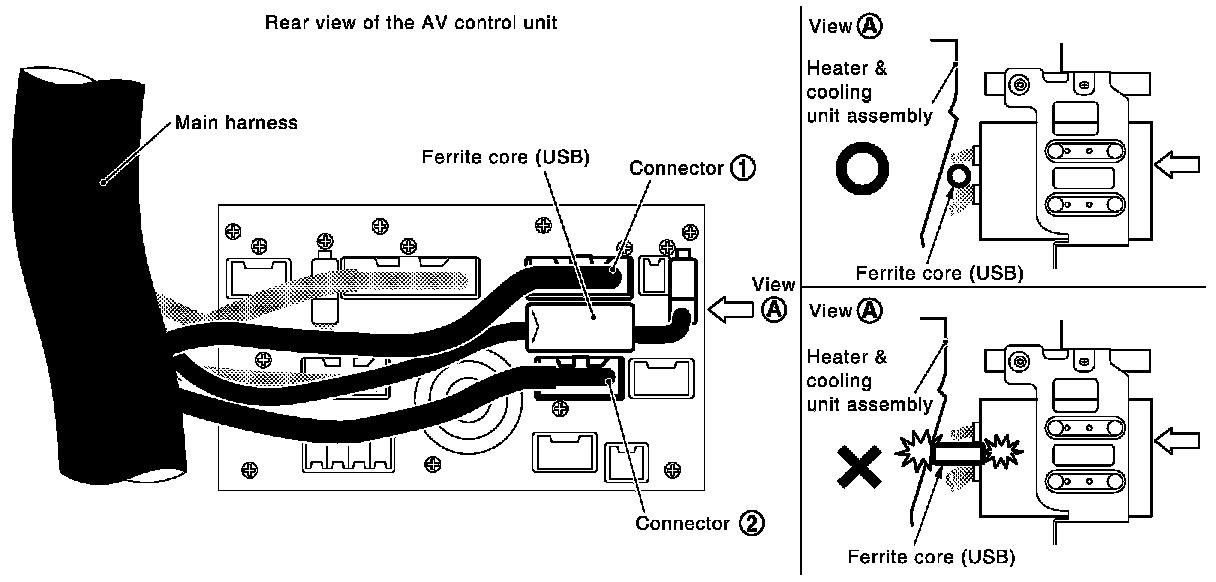

- Install AV control unit between connector (1) and connector (2) with the ferrite core (USB) orientated sideways to the vehicle. Incorrect installation may cause damage to the AV control unit.
