Removal And Installation Bose Audio Without Navigation

PRESET SWITCH


Removal and Installation


REMOVAL
1. Remove cluster lid C. (A/T models) or (M/T models).

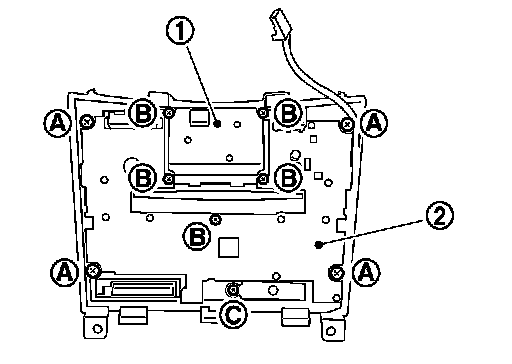

2. Remove preset switch (2) from cluster lid C. Remove preset switch screws (A), (B) and (C), remove preset switch (2) from cluster lid C.

1. Clock


INSTALLATION
Install in the reverse order of removal.

NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch to get caught in between AV control unit and preset switch.
