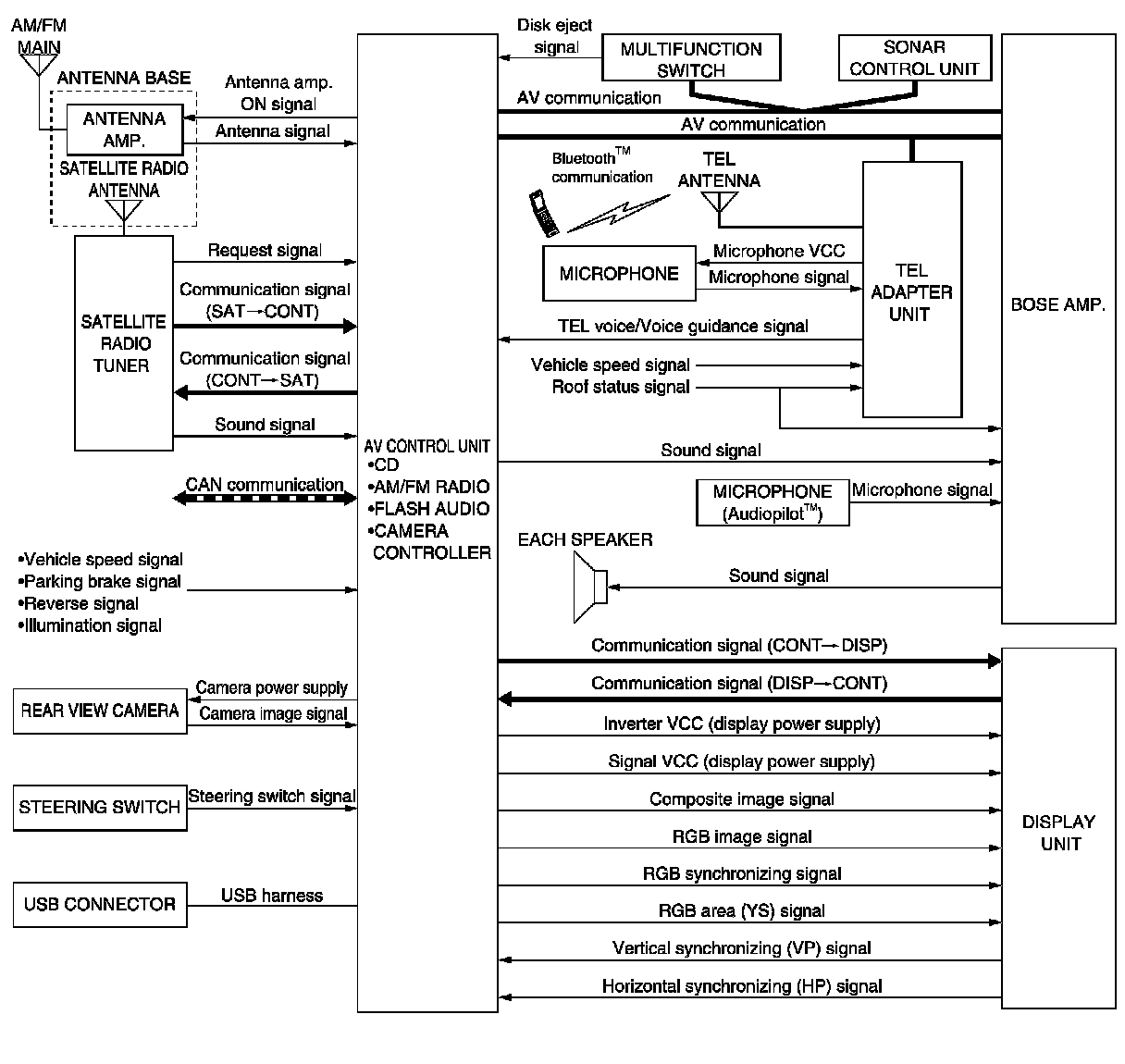

System Diagram Bose Audio Without Navigation

SYSTEM


MULTI AV SYSTEM : System Diagram







NOTE:
- The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

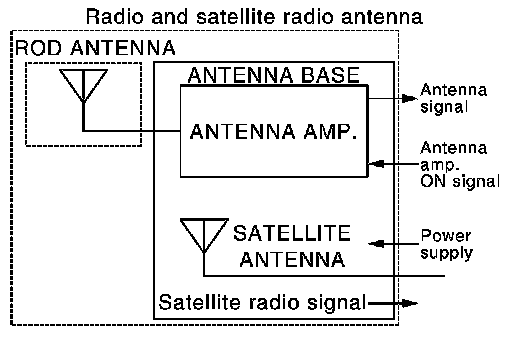

- An antenna base integrated with radio antenna and satellite radio antenna is adopted.
