Driver Seat Control Unit (With Automatic Drive Positioner)





DRIVER SEAT CONTROL UNIT (WITH AUTOMATIC DRIVE POSITIONER)


Reference Value

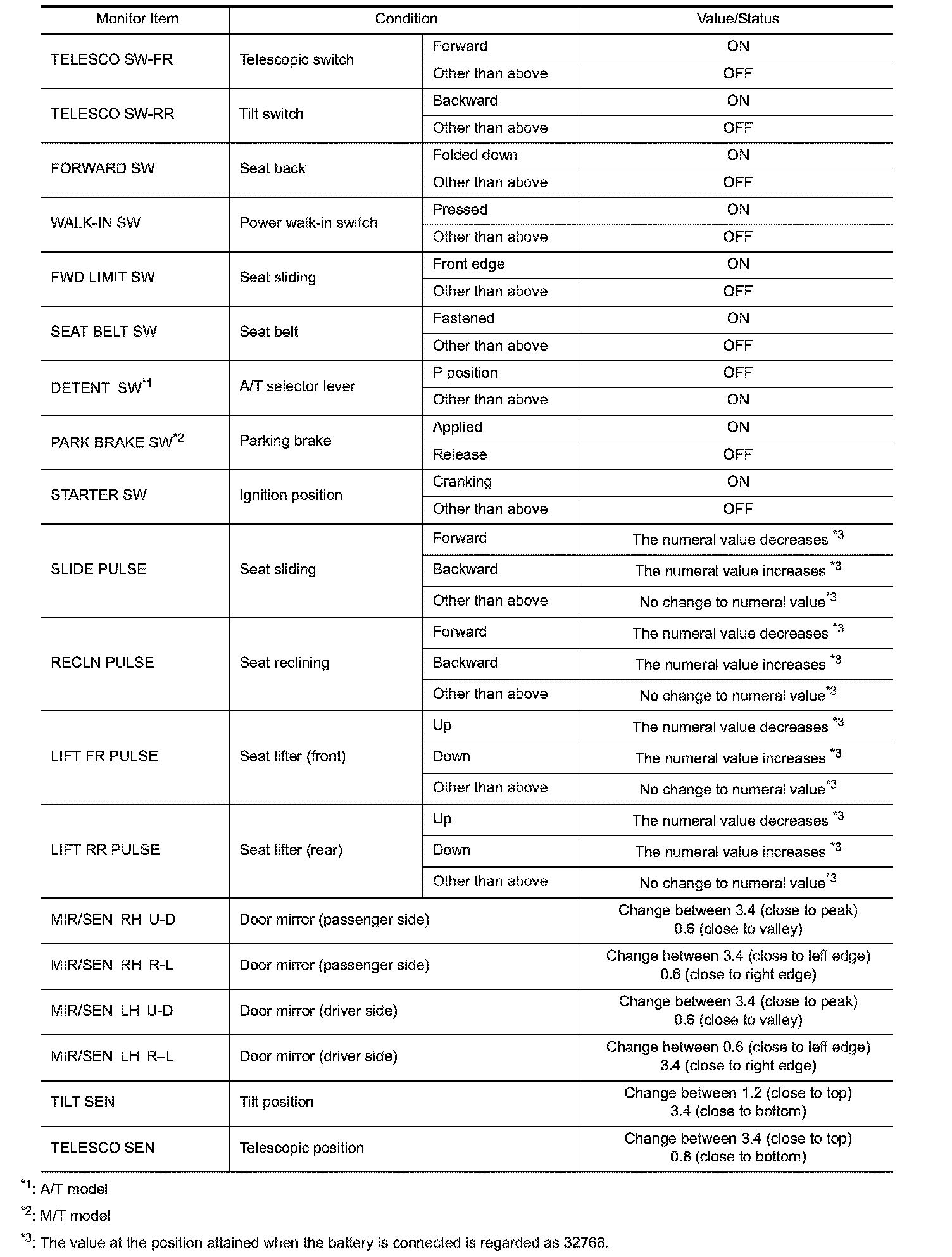

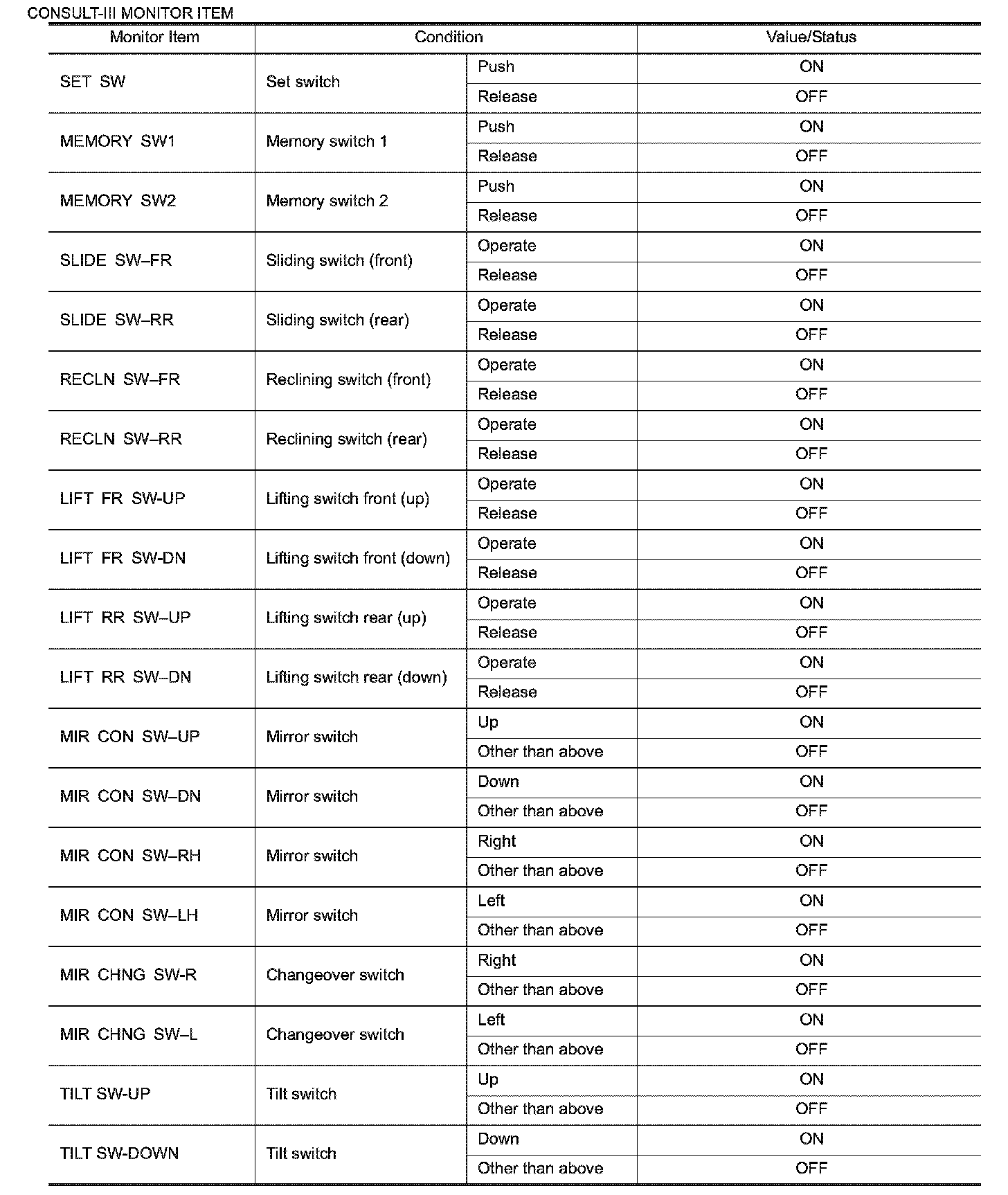

VALUES ON THE DIAGNOSIS TOOL











TERMINAL LAYOUT

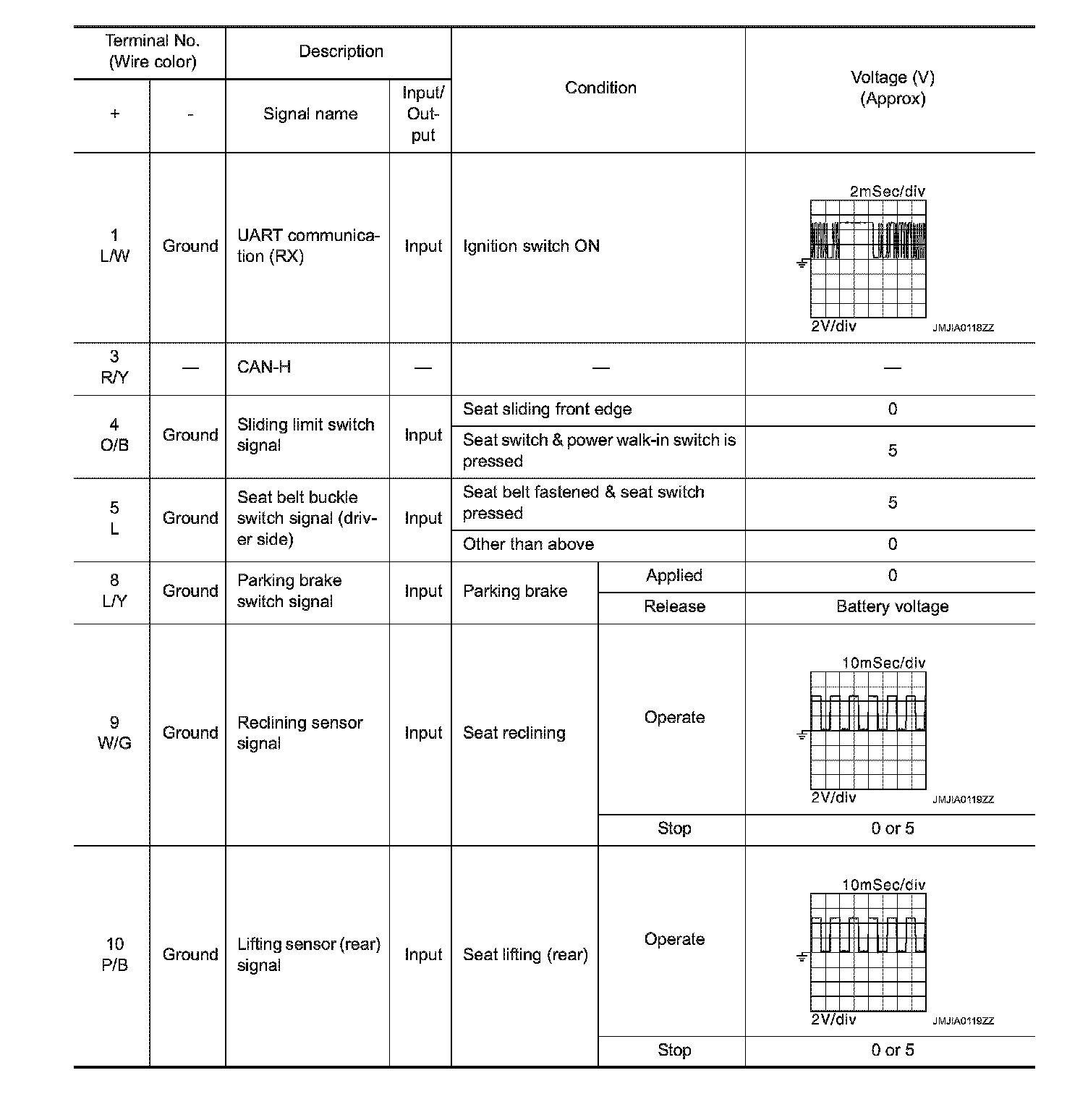

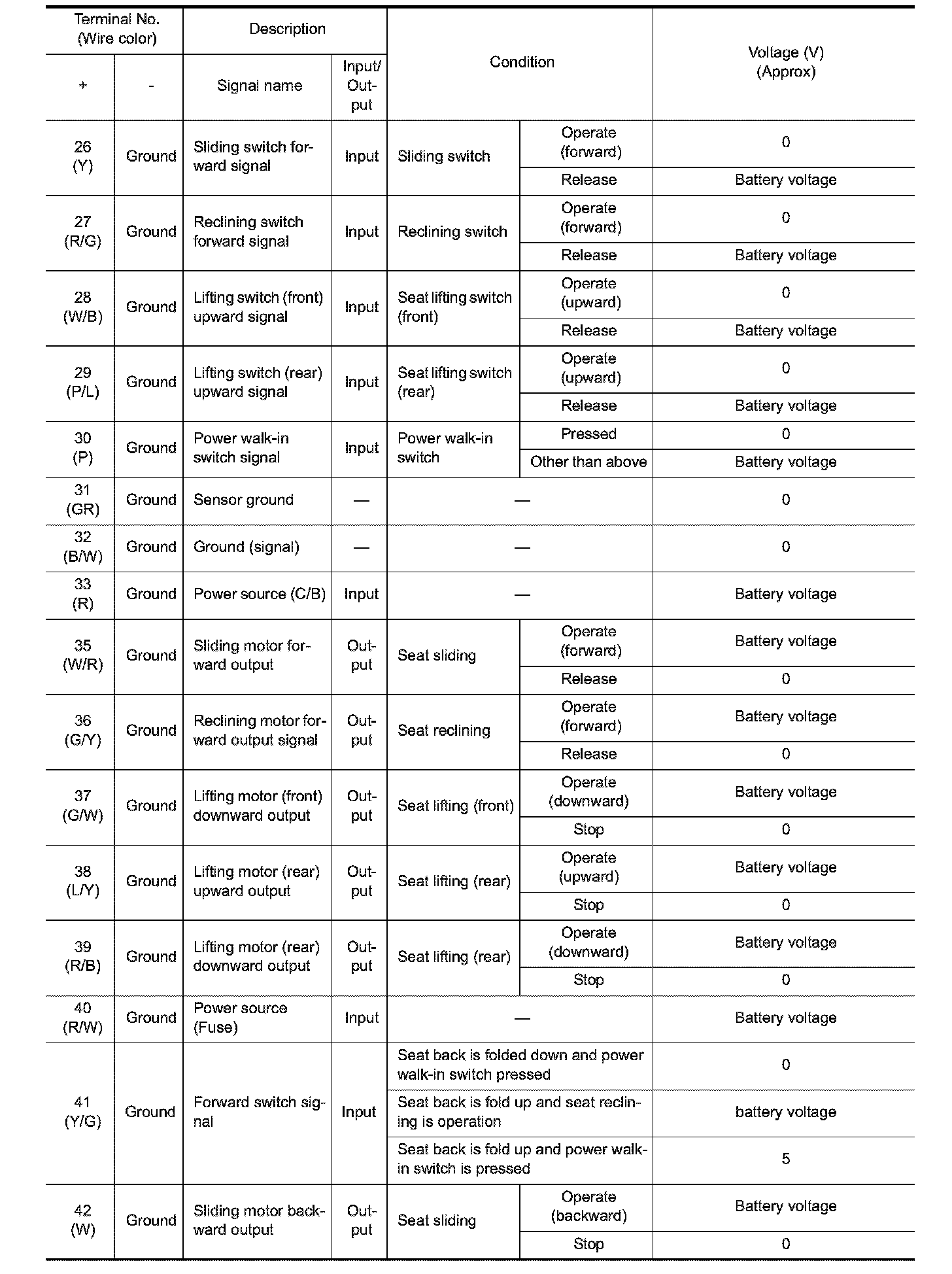

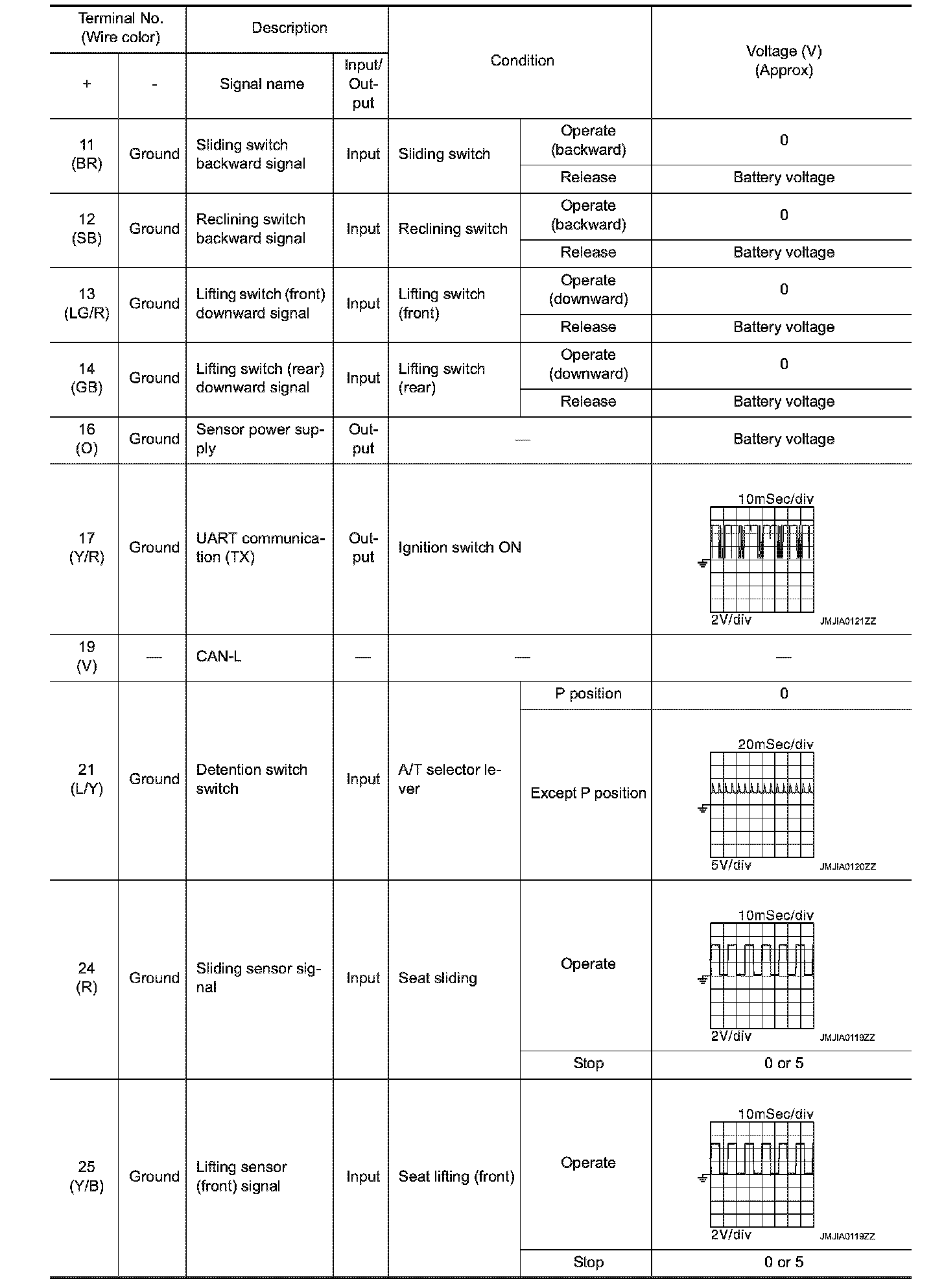

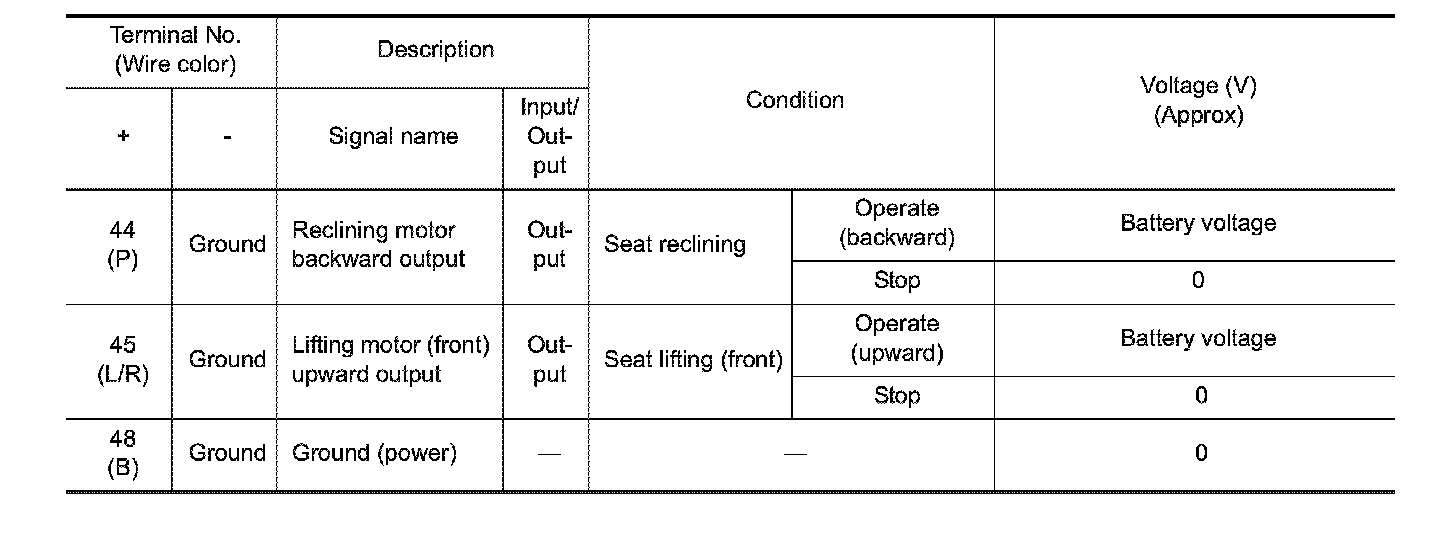

PHYSICAL VALUES
