Removal And Installation Bose Audio

GPS ANTENNA


Removal and Installation


REMOVAL
1. Remove instrument panel. (A/T models) or Exploded View M/T Models, "M/T
MODELS : Exploded View" (M/T models).

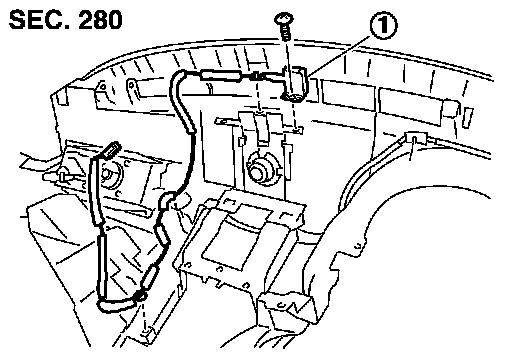

2. Remove GPS antenna (1) from instrument panel.

INSTALLATION
Install in the reverse order of removal.
