Sonar Control Unit





SONAR CONTROL UNIT


Reference Value

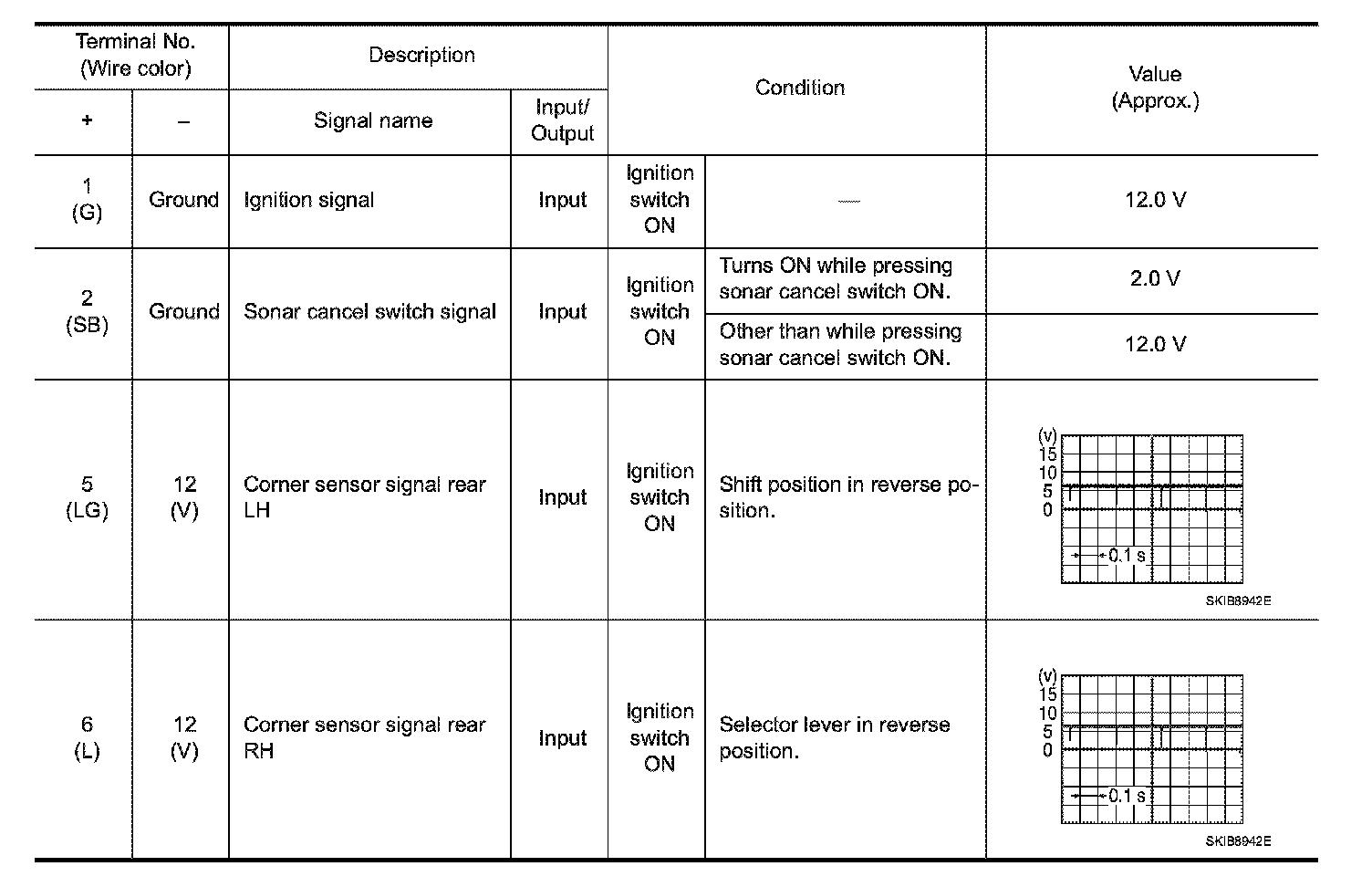

VALUES ON THE DIAGNOSIS TOOL

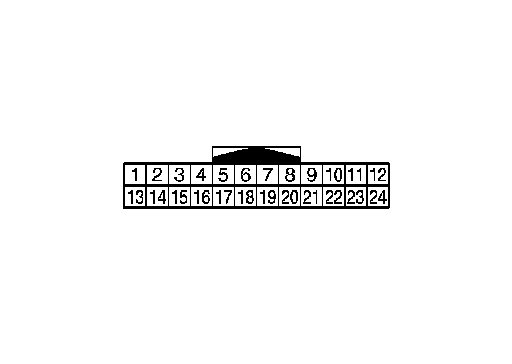

TERMINAL LAYOUT

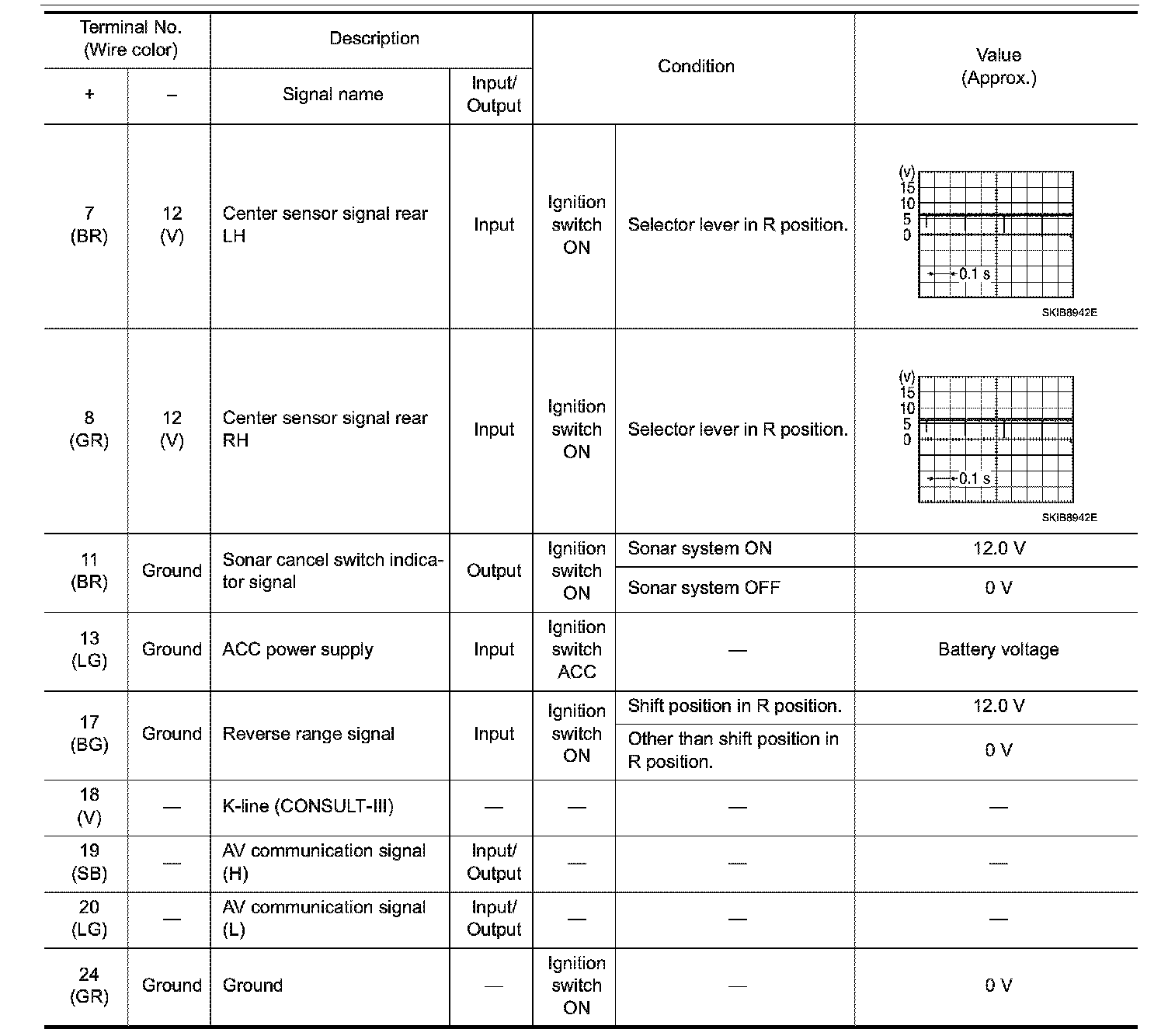

PHYSICAL VALUES
