Removal And Installation Base Audio Without Navigation

TEL ADAPTER UNIT


Removal and Installation


REMOVAL
1. Remove trunk floor spacer RH. Exploded View.

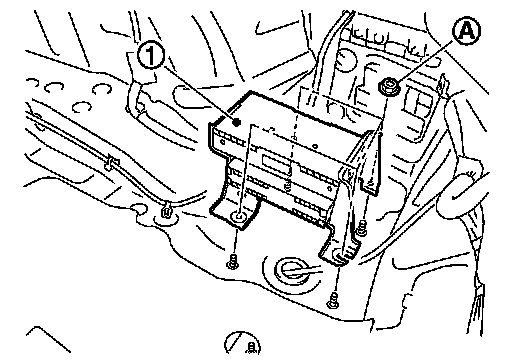

2. Remove nuts (A) from the trunk room RH, and remove TEL adapter unit and satellite radio tuner (1) from trunk room side.

INSTALLATION
Install in the reverse order of removal.
