Horn Function

HORN FUNCTION





Description
Perform answer-back for each operation with horn.




Component Function Check
1.CHECK FUNCTION

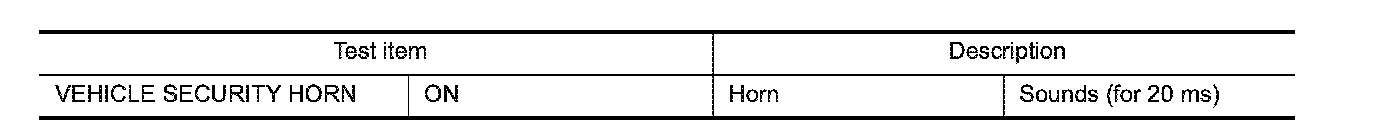

1. Select "VEHICLE SECURITY HORN" in "ACTIVE TEST" mode with CONSULT-III.
2. Check the horn (high/low) operation.





Is the operation normal?
YES - Horn function is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK HORN SWITCH
Check horn function with horn switch
Do the horns sound?
YES - GO TO 2.
NO - [1][2]Electrical Diagrams.
2.CHECK IPDM E/R POWER SUPPLY
1. Disconnect IPDM E/R connector.

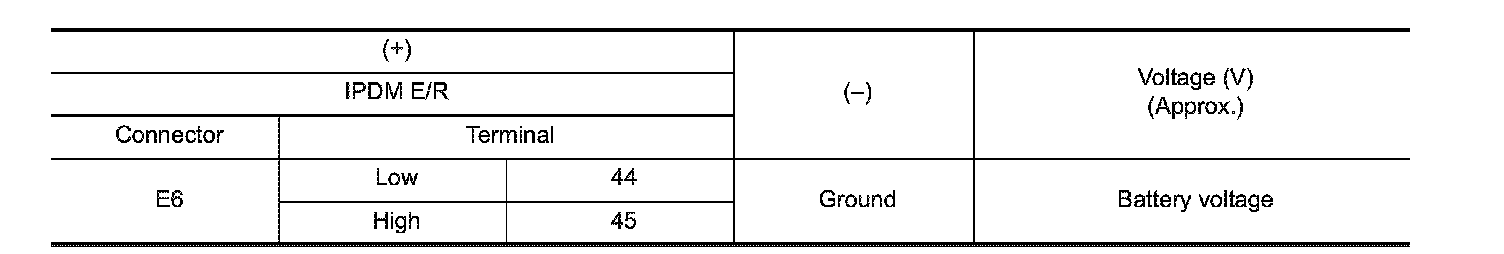

2. Check voltage between malfunctioning IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - Replace IPDM E/R. Service and Repair.
NO - GO TO 3.
3.CHECK IPDM E/R POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and horn relay connector.

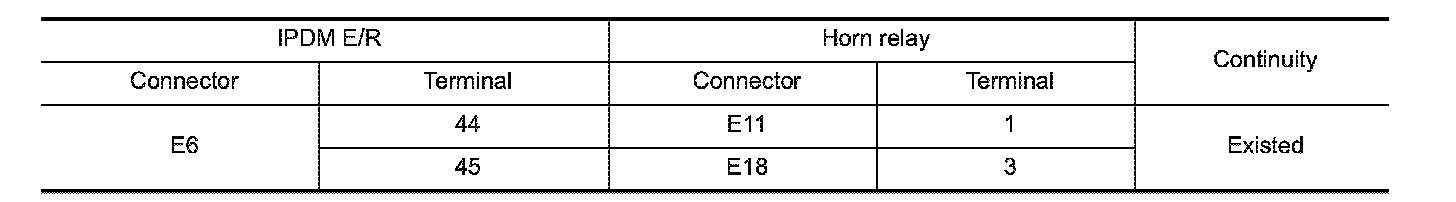

3. Check continuity between IPDM E/R harness connector and malfunctioning horn relay harness connector.

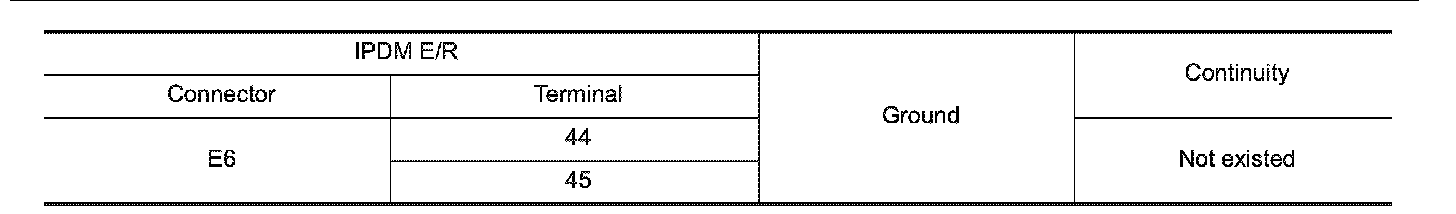

4. Check continuity between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
Is the inspection result normal?
- INSPECTION END
