Headlamp Function

HEADLAMP FUNCTION





Description
Headlamp lighting when vehicle security system is alarm phase.




Component Function Check
1.CHECK FUNCTION

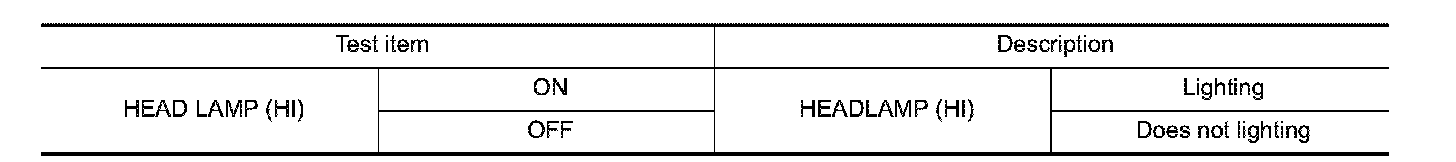

1. Perform "HEAD LAMP(HI)" in the "ACTIVE TEST" mode using CONSULT-III.
2. Check headlamp operation.





Is the inspection result normal?
YES - INSPECTION END
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK HEADLAMP OPERATION
SEE Component Function Check.
Is the inspection result normal?
YES - GO TO 2.
NO - repair or replace the malfunctioning parts.
2.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
