System Diagram





INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

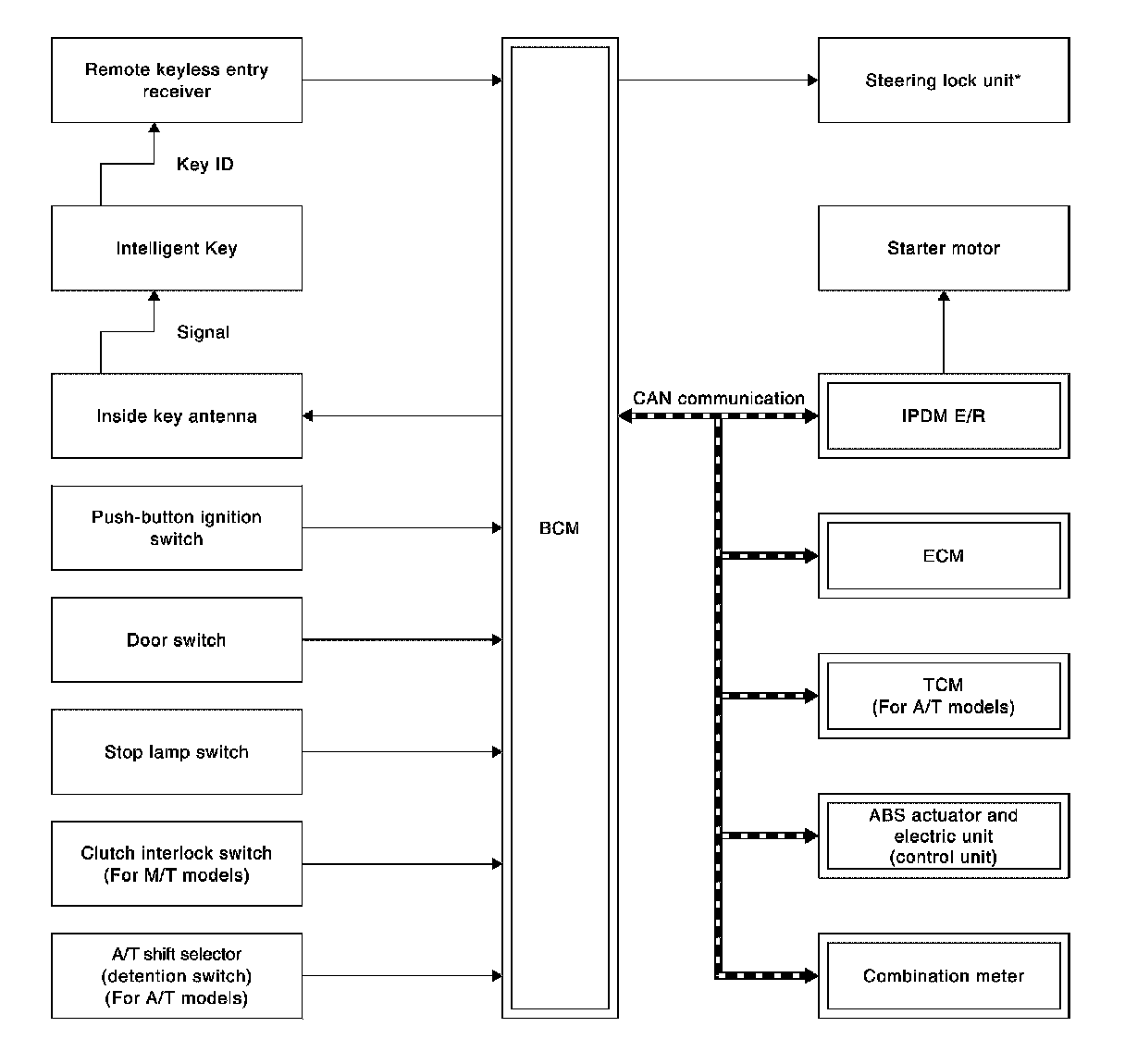

System Diagram






*: Models with steering lock unit
