Exploded View Bose Audio With Navigation
Exploded View Bose Audio With Navigation

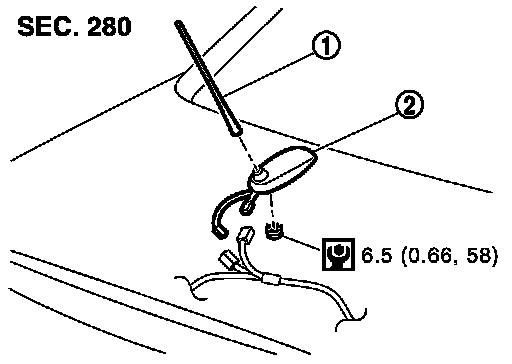

ANTENNA BASE
Exploded View
1. Antenna rod
2. Antenna base
Key to Symbols
for symbols in the figure.
