Bose Audio Without Navigation

U190F, U1912 DOOR WOOFER





DTC Logic

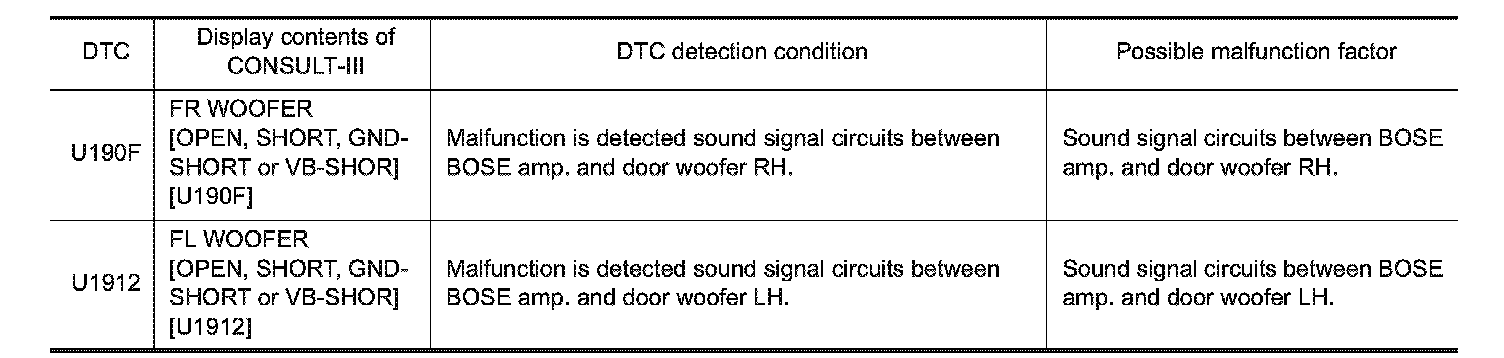

DTC DETECTION LOGIC









Diagnosis Procedure
1.PERFORM THE SELF-DIAGNOSIS
1. Delete the "self-diagnosis" results of "MULTI AV". Turn ignition switch OFF.
2. Turn ignition switch ON. perform the self-diagnosis again.
3. Check that the DTC is detected again.
Is any DTC detected?
YES�1 - U1901F Check harnesses between BOSE amp. and door woofer RH.
YES�2 - U19012 Check harnesses between BOSE amp. and door woofer LH.
NO - Refer to GI section. Intermittent Incident.
