Bose Audio Without Navigation

U190C AUTOPILOT(TM) MICROPHONE

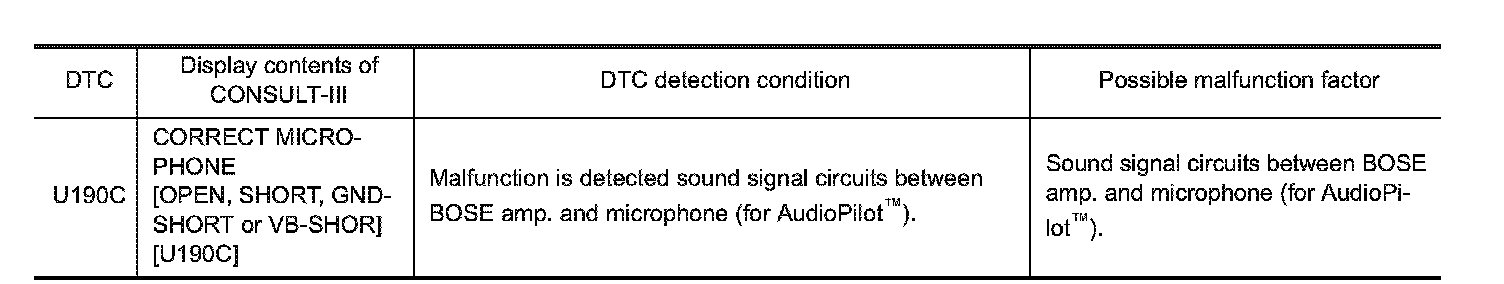

DTC Logic









Diagnosis Procedure
1.CHECK CONTINUITY BETWEEN BOSE AMP. AND MICROPHONE FOR AUTOPILOT(TM) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BOSE amp. connector and microphone for AudioPilotTM connector.

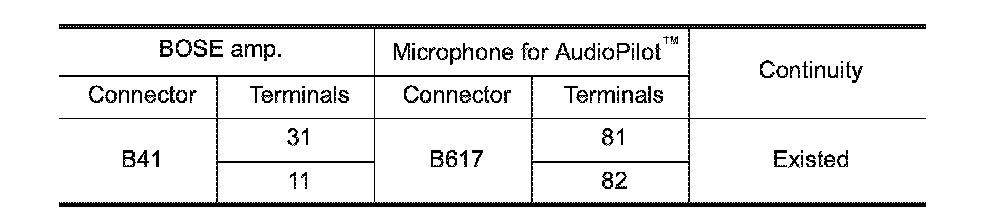

3. Check continuity between BOSE amp. harness connector and microphone for AudioPilotTM harness connector.

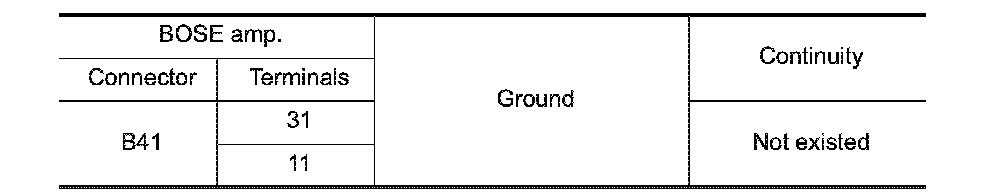

4. Check continuity between BOSE amp. harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair harness or connector.
2.CHECK MICROPHONE SIGNAL
1. Connect BOSE amp. connector and microphone for AudioPilotTM connector.

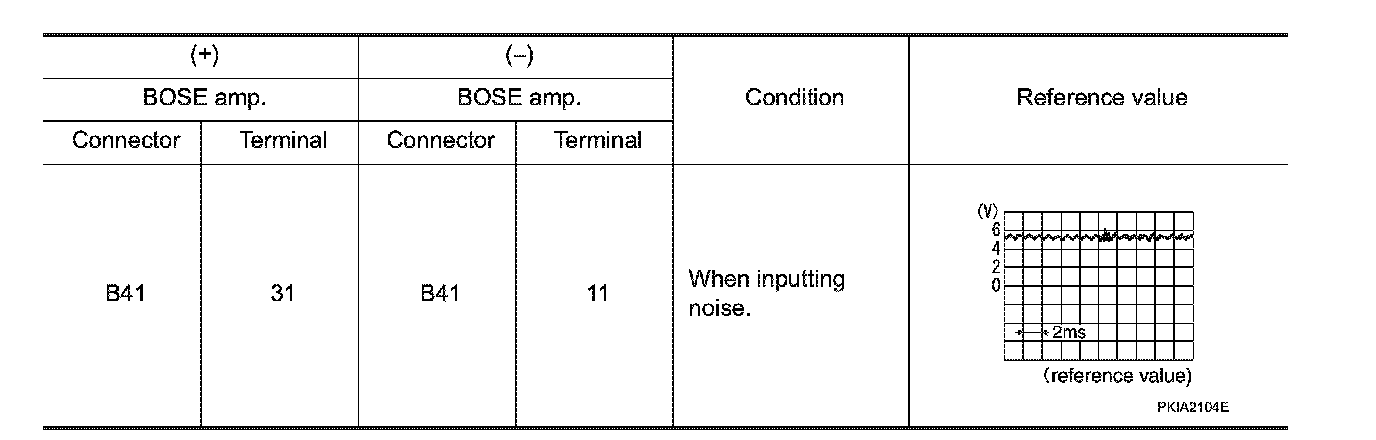

2. Check signal between BOSE amp. harness connector.





Is the inspection result normal?
YES - Replace BOSE amp. Exploded View Bose Audio Without Navigation.
- Replace microphone for AudioPilotTM. Exploded View Bose Audio Without Navigation.
NO
