U121A

U121A AV CONTROL UNIT

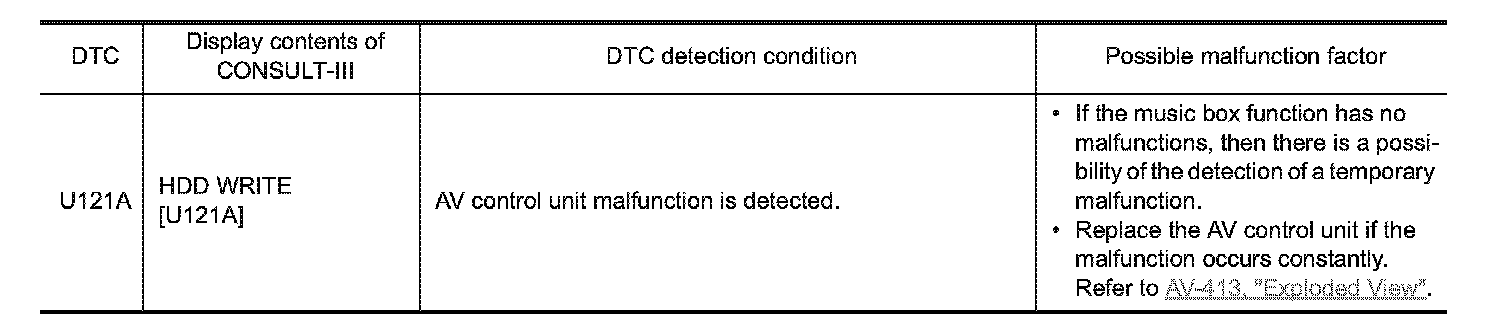

DTC Logic









Diagnosis Procedure
1.CHECK MUSIC BOX FUNCTION
Is music box function normal?
YES - Malfunction may be detected transitory.
NO - Replace AV control unit. Exploded View Bose Audio With Navigation.
