Roof Control

U1010 CONTROL UNIT (CAN)





DTC Logic

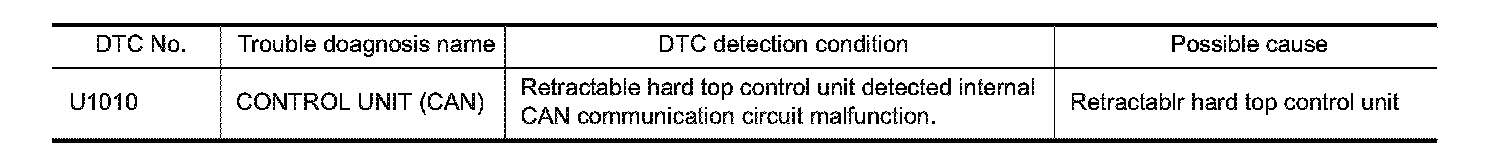

DTC DETECTION LOGIC









Diagnosis Procedure
1.REPLACE BCM
When DTC "U1010" is detected, replace retractable hard top control unit.
- Replace retractable hard top control unit. Service and Repair.
