Meter System

U1010 CONTROL UNIT (CAN)





Description
Initial diagnosis of unified meter and A/C amp.




DTC Logic

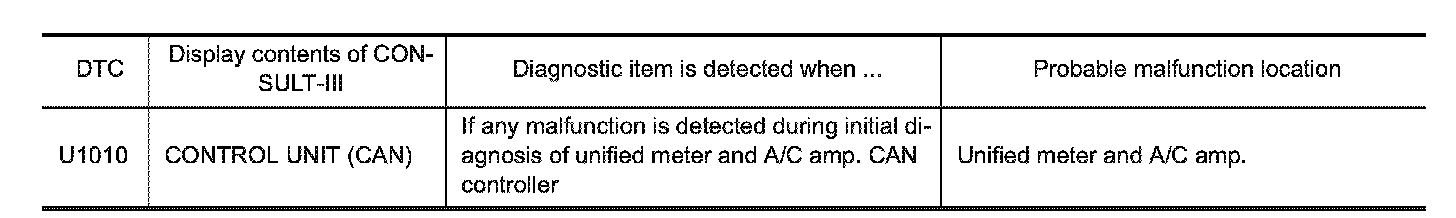

DTC DETECTION LOGIC









Diagnosis Procedure
1.REPLACE UNIFIED METER AND A/C AMP.
When DTC "U1010" is detected, replace unified meter and A/C amp.
- INSPECTION END
