U1000 CAN COMM CIRCUIT





Description
CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Modern vehicle is equipped with many electronic control unit, and each control unit shares information and links with other control units during operation (not independent). In CAN communication, control units are connected with 2 communication lines (CAN-H, CAN-L) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.




DTC Logic

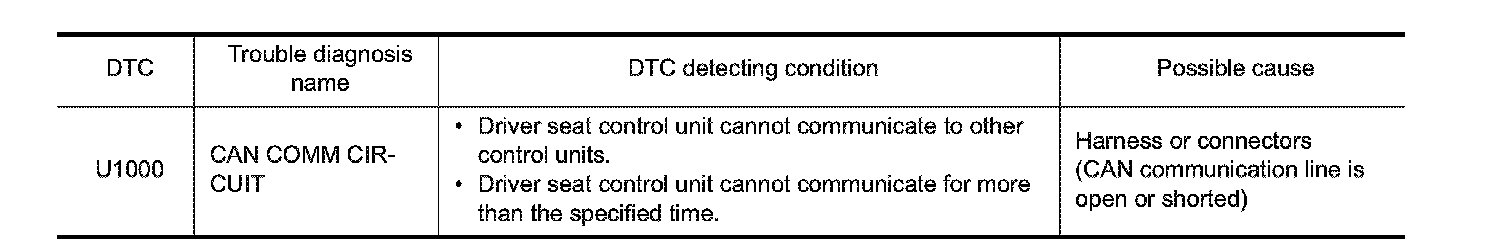

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.STEP 1
Turn ignition switch ON and wait for 3 seconds or more.
- GO TO 2.
2.STEP 2
Check "Self Diagnostic Result" using CONSULT-III.
Is the DTC detected?
YES - Perform diagnosis procedure. SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
Trouble Diagnosis Flow Chart.




Special Repair Requirement
Special Repair Requirement.
