Vehicle Speed Signal

U0415 VEHICLE SPEED





Description
U0415 is displayed if any unusual condition is present in the reception status of the vehicle speed signal from the ABS actuator and electric unit (control unit).




DTC Logic

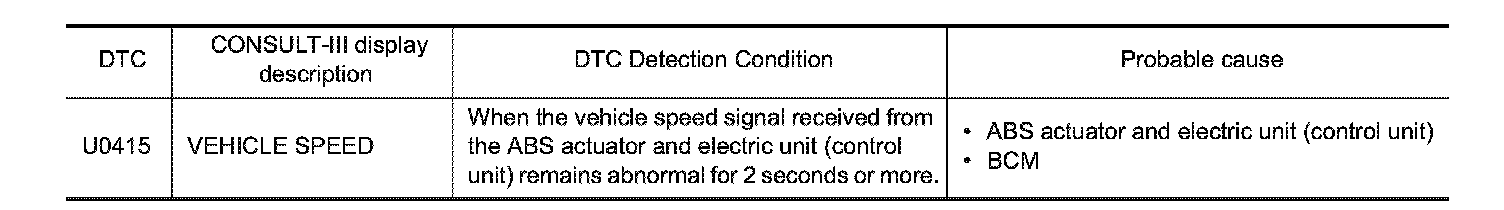

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC CONFIRMATION
1. Erase the DTC.
2. Turn ignition switch OFF.
3. Perform the "Self Diagnostic Result" of CONSULT-III, when passed 2 seconds or more after the ignition switch is turned ON.
Is any DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAG RESULTS
Perform "Self-Diagnostic Result" of ABS actuator and electric unit (control unit) with CONSULT-III. Scan Tool Testing and Procedures.
Is any DTC detected?
YES - Repair or replace the malfunctioning part.
NO - Replace BCM. Removal And Installation.
